Choosing the right mold type is a critical decision in plastic injection molding, as it directly affects production efficiency, cost per part, and overall product quality. Manufacturers often face the question: should they use a Single-Cavity Mold or a Multi-Cavity Mold? Each mold type offers distinct advantages and trade-offs, and understanding these differences is essential for optimizing manufacturing processes and achieving consistent, high-quality results.
Table of Contents
| 1. What is a Single-Cavity Mold? |
| 2. What is a Multi-Cavity Mold? |
| 3. Comparison: Single vs Multi-Cavity Mold |
| 4. When to Choose Single-Cavity or Multi-Cavity |
| 5. Conclusion |
| 6. FAQ |

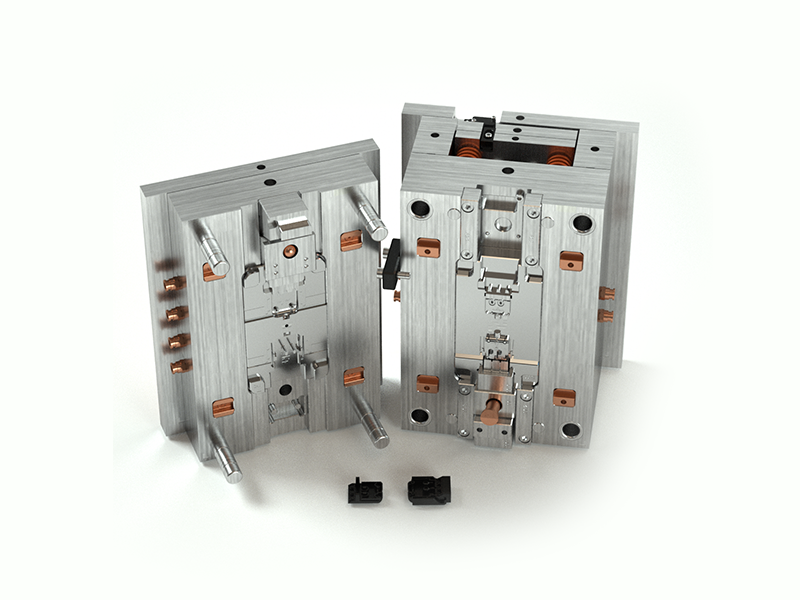

A Single-Cavity Mold is an injection mold that contains only one cavity, producing a single part per cycle. This mold type is ideal for situations where precision, detail, and quality control are more important than sheer output. Because there is only one cavity, manufacturers can focus on producing each part with the highest level of accuracy, making it a popular choice for prototypes, custom components, and small-batch production.
Single-cavity molds provide manufacturers with control and flexibility. For example, a company designing a new medical device might use a single-cavity mold to create a highly detailed connector or surgical component. Producing one part at a time allows engineers to inspect and adjust the mold between cycles, ensuring every component meets strict tolerances.
Other advantages include:
High precision: Each cycle focuses on one part, ensuring tight tolerances and consistent quality.
Simpler tooling and maintenance: With only one cavity, the mold is easier to manufacture, clean, and adjust.
Ideal for prototypes and custom parts: Perfect for testing new designs or producing specialized items before scaling up production.
Reduced risk of defects: Fewer variables in the molding process make it easier to identify and correct potential issues.
Despite its advantages, single-cavity molds are not the best choice for high-volume production. Producing one part per cycle means longer production times, which can result in higher unit costs when scaling up. For instance, creating thousands of identical consumer electronics enclosures using a single-cavity mold would take significantly longer—and cost more—than using a multi-cavity mold.

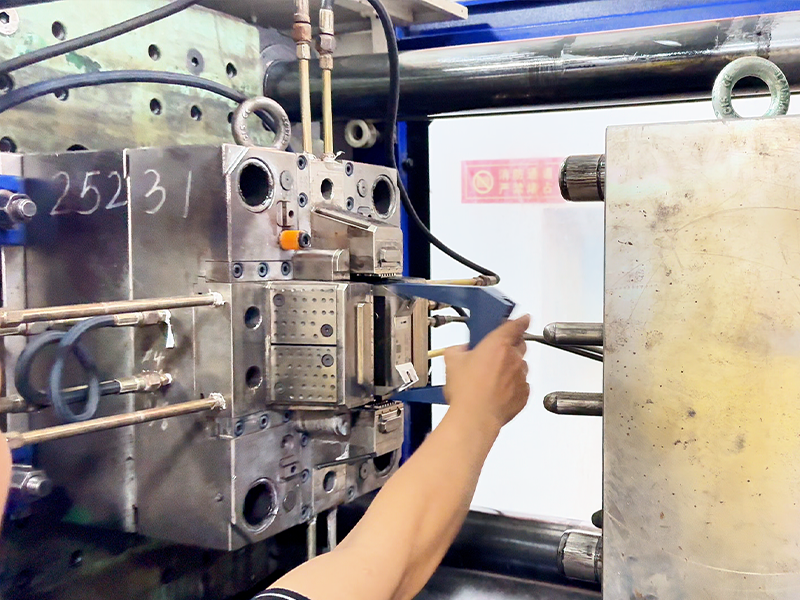

Single-cavity molds are ideal for applications that require precision, attention to detail, and flexibility. Some common examples include:
Prototypes and product testing, where rapid iteration is needed.
High-precision components for medical, automotive, or electronics applications.
Specialized or custom items, such as collectible display pieces, intricate toy parts, or limited-run custom housings for electronic devices.
By focusing on quality over quantity, single-cavity molds allow manufacturers to produce parts with consistent accuracy, making them indispensable in industries where detail and reliability are paramount.

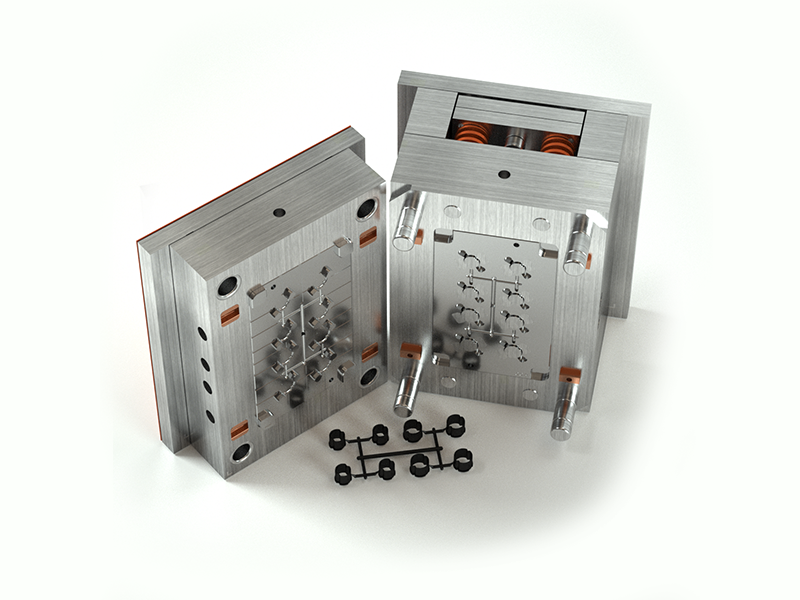

A Multi-Cavity Mold contains multiple identical cavities within a single mold, allowing it to produce several parts with each injection cycle. This design is ideal for manufacturers aiming to increase production volume while maintaining consistent quality. By producing multiple identical components at once, multi-cavity molds significantly reduce the unit cost and cycle time, making them the preferred choice for large-scale manufacturing.
Multi-cavity molds are particularly valuable when high output and consistency are critical. For example, in the automotive industry, small plastic clips, dashboard components, or connector housings are often produced in hundreds or thousands per day. Using a multi-cavity mold allows these parts to be manufactured simultaneously, ensuring uniformity and meeting tight production schedules.
Other advantages include:
Reduced cycle time: Produces multiple parts in a single injection, accelerating overall production.
Lower unit cost for large runs: Although the mold itself is more expensive, the cost per part decreases dramatically with higher volumes.
Consistent quality: Identical cavities ensure that all parts produced in the same cycle meet the same specifications.
Optimized space and resources: Reduces the need for additional machines or setups for high-volume production.
However, multi-cavity molds also come with challenges. The initial tooling costs are higher due to the complexity of machining multiple cavities. Maintaining uniformity across all cavities can be difficult; any imbalance in cooling, injection pressure, or material flow may result in defects like short shots, warping, or inconsistent color.
For instance, a manufacturer producing a 16-cavity mold for consumer electronics housings must carefully balance the flow of molten plastic. If one cavity receives slightly more or less material than the others, the parts could differ in thickness or fit, requiring rework or scrapping.
Moreover, the mold maintenance and troubleshooting are more complex. Each cavity must be inspected, cleaned, and adjusted regularly to prevent uneven wear or quality issues, which can increase downtime if not managed carefully.

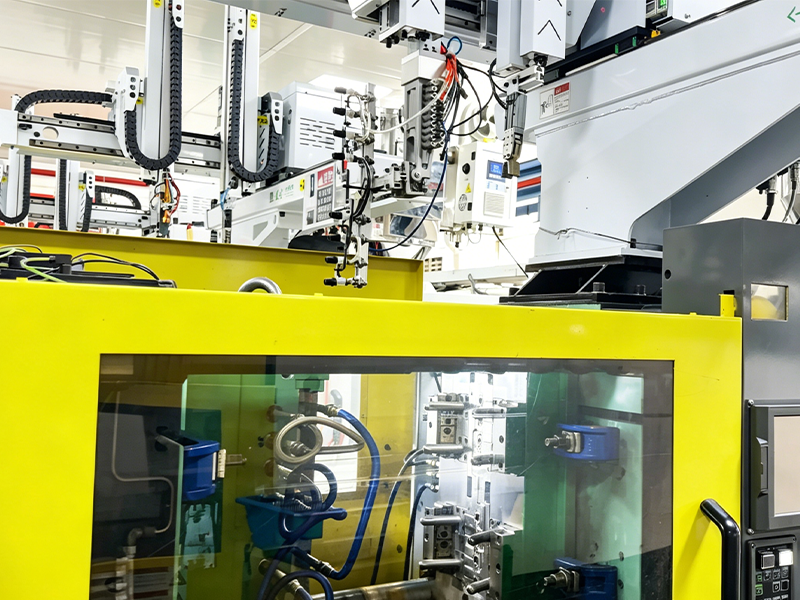

Multi-cavity molds are widely used in industries where high-volume, standardized parts are needed. Examples include:
Consumer electronics: identical enclosures, connectors, or buttons produced in hundreds per day.
Automotive: clips, fasteners, and small plastic components that must meet precise tolerances.
Food packaging: caps, containers, or trays that need large, uniform batches.
Household products: items like plastic hooks, knobs, or small storage containers where identical parts are required.
By combining efficiency with consistency, multi-cavity molds are the backbone of large-scale injection molding operations, ensuring both speed and quality in mass production.
When deciding between a Single-Cavity Mold and a Multi-Cavity Mold, the choice comes down to production volume, cost, and part complexity. Each mold type serves different manufacturing needs, and understanding their key differences is crucial for efficient injection molding.
Feature | Single-Cavity Mold | Multi-Cavity Mold |
Production per Cycle | 1 part | Multiple parts (2–128) |
Initial Tooling Cost | Low | High |
Unit Cost | Higher for large runs | Lower for large runs |
Design Complexity | Simple | Complex (requires cavity balancing, flow control) |
Maintenance | Easier, fewer variables | More frequent, multiple cavities to monitor |
Best Use Case | Prototypes, custom or high-precision parts | Large-scale, standardized production |
By weighing these factors carefully, manufacturers can maximize efficiency, minimize waste, and maintain consistent part quality—whether producing a handful of prototypes or thousands of components per day.
Choosing between a single-cavity (Single-Cavity) mold and a multi-cavity (Multi-Cavity) mold is a critical decision in plastic injection molding. This choice directly affects cost, production efficiency, quality consistency, and lead times. Understanding the characteristics and applications of each mold type is essential for project success. Here, we analyze the decision factors across six key dimensions and provide data-driven references based on engineering experience.
4.1.1 Low-volume production (<5,000 pcs/month) → Single-cavity molds are preferred：
Low investment, lower risk, ideal for new product validation or high-end custom parts.
Typical applications: wearable medical device housings, small precision electronic components, high-end custom toys.
4.1.2 Medium-volume production (5,000–20,000 pcs/month)
Choice depends on part complexity, material properties, and production flexibility.
4.1.3 High-volume production (>20,000 pcs/month) → Multi-cavity molds excel.
Each cycle produces multiple parts (2–16+ cavities), significantly increasing output.
Typical applications: smartphone buttons, automotive interior components, food packaging, household plastic containers.
4.2.1 Single-cavity molds
Mold manufacturing cost is relatively low, typically $5,000–20,000 USD, depending on part size, complexity, and steel grade.
Unit cost per part is higher, suitable for low-volume or high-value parts.
4.2.2 Multi-cavity molds
Mold cost is higher, usually $20,000–100,000 USD, with complex cooling and gating systems.
Unit part cost is lower, saving 30%–50% in mass production, ideal for standardized or long-term orders.
Simple structure, shorter design and manufacturing cycle: standard parts usually 3–4 weeks, complex parts may take 5–6 weeks.
Complex design, requiring cavity balance, optimized cooling, and synchronized ejection, with typical development cycles of 6–12 weeks or longer.
Single-cavity molds can serve as a fast-track prototype solution when time-to-market is critical.
Single-cavity molds allow better control of warpage, flash, and dimensional deviation.
Each part can be fine-tuned for gate location, cooling channels, and ejection force to ensure high accuracy and consistency.
Multi-cavity molds increase output while maintaining dimensional consistency.
Typical parts: caps, clips, trays, food packaging components.
High-flow materials (PP, PE, ABS) → Multi-cavity molds are suitable for high-volume production, ensuring complete cavity fill and reducing short shots or voids.
Engineering plastics / flame-retardant / glass-fiber reinforced materials (PA66, PC+ABS, PBT, FR grades) → Recommend single-cavity or low-cavity molds.
High-gloss or transparent materials (PC, PMMA, PETG) → Single-cavity molds provide better optical quality control, avoiding weld lines, bubbles, or surface unevenness.
High-appearance parts (glossy, transparent, decorative surfaces) → Single-cavity molds ensure stable surface quality and color consistency.
Functional or non-visible parts → Multi-cavity molds are suitable, ensuring batch consistency and higher efficiency.
Choosing the right mold type is essential for achieving the best balance of quality, efficiency, and cost in Injection molding. Single-cavity molds provide precision and flexibility, ideal for prototypes, custom components, and small-batch production. Multi-cavity molds, on the other hand, are designed for high-volume production, delivering consistent parts quickly and cost-effectively. Depending on your project, a hybrid approach—starting with single-cavity molds and scaling to multi-cavity molds—can optimize both development and mass production.
For expert guidance on selecting the perfect mold for your project, contact Alpine Mold today. Our team specializes in single-cavity, multi-cavity, and family molds, providing tailored solutions to meet your production needs and ensure high-quality results.
A Three-Plate Mold is a type of injection mold with three plates instead of the traditional two. The extra plate separates the runners from the parts, which allows:
Automatic runner separation and ejection
Multiple gating points for better flow distribution in complex parts
Improved part quality for larger or intricate components
This mold is commonly used in automotive components, large consumer electronics, and parts that require multiple gates or complex geometries
Multi-Cavity Mold – Produces multiple identical parts per cycle. Great for mass-producing the same component efficiently.
Family Mold – Produces different but related parts in a single cycle, often needed for assembly-ready components.
Key differences:
Feature | Multi-Cavity Mold | Family Mold |
Part Type | Identical | Different, related |
Application | High-volume production | Assembly components, small batches |
Complexity | Moderate | High |
Changeover | Difficult | Easier for multiple part designs |
Molding can refer to various plastic and metal forming processes, including:
1. Injection Molding – For thermoplastics, producing detailed, high-volume parts.
2. Blow Molding – For hollow parts like bottles and tanks.
3. Compression Molding – For thermosets, rubber, or composite parts.
4. Extrusion Molding – For continuous profiles like tubes, pipes, and sheets.
5. Rotational Molding – For large hollow items, e.g., tanks, kayaks.
6. Transfer Molding – Similar to compression, but uses a plunger to force material into the mold cavity.
Each method is chosen based on part geometry, material type, production volume, and desired surface finish.
