Every successful injection molding project starts with the core of the mold—the cavity and the core. These two components don’t just shape the part; they directly impact its accuracy, durability, and overall quality. When the cavity and core are properly designed and manufactured, you can achieve consistent, high-precision parts; if not, it often results in defects, material waste, and costly production delays.
So, in this blog, we’ll take a closer look at mold cavity and core—what they are, how they differ, and how they work together to ensure stable and reliable production.
| 1. What is a Mold Cavity? |
| 2. What is a Mold Core? |
| 3. Difference Between Mold Cavity and Mold Core |
| 4. Materials for Mold Cores and Cavities |
| 5. Mold Cores and Cavities Manufacturing Process |
| 6. Design Considerations for Mold Cavity and Mold Core |
| 7. Common Defects Related to Mold Cavity and Mold Core |
| 8. Conclusion |
| 9. FAQ |

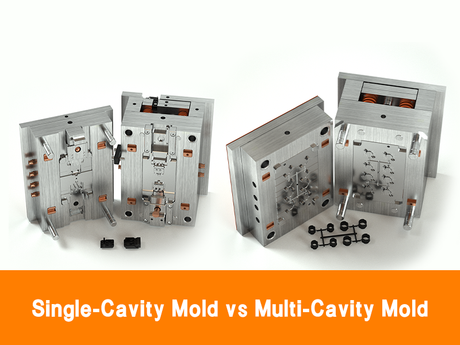

A mold cavity is the hollow space in a plastic injection mold where the molten plastic material flows and takes the shape of the final product. It is a critical part of injection molding because it directly affects the part’s dimensional accuracy, surface finish, and overall quality. In a single-cavity mold, one part is produced per injection cycle, while in multi-cavity mold design, several identical parts are formed simultaneously, increasing production efficiency.
When designing a cavity mold, factors such as wall thickness, surface texture, and material selection are essential to ensure consistent filling and minimize defects. Proper mold cavity design, combined with precision mold manufacturing, helps achieve high-quality parts with excellent repeatability and cosmetic appearance.

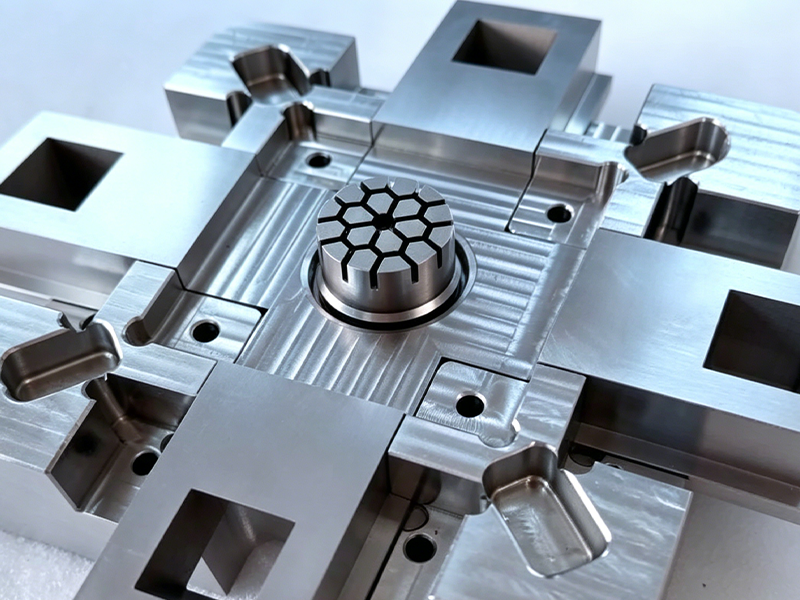

The mold core is the solid part of a plastic injection mold that shapes the internal features of the final part, forming the hollow or recessed areas within a component. In core molding, the core works together with the mold cavity to define the complete geometry of the part. The choice of mold core material, commonly steels such as P20, H13, or S136, impacts durability, thermal conductivity, and resistance to wear during repeated injection cycles.
A well-designed mold core ensures proper ejection, reduces the risk of warpage, and maintains tight tolerances throughout multi-cavity injection molding processes. Its precision is essential for producing high-quality plastic injection molds that meet both functional and aesthetic requirements. Engineers must consider cooling, venting, and surface finish when designing the mold core cavity, as these factors influence the efficiency of production and the consistency of the molded parts.
The primary functional difference is that the mold cavity shapes the external surfaces of a part, while the mold core forms internal features, such as holes, slots, or recesses. In cavity molding, the molten plastic flows around the cavity to replicate the part’s exterior, whereas core molding ensures internal structures are accurately formed. Together, the mold core cavity defines the complete geometry of the part.
Mold cores typically require higher-strength steels (like H13, S136) to withstand repeated injection cycles, high pressure, and thermal stress. In contrast, mold cavities may use P20 or similar materials if cosmetic finish is prioritized. Proper mold manufacturing ensures both core and cavity maintain dimensional stability and surface quality over thousands of cycles.
Designing a multi-cavity mold requires careful alignment of both mold core and mold cavity. Key considerations include cooling channels, venting, draft angles, and ejection systems. Optimizing the mold core cavity helps prevent defects like warpage, short shots, or sink marks, especially in multi-cavity injection molding setups.
The mold cavity primarily influences cosmetic appearance and dimensional accuracy of the external surfaces, while the mold core affects internal tolerances, assembly fit, and functional features. Balancing both in injection mold design ensures consistent part quality, reduced cycle time, and efficient mass production.
The material chosen for the mold core and mold cavity is critical in injection mold design and mold manufacturing, as it directly affects durability, cost, and the ability to produce high-quality parts efficiently. Selection depends on factors such as the type of plastic being molded, production volume, part complexity, and desired surface finish for plastic injection molds.
Common materials for hardened molds include P20, 738, 738H, 718, 718H, NAK80, 2316, 2316A, S136, and others. These steels offer excellent wear resistance, thermal stability, and machinability. For high-strength molds or heavy-duty applications, steels such as 2344, 8407, SKD11, SKD61 are widely used.
P20: General-purpose, suitable for medium to high-volume production (100,000–1,000,000 parts).
H13 / 718: Ideal for high-volume or heavy-duty production (500,000–several million parts), resistant to heat and pressure.
S136 / 2316: Selected for cosmetic or high-gloss parts, production range 100,000–500,000 parts, corrosion-resistant for mirror-polished cavity molding.
Stainless steel is used when molds are exposed to corrosive plastics or humid environments. Suitable for low to medium-volume production, typically 50,000 to 300,000 parts, maintaining surface integrity for high-tolerance or decorative mold core cavities.
Aluminum is frequently used for prototype molds or low-volume production, generally under 100,000 parts. Advantages include lower cost, faster machining, and excellent thermal conductivity for faster cooling. However, aluminum is less durable than steel and may wear faster in core molding applications.
Beryllium copper is ideal for localized cooling areas or thick-wall sections of a mold, improving heat dissipation and reducing warpage. Suitable for low to medium-volume production, typically 10,000 to 200,000 parts, often used as inserts within a steel mold cavity.
For rapid prototyping or very low-volume production, epoxy or 3D-printed molds are cost-effective. Production is limited to a few hundred to 5,000 parts due to low durability, and they are not suitable for complex or high-precision plastic injection molds.
The production of mold cores and mold cavities is a precise and multi-step process in injection mold manufacturing. It ensures that each plastic injection mold meets high standards for dimensional accuracy, surface finish, and durability. The typical workflow includes:
1. Design & DFM Analysis – Engineers create detailed 3D models of the mold core and mold cavity, optimizing core molding and cavity molding features. Flow paths, cooling channels, and ejector systems are planned to prevent defects and ensure consistent filling, especially for multi-cavity injection molding.
2. CNC Machining – High-precision CNC machines are used to carve the mold core and cavity from selected steel or aluminum. Tight tolerances (±0.01mm) are maintained to guarantee proper fit and surface quality.
3. EDM & Wire-Cut – For complex geometries, deep slots, undercuts, or fine features, EDM (Electrical Discharge Machining) and wire-cutting are applied. This step is essential for producing precise mold core cavities in high-precision plastic injection molds.
4. Surface Treatment & Polishing – Mold cavities and cores are polished, textured, or coated according to part requirements. Mirror finishes are applied for cosmetic parts, while textured surfaces improve functional performance.
5. Assembly & Trial Run – The mold core and cavity are assembled, and test injections are performed. This step checks flow balance, ejection, and surface quality, ensuring the mold functions correctly under production conditions.
6. Adjustment & Final Inspection – Any necessary corrections are made based on trial results. CMM (Coordinate Measuring Machine) inspection, hardness testing, and visual checks verify that both mold cores and mold cavities meet design specifications before full-scale production.

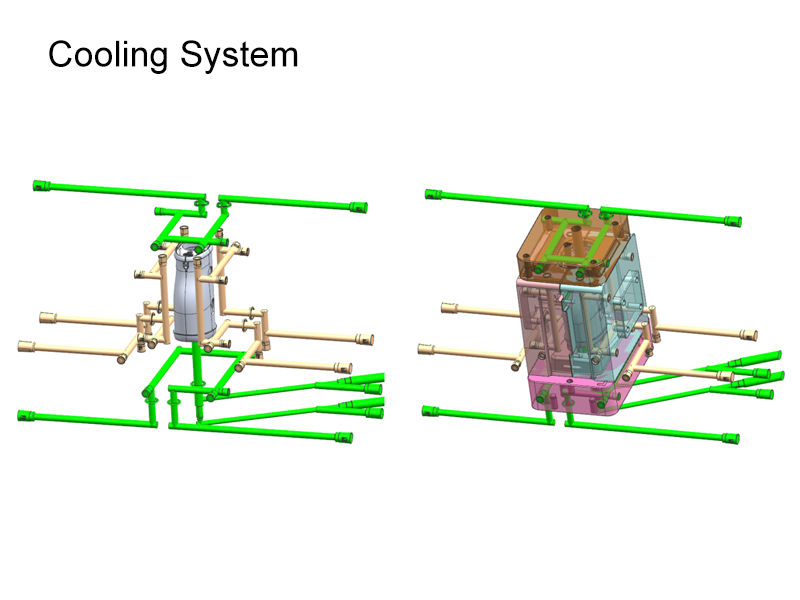

A well-designed mold cavity and mold core must include an optimized cooling system. Properly placed cooling channels ensure uniform temperature distribution, reduce warpage, and shorten cycle time. In multi-cavity injection molding, balanced cooling across all cavities is essential for consistent part quality.
The gate location and runner system significantly influence flow behavior in plastic injection molds. Properly designed gates help prevent short shots, flow lines, and uneven filling. In multi-cavity mold design, careful runner balancing ensures all cavities fill simultaneously, improving cosmetic and dimensional consistency.
Draft angles in both the mold cavity and mold core cavity facilitate smooth ejection of parts. Surface finish considerations, such as texture or mirror polish, affect the final appearance of the part. Attention to these details in cavity molding and core molding ensures both functional and aesthetic quality.

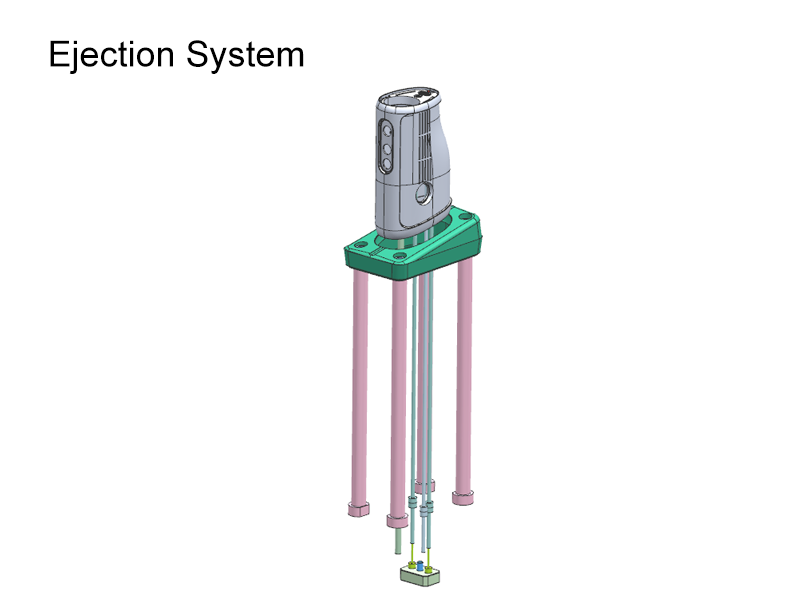

Proper integration of ejection mechanisms and venting systems is crucial for part release and preventing air traps. A precise mold core design combined with well-planned vents reduces defects, minimizes stress, and ensures stable mass production in multi-cavity injection molding setups.

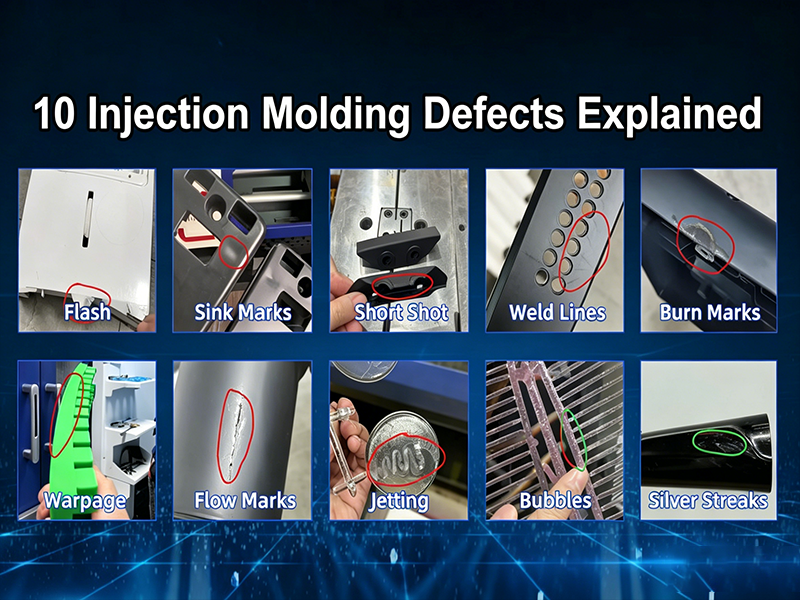

Flow lines or weld marks often appear when the molten plastic does not flow smoothly through the mold cavity or around the mold core. Poor cavity molding design or improper multi-cavity mold design can lead to visible lines, reducing cosmetic quality. Optimizing gate location and runner system in injection mold design helps minimize these defects.
Warpage occurs when different areas of the part cool at uneven rates. This is often caused by unbalanced cooling in the mold cavity or mold core cavity. Correct cooling system design and precise core molding techniques are essential to maintain dimensional accuracy and prevent deformation in plastic injection molds.
A short shot happens when the cavity is not completely filled. This defect is usually related to mold core or mold cavity design, inadequate venting, or improper injection parameters. Careful multi-cavity injection molding planning and DFM analysis can effectively prevent this issue.
Sink marks and internal voids often occur in thicker sections of the part where the mold core and mold cavity fail to maintain consistent cooling and pressure. Optimizing core molding and cavity molding design, along with proper injection mold design, ensures uniform packing and high-quality parts.
This article explained the roles of the mold cavity and mold core in injection molding, covering definitions, differences, design considerations, common defects, and material selection. Following best practices in core molding, cavity molding, and multi-cavity mold design ensures high-quality parts and efficient plastic injection molds production.
For professional support with mold cores and mold cavities, Alpine Mold provides expert injection mold design and mold manufacturing solutions. Contact us today to optimize your molds for quality, durability, and consistent performance.

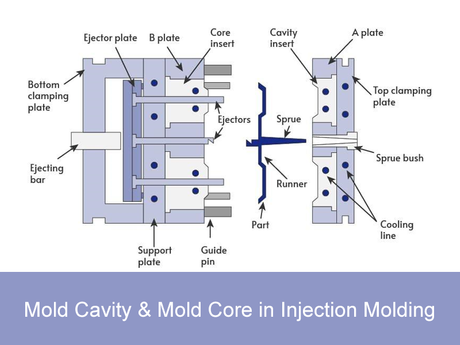

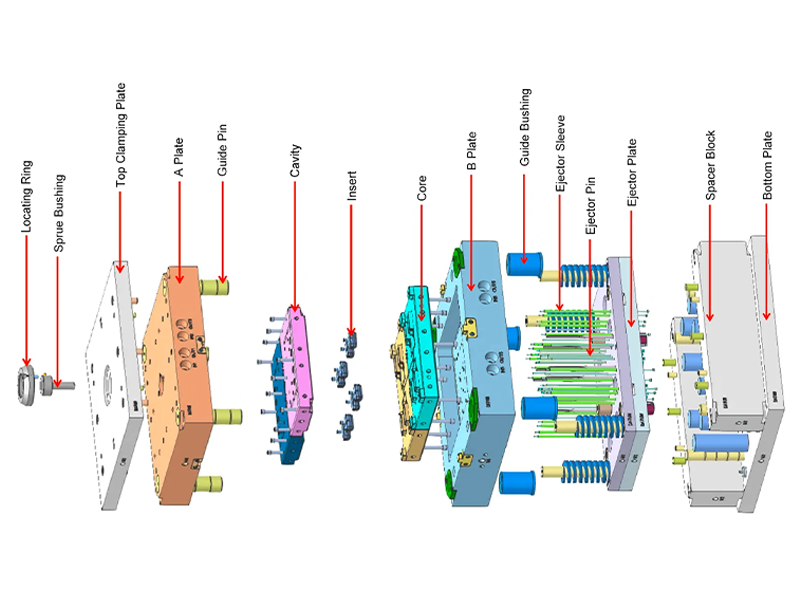

A typical injection mold consists of two main parts: the mold cavity (A-side), which shapes the exterior of the part, and the mold core (B-side), which forms internal features such as holes, slots, or recesses. Together, they define the complete geometry of the part.
A two-cavity mold contains two identical mold cavities, allowing two parts to be produced simultaneously in a single injection cycle. It is a type of multi-cavity mold design, improving production efficiency while maintaining consistent part quality.
A secondary mold refers to an additional mold used for features like overmolding, inserts, or post-processing operations. It works in combination with the primary mold core and mold cavity to achieve complex part geometries.
The A side is typically the mold cavity side, which often carries the cosmetic surface of the part. The B side is the mold core side, responsible for forming internal features and supporting core molding operations. Proper design of both sides ensures accurate cavity molding, part consistency, and smooth ejection.
