PP Injection Molding: Everything You Need To Know

Table of Contents

1. What is PP (Polypropylene)?

2. Key Properties of Polypropylene (PP)

3. Choosing the Right PP Grade for Your Project

4. PP Injection Molding Process Overview

5. How Alpine Mold Can Help With Your Project

6. In conclusion

Polypropylene (PP) injection molding is one of the most widely used processes in the plastics industry, thanks to PP’s excellent balance of durability, chemical resistance, and cost-effectiveness.In this blog, we’ll guide you through everything you need to know about PP injection molding — including its material properties, resin grades, molding process, and how Alpine Mold can support your next project with precision plastic injection tooling and production.

1. What is PP (Polypropylene)?

Basic Introduction to PP Material

Polypropylene (PP) is a popular thermoplastic polymer known for its excellent balance of strength, flexibility, and cost-effectiveness. Developed in the 1950s, it belongs to the polyolefin family and is produced by polymerizing propylene gas. Today, PP injection molding is widely used across industries such as automotive, medical, consumer products, and packaging due to the material’s ease of processing and versatility.

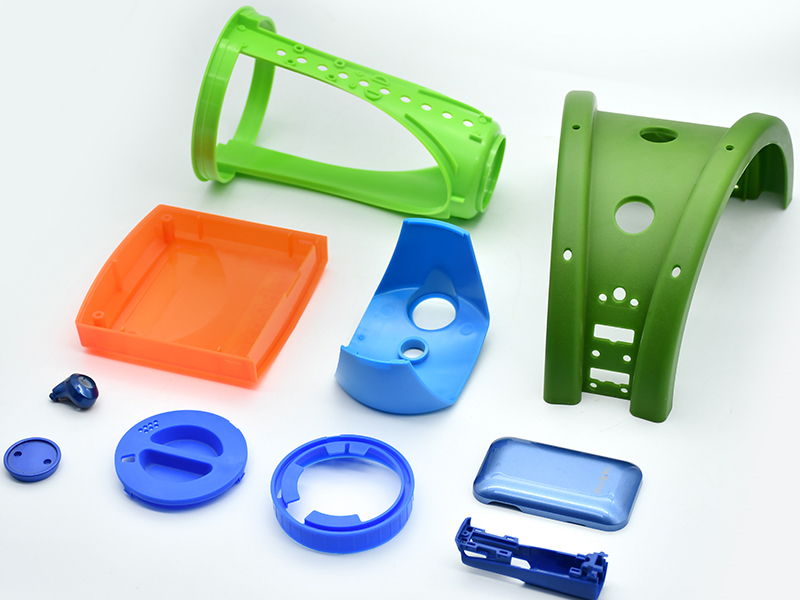

Applications of PP Injection Molded Parts

Category	Typical Applications
Automotive Components	Bumpers, dashboards, door panels, battery cases, interior trim, air ducts and more
Consumer Products	Storage boxes, toys, household containers, hangers, kitchenware, appliance housings and more
Medical and Hygiene Products	Syringes, medical trays, single-use containers, sanitary product packaging and more
Industrial and Packaging Uses	Chemical tanks, pallets, crates, bottle caps, food packaging, industrial housings and more

2. Key Properties of Polypropylene (PP)

Polypropylene (PP) is one of the most widely used materials in plastic injection molding due to its exceptional balance of light weight, chemical resistance, toughness, and recyclability. These characteristics make it a preferred resin for manufacturers producing high-volume, cost-sensitive parts that require durability and dimensional consistency.

Advantages of PP Injection Molding

PP offers several key advantages that make it ideal for a wide range of molded products:

• Lightweight

One of the standout benefits of polypropylene molding is its low density—approximately 0.90 g/cm³. This makes PP significantly lighter than many other engineering plastics, helping manufacturers reduce overall part weight. It's especially useful in automotive and handheld product applications where light weight contributes to better efficiency and user comfort.

• Cost-Effective Tooling and Processing

Compared to many engineering plastics, PP is easier and less expensive to process. Its flow characteristics allow for faster cycle times in injection molding, which lowers production costs—especially in high-volume manufacturing.

• High Chemical Resistance

PP injection molding is frequently used in applications that require exposure to harsh chemicals. Polypropylene resists a broad range of substances, including acids, alkalis, and organic solvents, making it perfect for containers, chemical handling components, and pharmaceutical packaging.

• Impact Strength and Flexibility

Despite being semi-rigid, PP offers excellent toughness and flexibility. It performs well under repeated stress or bending, which is why plastic injection molding with PP is commonly used for living hinges, snap-fit designs, and functional moving parts.

• Thermal Resistance

PP has a relatively high melting point (around 160–170°C) and maintains its shape under elevated temperatures. This thermal stability makes it suitable for heat-resistant molded plastic parts used in food packaging, sterilizable medical items, and hot-fill containers.

• Recyclability and Sustainability

Polypropylene is 100% recyclable and can be reprocessed multiple times without significant degradation. Using PP in molded products supports sustainable manufacturing goals and reduces plastic waste—an important advantage for brands prioritizing eco-friendly solutions.

Limitations of PP Injection Molding

While PP offers many advantages, it also has some limitations that need to be considered in design and processing:

1. UV Sensitivity

Standard PP degrades under prolonged exposure to UV light. For outdoor applications, UV stabilizers or additives must be used to prevent material breakdown and maintain performance.

2. Limited Structural Strength

Compared to high-performance engineering plastics like ABS or PC, polypropylene has lower tensile strength and rigidity. It’s not suitable for applications that require high mechanical loads or stiffness.

3. Warpage Risk

PP is prone to warpage if not molded correctly. Uneven cooling or poor part design—such as non-uniform wall thickness—can result in dimensional distortion. Careful mold design, balanced cooling, and proper processing conditions are essential for accurate part production.

3. Choosing the Right PP Grade for Your Project

Not all polypropylene (PP) grades are the same. Selecting the right PP resin is crucial to balance performance, appearance, and cost-effectiveness. With 23 years of experience in PP injection molding, we understand how the right choice impacts your project’s success.

Homopolymer PP vs. Copolymer PP

• Homopolymer PP offers excellent stiffness and heat resistance, ideal for rigid parts like containers and lab equipment.

• Copolymer PP includes ethylene comonomers to improve toughness and impact resistance. Impact copolymer suits durable automotive parts and toys, while random copolymer offers better clarity for medical packaging and transparent products.

Glass-Filled PP vs. Impact-Modified PP

• Glass-Filled PP contains glass fibers that boost strength, stiffness, and dimensional stability — perfect for structural and high-heat components.

• Impact-Modified PP uses special additives to enhance toughness beyond standard copolymers, suitable for heavy-duty or shock-resistant parts.

Food-Grade, FDA-Compliant & Medical-Grade PP

• Food-Grade PP meets strict safety standards for direct food contact, ensuring non-toxicity and odor resistance — used for containers, kitchenware, and packaging.

• FDA-Compliant PP satisfies U.S. FDA regulations, often overlapping with food-grade applications.

• Medical-Grade PP meets higher purity and biocompatibility standards (USP Class VI, ISO 10993) for sterile medical devices like syringes and surgical trays.

4. PP Injection Molding Process Overview

Material preparation and drying

Here is a table outlining the key parameters and recommendations to help you optimize the material preparation process before molding:

Parameter	Recommended Range	Purpose & Notes
Hygroscopicity	Very Low (<0.01%)	PP doesn’t absorb much moisture, but surface moisture can still cause defects.
When to Dry	Only if stored >6 months or high humidity	Prevents splay, black spots, and inconsistent appearance.
Drying Temperature	80–90°C	Avoid overheating; >90°C may lead to oxidation.
Drying Time	1–2 hours	Short drying is sufficient; overdrying not usually needed.
Moisture Content Goal	<0.10%	Ensures surface quality and minimizes cosmetic defects.
Pre-Processing Tips	Clean hopper
Check MFI (flow index)	Helps maintain color, flow, and part consistency.
Special Note	For regrind PP: Dry at 90°C for 2–3 hrs	Higher risk of contamination—extra care needed.

Mold design considerations for PP

Designing molds for polypropylene (PP) requires careful attention to its flow behavior, shrinkage, and processing characteristics — here are 10 key considerations to ensure optimal part quality and mold performance.

① Shrinkage & Dimensional Control

PP injection molding typically has a shrinkage rate between 1.5% and 3%, affected by flow direction and fillers. To ensure dimensional accuracy, mold cavities should be oversized accordingly, and uniform cooling is essential to reduce warpage.

② Gating System

For polypropylene molding, use edge, fan, or diaphragm gates to allow smooth melt flow; avoid pinpoint gates on thick parts. Proper gate size and location help prevent jetting and reduce weld lines, improving part strength.

③ Cooling System

Due to PP’s slow crystallization in injection molding, cooling channels should cover 60–70% of the mold surface for effective heat removal. Maintaining a uniform mold temperature between 40°C and 80°C avoids defects like warpage and sink marks.

④ Ejection

PP’s flexibility makes ejection easier, but ejector pins should be at least 3mm in diameter to prevent part deformation. Draft angles of 1–2° for smooth and 3–5° for textured surfaces ensure smooth release.

⑤ Venting

Fast fill speeds in polypropylene injection molding trap air, making vents critical to avoid burns and short shots. Vent depths of 0.015–0.025 mm placed along weld lines and end-of-fill zones improve air escape.

⑥ Surface Finish

PP replicates mold surface textures well; glossy finishes require high SPI polish levels, while matte finishes are achieved through shallow etching (typically 10–20 μm). Textured surfaces can also help mask sink marks, especially on thick rib areas.

⑦ Corrosion Resistance

Polypropylene is chemically non-corrosive, making pre-hardened steels like P20 an economical choice for most molds. For enhanced polishability (e.g., SPI B1 finishes) or added wear resistance, 420 stainless steel is recommended. H13 tool steel is reserved for ultra-high-volume production (>1 million cycles) due to its higher cost and need for heat treatment. Hardened steels (≥45 HRC) are typically unnecessary for standard PP molding.

⑧ Special Features

Living hinges in PP molds should be 0.25–0.5 mm thick with flow aligned along the hinge axis. Coarse threads are preferred over fine threads to reduce the risk of cracking.

⑨ Runner System

Cold runners in PP injection molding need full-round channels with diameters ≥5 mm for rapid filling. Hot runner systems use open-gate nozzles since PP sticks less compared to other plastics; valve gates are avoided for unfilled PP.

⑩ Warpage Prevention

Balanced melt flow through symmetrical rib layouts helps prevent warping. Keeping wall thickness variation under 25% (e.g., 2 mm base with 1.5 mm ribs) promotes uniform cooling and reduces deformation.

PP Injection Molding Process Parameters

Here is a table outlining the key parameters and recommendations to help you optimize the PP injection molding process:

Parameter	Typical Range	Key Details & Recommendations	Special Cases
Barrel Temperature	180–280°C (356–536°F)	Profile: Rear 180–200°C, Middle 200–230°C, Front 220–250°C, Nozzle 230–280°C. Avoid >280°C to prevent degradation.	Filled PP: +10–20°C; Copolymer PP: 170–260°C
Mold Temperature	40–80°C (104–176°F)	Higher temps (60–80°C) improve gloss & reduce warpage; lower temps (40–60°C) shorten cycle time. Cooling variation <5°C.	Thick parts >4 mm: 60–80°C; Living hinges: 70–90°C
Injection Pressure	70–140 MPa (10,000–20,000 psi)	Start low (70–90 MPa), adjust to avoid flash; fill 95% cavity during injection.	Micro-molding: 150+ MPa; Recycled PP: -10% pressure
Holding Pressure	35–70 MPa (5,000–10,000 psi)	50–70% of injection pressure; maintain until gate solidifies to prevent sink marks.	Semi-crystalline PP requires 60–70 MPa
Injection Speed	Medium to Fast	Medium speed at gate entry to avoid jetting, then fast fill; thin walls need high speed (>80% screw velocity).	Pigmented PP needs slower speed to prevent streaks
Cooling Time	15–60 seconds	Wall thickness⊃2; (mm) × 8–12 sec (e.g., 2 mm wall → 20–30 sec). Avoid overcooling to reduce warpage.	GF-reinforced PP: +30% time; Parts <1 mm: 5–10 sec
Back Pressure	0.5–1.5 MPa (70–220 psi)	Ensures homogeneous melt; higher values improve mixing for colors/additives.	Regrind blends: 1.0–2.0 MPa
Screw Speed	50–100 RPM	Slow speed reduces shear heat; high RPM causes melt instability.	Heat-sensitive PP <60 RPM
Cycle Time	25–90 seconds	Injection: 1–5 sec; Holding: 5–15 sec; Cooling: 15–60 sec; Ejection: 3–10 sec	Automotive parts: 60–120 sec

Common PP Molding Defects and How to Avoid Them

While polypropylene is generally easy to mold, certain defects can still occur without proper process control — here are the most common issues and how to prevent them.

Defect Type	Description	Possible Causes	How to Avoid
Sink Marks	Small depressions on thick areas	Insufficient packing pressure/time, uneven wall thickness	Increase holding pressure/time, optimize part design with uniform thickness
Warping	Part deformation after ejection	Uneven cooling, inconsistent shrinkage	Balance mold temperature, improve cooling design, use uniform wall thickness
Short Shot	Incomplete filling of the mold cavity	Low injection pressure, poor venting, flow restriction	Increase injection pressure/speed, improve venting, adjust gate location
Flow Lines	Wavy patterns on the surface due to irregular flow	Low melt temperature, slow injection speed	Increase melt temperature or speed, round sharp corners
Flash	Excess plastic along parting lines	High injection pressure, poor clamping force, mold damage	Reduce pressure, inspect mold for wear, improve clamping
Burn Marks	Dark or black streaks on the part	Trapped air overheating, high injection speed	Improve venting, lower injection speed, avoid excessive melt temperature
Splay Marks	Silvery streaks on the surface caused by moisture or volatiles	Moisture in material, excessive backpressure	Properly dry PP resin, reduce backpressure
Weld Lines	Visible lines where flow fronts meet	Low melt temperature, low injection speed, poor gate design	Increase melt temperature/speed, improve gate placement

5. How Alpine Mold Can Help With Your PP Project

23+ Years of Tooling Expertise

With over 23 years of experience in precision mold making, Alpine Mold has delivered over 10,000 customized injection molds, many of which are designed specifically for polypropylene (PP) parts. Our engineering team is well-versed in the flow characteristics, shrinkage behavior, and crystallization properties of PP — whether it's homopolymer, copolymer, or glass-filled PP.

We select the appropriate mold steel (e.g., NAK80, S136, H13) based on the material’s abrasiveness, expected mold life, and finish requirements. For high-volume PP parts, especially those with FDA or medical-grade certification, we prioritize high-hardness, corrosion-resistant steel to support long production runs and sterilization compatibility.

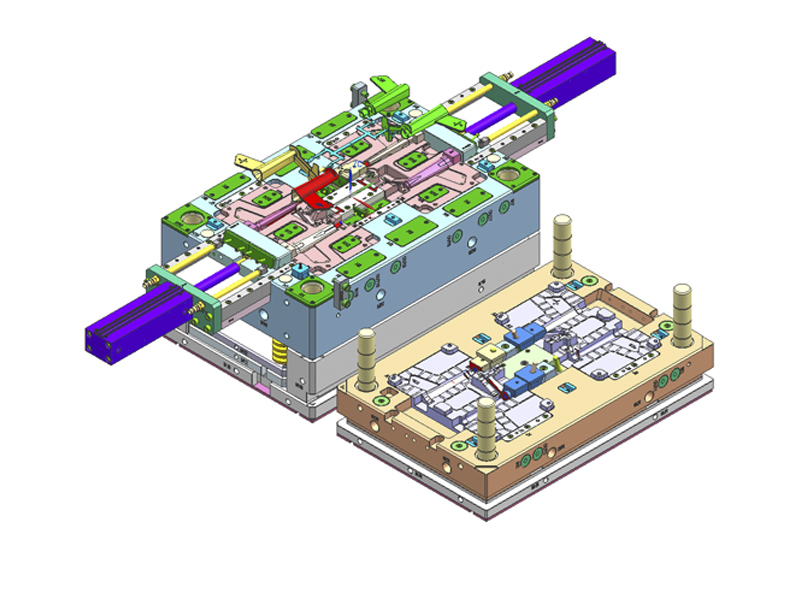

DFM, Moldflow Analysis, and Custom Mold Design

Before cutting steel, our engineers perform detailed DFM (Design for Manufacturability) checks to optimize:

• Wall thickness uniformity (to avoid sink marks and warpage)

• Draft angles (for smooth ejection)

• Gate type and location (hot runner vs. cold runner, pin gate vs. submarine gate)

• Rib design (to maintain stiffness without increasing weight)

• Venting (especially important in PP to release trapped air)

We also run Moldflow simulation to analyze material flow behavior, weld lines, air traps, cooling balance, and potential shrinkage hotspots. This is especially important when dealing with semi-crystalline materials like PP-R or PP-GF30, which have higher shrinkage and flow orientation issues.For medical or food-grade parts, we evaluate the best gating and cavity layout to minimize material stress and contamination risk.

One-Stop Solution from Mold Making to Injection Molding

From CNC programming and EDM machining to mold fitting, polishing, and sampling, all tooling processes are completed in-house at Alpine Mold. We follow a strict T0–T3 mold trial protocol, ensuring each tool meets quality and functional requirements before moving into production. Our team provides full technical documentation and support, including:

• Trial run videos to visually confirm mold function and part ejection

• Inspection reports with dimensional measurements and surface evaluations

• Sample part photos highlighting finish quality, gate location, and potential improvements

• Material data sheets for the resin used (especially useful when the customer has not specified the PP grade)

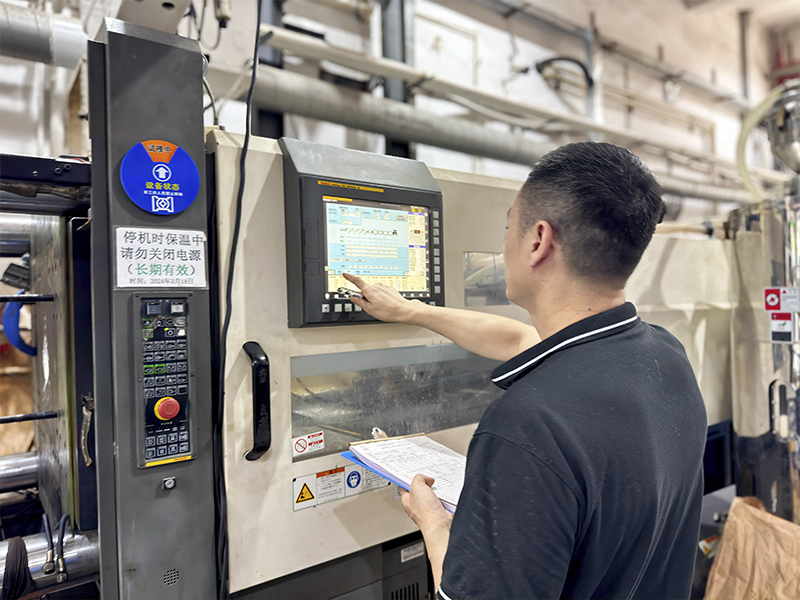

Once the customer confirms the samples, we move into mass production using our 28 injection molding machines, including industry-leading brands like FANUC and Haitian. These machines cover a wide tonnage range, allowing us to efficiently produce a variety of PP parts — from small precision components to larger structural housings — with stable quality and fast turnaround.

Export Experience to North America, Europe, and Beyond

Our injection molds and PP plastic parts are trusted by clients in North America, Europe, Australia, and Asia. With years of experience serving international customers, we fully understand global mold standards such as HASCO, DME, and LKM, and are familiar with the quality expectations of different markets.

Whether your project involves automotive-grade components, consumer packaging, or food-contact or medical-use PP parts, we help customers select suitable materials and design molds that meet both performance and compliance needs.

All molds or plastic parts are professionally packaged to ensure they arrive in perfect condition. Molds are shipped in custom wooden crates with rust-proof protection, while PP parts are packed in clean, dust-free bags and sturdy export cartons, clearly labeled and ready for assembly or production upon arrival.

6. In Conclusion

PP is a versatile and efficient material choice for a wide range of injection molded products — but achieving the best results depends on selecting the right grade, designing your mold properly, and controlling key processing parameters. With over 23 years of experience in PP mold design, tooling, and production, Alpine Mold offers one-stop solutions tailored to your application needs. Whether you’re developing durable industrial components, food-contact packaging, or high-clarity medical housings, we’re here to help you bring your product from concept to reality .Ready to start your PP injection molding project? Contact us today !
