Injection Molding Defects: Solutions To Prevent Warpage

Views: 0     Author: Site Editor     Publish Time: 2025-07-23      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Table of Contents

1.Understanding Warpage in Injection Molding
2.Root Causes of Warpage
3.Solutions to Prevent Warpage in Injection Molding
4.How to Prevent Injection Molding Defects: Warpage
5.FAQs on Warpage and Injection Molding Defects
6.Conculsion



Introduction

In the world of plastic injection molding, warpage ranks among the most challenging and costly injection molding defects.I’ve seen how it leads to dimensional inaccuracy, compromised part performance, and customer dissatisfaction. To prevent warpage effectively, I always start by understanding its root causes.

In this blog post, I dive deep into the topic of warpage—one of the most common injection molding defects. I’ll explain what it is, why it occurs, and how I solve it in real production environments. From analyzing the core causes to applying proven solutions and reviewing real-world examples, I aim to help engineers, designers, and sourcing managers reduce risks and improve part quality.



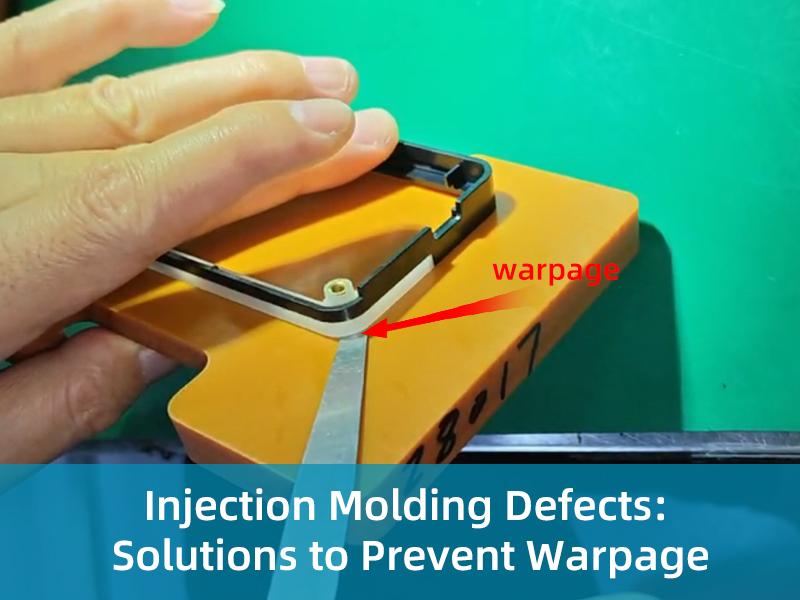

1. Understanding Warpage in Injection Molding

You’ll also find answers to frequently asked questions about defects in injection molding, which I’ve gathered from my hands-on experience in managing tooling projects.

I hope this post gives you a practical edge when facing plastic injection molding defects in your future projects.

Warpage refers to the unwanted deformation of plastic parts—such as bending, twisting, or bowing—that occurs after ejection from the mold.

This injection molding defect causes parts to deviate from their original shape and intended dimensions. Warpage usually takes place during the cooling phase,

when different areas of the part cool and shrink at varying rates.



2. Root Causes of Warpage

Warpage is one of the most common injection molding defects. It usually comes from a mix of issues—uneven cooling, material behavior, part geometry,

or improper molding parameters. Most defects in injection molding don’t come from a single source but result from combined factors.


2.1 Uneven Cooling and Imbalanced Heat Distribution

When the mold’s cooling channels are poorly designed, different sections of the molded part cool at different speeds. This discrepancy leads to inconsistent shrinkage, which creates internal stress and bending moments—eventually causing the part to warp.

This type of plastic injection molding defect becomes especially prominent when the temperature difference across the mold cavity exceeds 10°C. Once the part is ejected, it often deforms, making it difficult to maintain dimensional accuracy and proper fit during assembly.

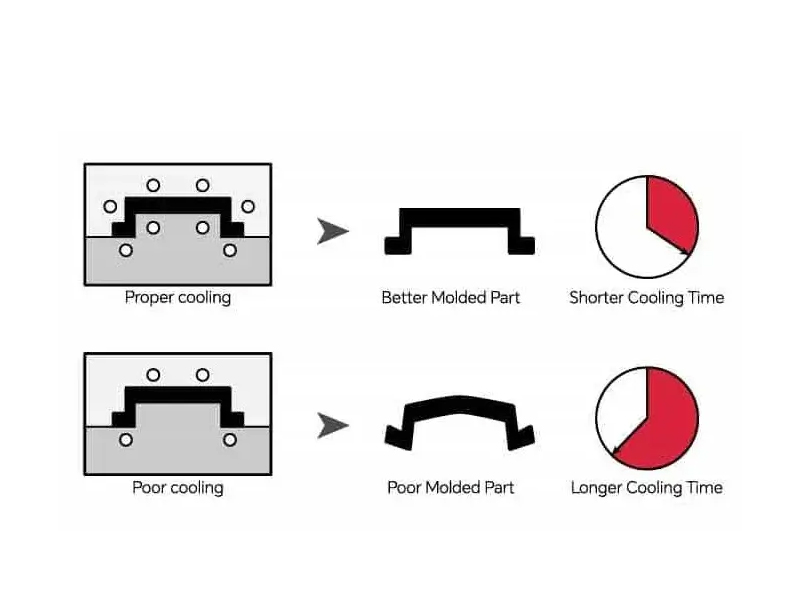

Uneven cooling leading to warpage, a common injection molding defect in plastic parts

2.2 Material Factors: When the Resin Works Against You

Material selection plays a critical role in the occurrence of warpage. Glass fiber–reinforced materials, fluctuating moisture levels, or unstable resin batches often lead to directional shrinkage—one of the most common injection molding defects. This issue is especially prominent in precision parts that demand high dimensional stability. These plastic injection molding defects can severely impact both function and fit。


2.3 Design Issues That Lead to Warpage

Mold and part design directly influence how stress builds up during molding. Uneven wall thickness, poorly positioned gates, insufficient draft angles, and unbalanced cooling channel layouts frequently cause uneven shrinkage. These structural problems are typical defects in injection molding, often resulting in significant warpage. A well-balanced design—with uniform wall sections and properly engineered cooling paths—can significantly reduce the risk.


2.4 Improper Processing Parameters

Incorrect molding conditions are another major cause of injection molding defects. Low melt temperature, insufficient holding pressure, or short cooling time often lead to uncontrolled shrinkage. These conditions rank among the most common injection molding defects, especially when speed is prioritized over precision. Optimizing these settings helps minimize plastic defects in injection molding and improves overall consistency.


3. Solutions to Prevent Warpage in Injection Molding

Warpage is one of the most common injection molding defects, usually caused by a mix of uneven cooling, material behavior, poor mold design, or incorrect processing. Focusing on four key areas—cooling design, material choice, mold structure, and process control—can significantly reduce defects in injection molding and improve part stability.


3.1 Improve Cooling System Layout

Consistent cooling across all surfaces helps avoid uneven shrinkage, the main cause of warpage. Matching the temperature between cavity and core ensures even cooling, which prevents distortion.

Key cooling layout factors include water channel diameter (d1), spacing (b), distance from the pipe to cavity surface (C), and part wall thickness (w). Once C is fixed, reducing b improves temperature balance, which helps eliminate plastic defects in injection molding caused by thermal stress.

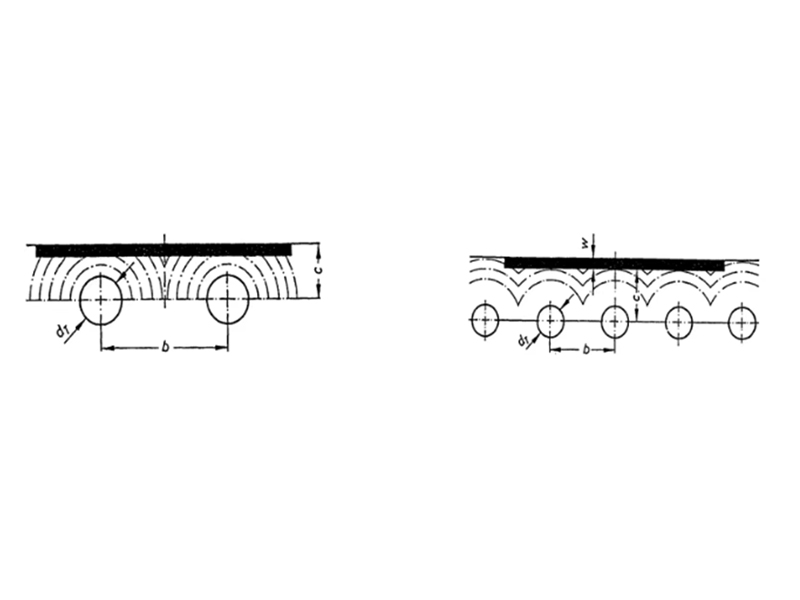

injection-mold-design-cooling-water-hole-layout

Cooling channel diameter should be based on average wall thickness, but to ensure turbulent flow, it should not exceed 14 mm—regardless of mold size. The specific guidelines are as follows:


Average Wall Thickness (mm)

Cooling Channel Diameter (mm)

2

8–10

2–4

10–12

4–6

10–14


The cooling medium also affects the mold cavity temperature. As the length of the cooling channel increases, the temperature rises. Therefore, it is recommended that the length of each cooling circuit be less than 2 meters.

Square parts: Enhance cooling at the corners of the mold or insert beryllium copper to address heat buildup and prevent deformation.

Large molds: Use multiple interconnected cooling circuits to improve cooling efficiency.

Long, narrow parts: It is recommended to use straight-through cooling channels to ensure uniform cooling.


3.2 Material Selection Matters

Choosing the right resin helps prevent defects in injection molding from the start:

Use engineering plastics with low shrinkage and high dimensional stability, such as PPS, PBT, PC, and PEET.

Reinforce with glass fiber or mineral fillers to reduce warpage.

Avoid excessive use of recycled materials, as shorter polymer chains reduce flow stability and increase the risk of deformation.

Strict moisture control (as shown in the table below) is essential to avoid bubbles or residual stress during molding.(这个表叫做材料含水率控制表格)

Material Type

Max Allowable Moisture Content (%)

Drying Temperature (°C)

Drying Time (hours)

Recommended Equipment

ABS

≤ 0.1%

80

2–4

Hot Air Dryer

PA6/PA66

≤ 0.15%

80–90

4–6

Dehumidifying Dryer

PBT

≤ 0.04%

110–130

3–5

Dehumidifying Dryer

PC

≤ 0.02%

100–120

4–6

Dehumidifying Dryer

PMMA

≤ 0.05%

80–90

3–5

Hot Air or Dehumidifying Dryer

PET

≤ 0.04%

150–170

4–6

Dehumidifying Dryer

PA12

≤ 0.1%

80–90

4–6

Dehumidifying Dryer

PEEK

≤ 0.02%

160–180

4–6

Dehumidifying Dryer


3.3 Optimize Mold and Product Design

  • Avoid thickness variations

  • Prioritize the use of ribs

  • Optimize draft angles and fillets (using images can make it      more engaging)

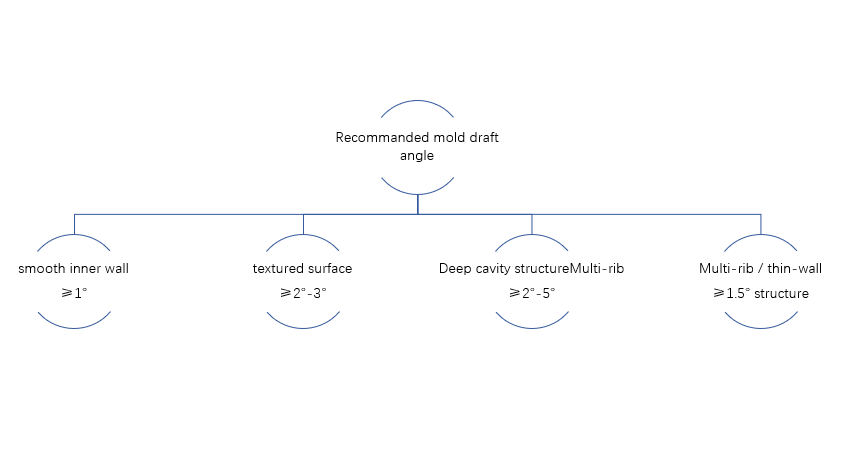

    Common Pl Avoidastic Injection Molding Defects with Proper Draft Angles


Scene

Recommended Radius

Inner Corners (e.g.,   rib base, corners)

≥ 0.5 mm

Outer Corners (external protruding corners)

≥ 1.0 mm

Transition from Thick   to Thin Wall

≥ 0.6–1x wall   thickness

Rib-to-Surface Connection

≥ 0.25 mm


  • Adjust Gate Design: Ensure  symmetrical melt flow, short flow paths, and reduce residual stress.



3.4 Precise Adjustment of Processing Parameters

Injection molding defects often result from improper process settings. To avoid defects in injection molding, you can adjust parameters carefully for each material and mold.

The table below highlights key settings to help prevent common injection molding defects and reduce plastic injection molding defects, especially warping.

Factor

Material Type

Recommended Range

Adaptation & Mechanism

Melt Temperature

▶︎ Amorphous   (e.g., ABS, PC)

▶︎ Crystalline   (e.g., PP, POM)

220–240°C 190–210°C

Hot runner +15°C Cold runner -10°C Even filling, suppress   crystallization

Mold Temperature

▶︎ Thin-walled (<1.5mm)

▶︎ Thick-walled (>3mm)

60–80°C 40–60°C

Cooling temp difference ≤ 5°C Independent control   for inserts

Holding Pressure

▶︎ Low shrinkage   (e.g., PC/GF30)

▶︎ High   shrinkage (e.g., HDPE)

60–80% 80–100%

Gate size ↓ → Pressure ↑ 10% Increased pressure in rib areas

Holding Time

▶︎ Uniform wall thickness

▶︎ Varying wall thickness

t = wall thickness × 1.2s t = thickest area × 2.5s

Avoid over-holding pressure, prevent gate sink

Cooling Time

▶︎ Crystalline   (PP, POM)

▶︎ Amorphous   (ABS)

Wall thickness⊃2; × 1.5 (s/mm²) Wall thickness⊃2; × 0.8 (s/mm²)

Copper inserts -20% Beryllium copper +30%



4.How to Prevent Injection Molding Defects: Warpage

Warpage is a common injection molding defect, often caused by uneven wall thickness or mixed materials. This blog shares a real handset base case to help you avoid it.

Among plastic injection molding defects, warpage hurts both look and function. Knowing the causes helps you reduce defects in injection molding and improve quality.

Use this case to learn how to fix common injection molding defects and avoid repeated plastic defects in injection molding.

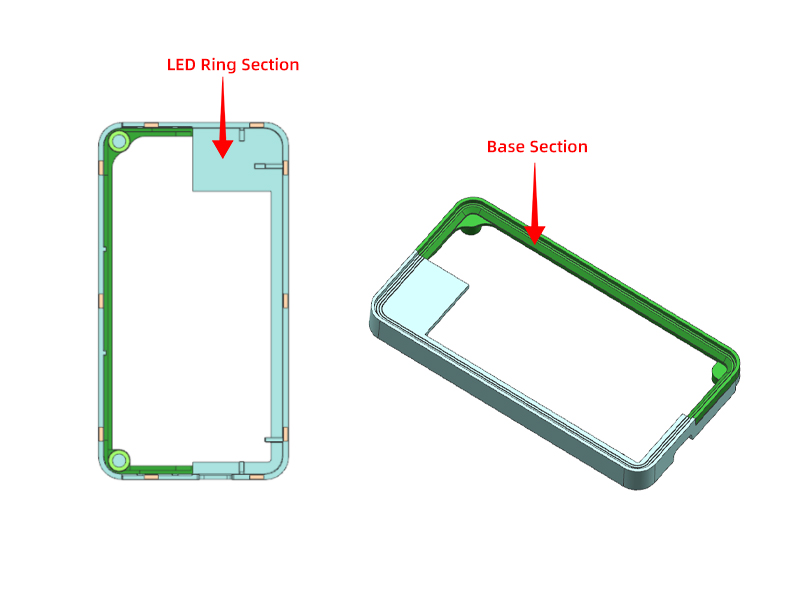

Injection molding part structure showing LED ring section and base section

4.1 Case Background

Part Name: Handset Base

Material Composition:

Part

Material

Dimensions    (mm)

Base   Section

ABS   + PC (1.0055)

54.11   × 101.87 × 9.00

LED   Ring Section

PC +   LD

26.84   × 101.58 × 7.90


4.2 Key Issue

The handset base uses two materials with different thicknesses—PC+LD is thicker, and ABS+PC is thinner. Due to their different shrinkage rates, the thicker PC+LD pulls on the thinner ABS+PC, causing slight warpage. Although early design improvements helped, small injection molding defects still occurred in production.


4.3 Solution: Fixture Adjustment

You can take the following steps to fix thiscommon injection molding defect:

  • Custom jig: Designed for the PC+LD and ABS+PC joint area. It offers:

        Multi-point clamping for shape stability

        Adjustable pressure zones for fine corrections

        High-temp materials to stay precise under heat

  • Quick cooling: Place the part in the jig right after demolding for 30–60 seconds. This reduces stress and locks the final shape.

  • Process feedback: Use jig results to adjust holding pressure, cooling time, and mold temperature. This helps reduce repeated defects in injection molding.


4.4 Final Result

These adjustments successfully resolved warpage, a common plastic injection molding defect. The final parts met all dimensional and appearance requirements.

This case demonstrates how to fix plastic defects in injection molding through design and process control, ensuring better part quality and fewer defects in injection molding.



5. FAQs on Warpage and Injection Molding Defects

In injection molding production, defects are common—especially warpage. It’s one of the most frequent issues customers ask about. Here are answers to some common questions about plastic injection molding defects, helping you understand the causes and solutions faster.


5.1Why do injection molded parts warp?

Warping usually happens due to uneven shrinkage during cooling. Key causes include:

Inconsistent wall thickness

lPoor mold design

lUneven flow

lIneffective cooling

lIncorrect molding parameters like temperature, pressure, or cycle time


5.2How can you tell what defect has occurred?

Each type of defect has clear signs:

·         Warpage: bent or twisted parts

·         Short shot: missing areas

·         Sink marks: small dents in thick sections

·         Flash: extra material along the parting line


5.3Which plastic materials are more likely to warp?

Materials with high or uneven shrinkage tend to warp more easily, such as:

·         Nylon (PA)

·         Polypropylene (PP)

·         PBT

·         HDPE


5.4How can you reduce warpage in injection molding?

Here are simple ways to reduce common injection molding defects like warpage:

· Keep wall thickness uniform

· Optimize gate and flow path design

· Use symmetrical part designs when possible

· Improve cooling system layout

· Do mold flow analysis during the design stage

· Adjust molding parameters as needed


5.5Why is it important to work with an experienced mold maker?

Many plastic injection molding defects start with poor mold design. A skilled mold maker can:

·Spot deformation risks early

·Offer design improvements

·Ensure better cooling and precision

·Shorten testing time and improve yield





6.Conculsion

Warpage is one of the most challenging issues in injection molding—often caused by a combination of material, design, mold, and process factors. Without the right approach, fixing it can be time-consuming and expensive.

At Alpinemold, we help reduce warpage risks through moldflow simulation, optimized mold design, and 20+ years of experience. Whether you're in design or production, identifying the root cause early leads to better results and lower costs.



Want to prevent warpage more efficiently?
Explore real project insights on our blog or
contact usto discuss your part or mold design.
