How to Choose the Right Injection Mold Polishing Method

Table of Contents

I. Introduction

II. The Purpose of Injection Mold Polishing

III. Common Injection Mold Polishing Methods

IV. How to Select Appropriate Mold Polishing Methods

V. Key Considerations for Injection Mold Polishing

VI. Conclusion

I. Introduction

In the field of plastic injection mold manufacturing, polishing is essential for achieving high-quality mold surfaces and enhancing the final product’s appearance and value. By using mechanical, chemical, or electrochemical methods, mold polishing removes machining marks and refines the cavity surface to meet strict aesthetic standards.

In today’s competitive market, even slight defects can reduce a product’s perceived value, while a well-polished mold can significantly boost its appeal and pricing. With 23 years of experience, Alpine Mold shares practical insights to help you choose the best injection mold polishing method for your needs.

II. The Purpose of Injection Mold Polishing

1. Enhance Surface Finish

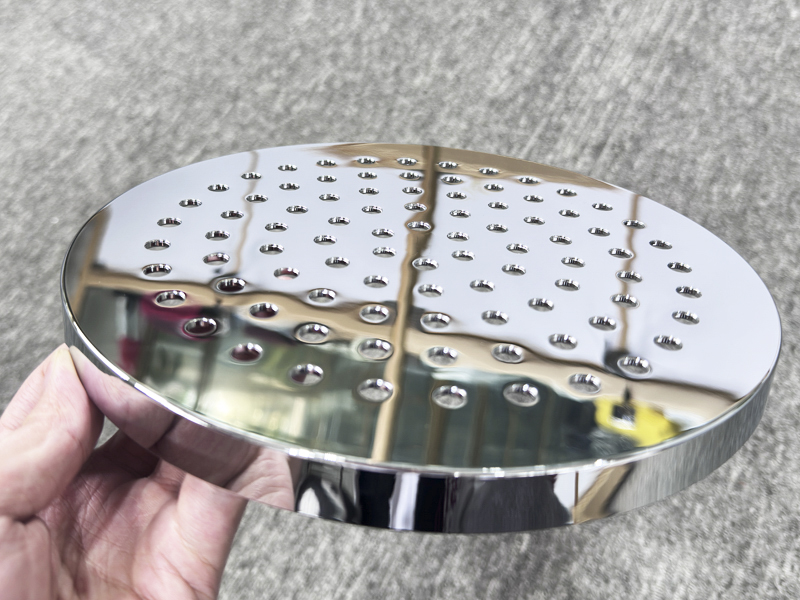

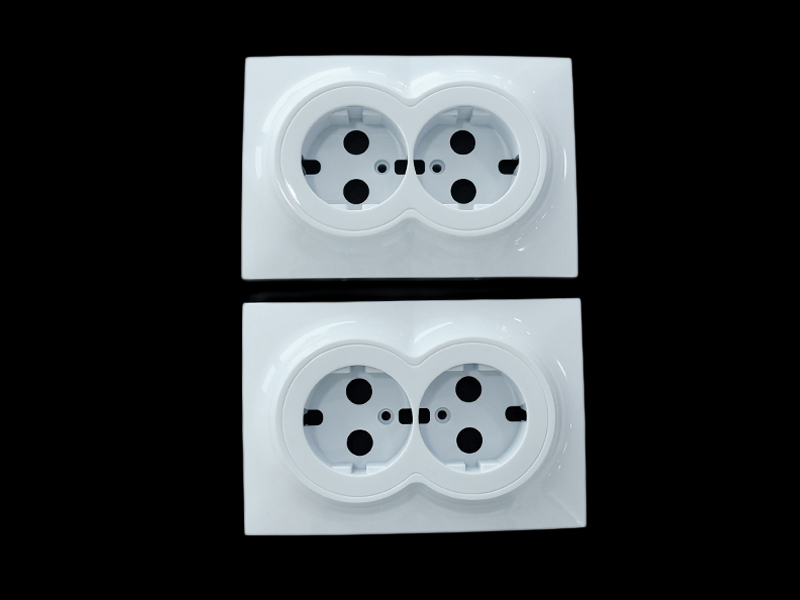

Remove machining marks, EDM textures, and other surface defects to achieve mirror finishes or meet specific roughness requirements (e.g., Ra ≤ 0.1 μm). This directly impacts the appearance of the final product, such as thigh-gloss plastic housings, home appliance panels, and consumer electronics enclosures.

2. Improve Demolding Performance

Lower the surface friction coefficient to reduce adhesion between the molded part and the mold, preventing scratches or damage during the demolding process.

3. Extend Mold Lifespan

Eliminate microscopic cracks, burrs, and stress concentration points to delay fatigue crack initiation and improve mold durability.

4. Ensure Dimensional Accuracy

Precision polishing can correct minor geometric deviations, such as improving the sealing effectiveness of mold parting surfaces.

5. Meet Special Process Requirements

For instance, food-grade molds require pore-free surfaces to inhibit bacterial growth, while optical molds demand ultra-mirror polishing for superior clarity and reflectivity.

III. Common Injection Mold Polishing Methods

With 23 years of mold manufacturing experience, Alpine Mold selects the most suitable polishing methods based on each customer’s surface, gloss, or transparency requirements. Here are the common techniques we use and their features:

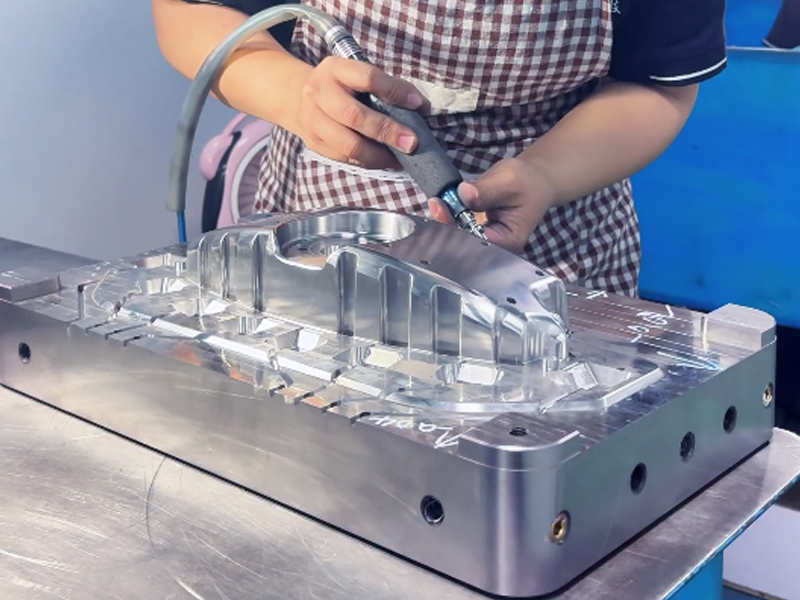

1. Manual Polishing

Our injection mold polishers each have over 15 years of industry experience and are skilled in using a wide range of tools such as oil stones, sandpaper, diamond paste, polishing cloths, wool wheels, polishing compounds, fine abrasive sticks, and wire brushes...Our team excels at handling complex cavities, narrow ribs, and small-radius corners, ensuring that even the most intricate areas achieve the desired finish and gloss level.

• Advantages: Highly flexible and ideal for small molds or complex geometries; allows precise local touch-ups.

• Disadvantages: Relatively low efficiency; relies heavily on the technician’s skill and tactile judgment.

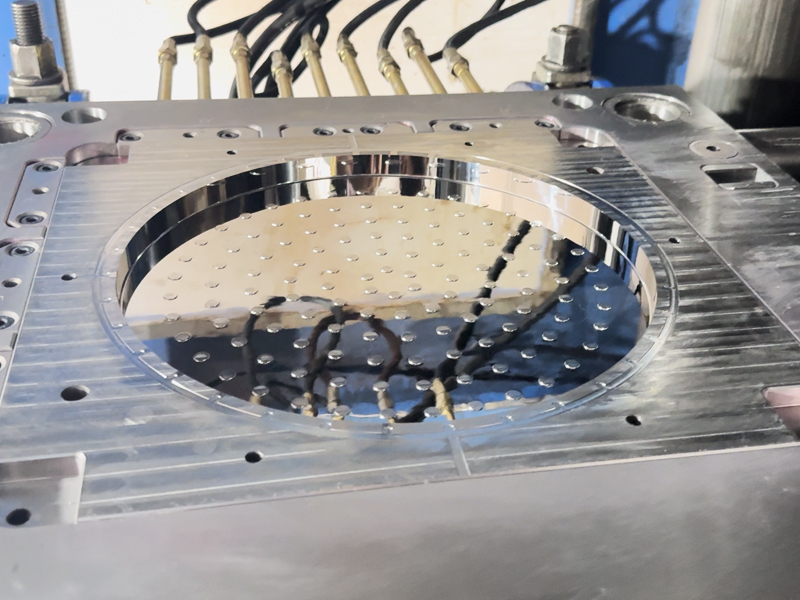

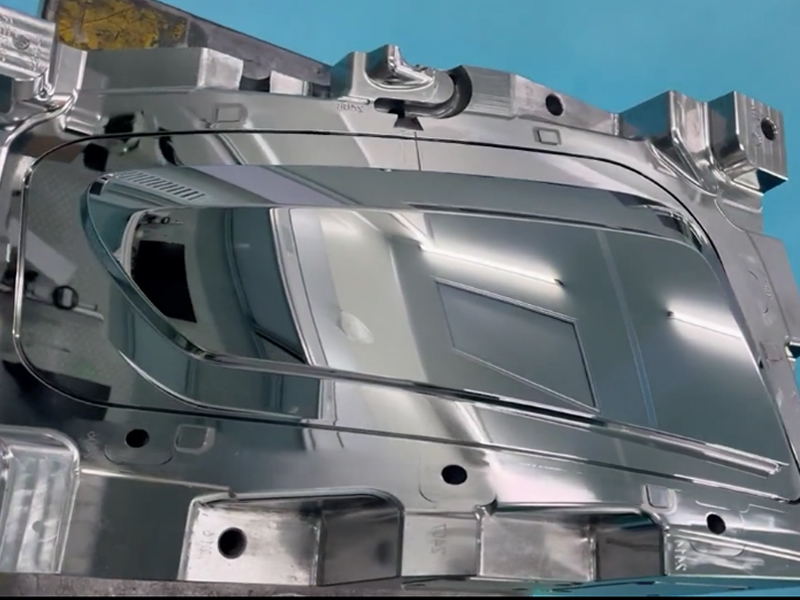

2. Mirror Polishing

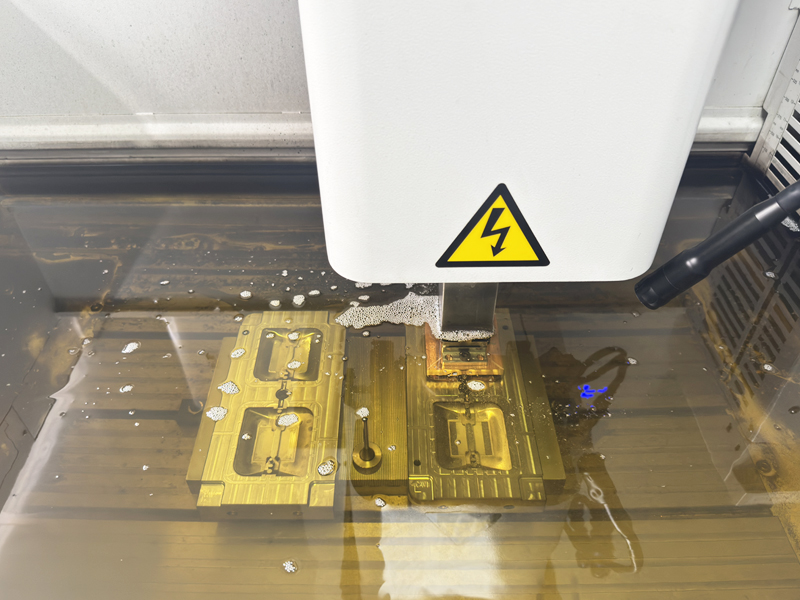

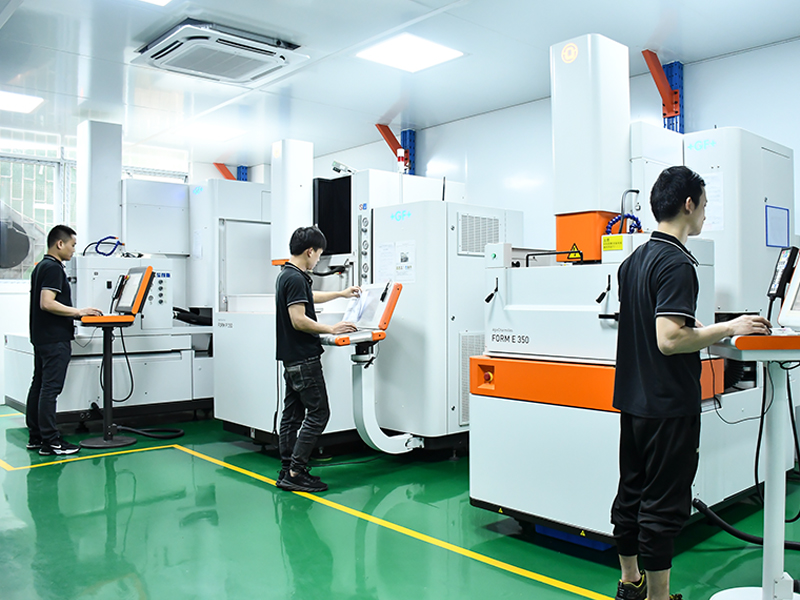

Our mirror EDM machine is Charmilles brand. And we can directly make the international standard VDI textures. The surface smoothness can reach about Ra0.1, and the ordinary machine is about 0.2.

• Advantages: Make a mirror surface, no need manual polishing, can save labor cost; ideal for transparent parts and high-gloss housings.

• Disadvantages: Complex process, longer lead time, and higher cost.

3. Mechanical Polishing

Alpine Mold operates a complete set of imported grinding and polishing equipment, including high-speed polishers, flat polishing tables, and vibratory polishing machines. These systems enable efficient and uniform initial to intermediate polishing for large surface areas—especially for large molds such as consumer product housings.

• Advantages: Efficient and consistent; well-suited for polishing large flat surfaces.

• Disadvantages: Improper operation may cause surface irregularities, waviness, or localized deformation.

4. Electrolytic Polishing

To meet the demands of high-precision mold polishing in mass production, Alpine Mold is equipped with standardized electrolytic polishing workstations, operated by experienced specialists. Key parameters such as voltage, current, and temperature are strictly controlled to ensure a uniform mirror-like finish across the entire surface.

• Advantages: High efficiency and excellent uniformity; capable of achieving mirror-level finishes.

• Disadvantages: Requires specialized equipment and a controlled environment; must be operated by trained personnel.

5. Chemical Polishing

For molds with complex geometries or areas that are difficult to reach with mechanical tools, Alpine Mold offers customized chemical polishing solutions. Based on the product’s shape and material properties, high-purity chemical agents are used to achieve uniform surface dissolution without physical contact.

• Advantages: Uniform surface treatment without mechanical damage; ideal for precision curved surfaces.

• Disadvantages: Requires strict control of time and chemical concentration to avoid over-etching.

6. Ultrasonic Polishing

For high-precision mold projects, Alpine Mold uses ultrasonic polishing systems combined with fine abrasive media. Through high-frequency vibration, this technique enables precise polishing of difficult-to-access areas such as deep cavities, sharp corners, and narrow grooves—making it indispensable for premium mold finishing.

• Advantages: Excellent for polishing blind spots, micro-features, and intricate geometries; high accuracy.

• Disadvantages: High equipment cost; requires specialized operator training.

IV. How to Select Appropriate Mold Polishing Methods

Selecting polishing methods for injection molds requires comprehensive consideration of material properties, product applications, surface quality requirements, and cost control. Below are Alpine Mold’s key criteria:

Injection Mold Polishing Method Selection Standards Table

Selection Criteria	Specific Conditions	Recommended Polishing Method	Technical Specifications	Application Examples
Surface Appearance Requirements	Mirror finish (Ra ≤0.05μm)	Mirror/Electrolytic/Ultrasonic Polishing	Charmilles mirror EDM machining achieves VDI 3300 A0 grade, reducing 60% manual labor	Transparent parts, optical lenses, premium electronics housings
	Matte finish (Ra 0.2–0.4μm)	Mechanical + Manual Polishing	Stepwise sandpaper grinding (#800→#3000), 40% cost reduction	Appliance housings, toys, industrial components
	Non-cosmetic (Ra ≥0.8μm)	Basic Mechanical Polishing	Coarse grinding/sandblasting, <15 mins per part	Internal structural/functional parts
Mold Steel Type	High-hardness steel (S136/NAK80/H13)	Mirror/Electrolytic Polishing	Pulse electrolytic technology for HRC50+ steel, surface consistency error <5%	Automotive lamp housings, medical device molds
	Pre-hardened steel (P20/738)	Mechanical + Anti-deformation Polishing	Material removal ≤0.02mm/pass with temperature-controlled polishing	Appliance housings, packaging molds
Cavity Complexity	Deep cavities/ribs/blind zones (depth-to-width ratio >5:1)	Ultrasonic/Chemical Polishing	40kHz ultrasonic cavitation achieves 98% coverage	Automotive interiors, precision gear molds
	Flat/simple geometries	Mechanical + CNC Polishing	Optimized automated paths improve efficiency by 3x	Flat panels, standard container molds
Production Volume & Lifespan	High-volume (>500k cycles)	Electrolytic/Mirror EDM Polishing	Retains >90% hardened layer integrity, prevents gloss degradation	Beverage cap molds, smartphone housings
	Low-volume (<100k cycles)	Hybrid Manual + Mechanical Polishing	35% cost savings, adaptable to design changes	Prototype molds, customized product molds
Brand Positioning & Budget	Premium market (>30% premium)	Multi-process Polishing (Mirror + Ultrasonic)	Achieves 12K-grade mirror finish with 50% longer cycle time	Luxury packaging, optical instruments
	Cost-sensitive projects	Standardized

V. Key Considerations for Injection Mold Polishing

Injection mold polishing is a critical process to enhance both the surface quality of the final product and the lifespan of the mold itself. Alpine Mold summarizes the following key points to ensure optimal polishing results:

1. Avoid Over-Polishing to Prevent Micro-Cracks

Excessive high-pressure polishing over extended periods can induce stress concentration on the mold surface, leading to metal fatigue and the formation of "orange peel" texture or micro-cracks.

2. Prevent Uneven Polishing to Ensure Consistent Surface Finish

Inconsistent polishing pressure or direction may cause localized bright spots or shadows, adversely affecting the uniformity and appearance of the molded parts.

3. Control Polishing Pressure and Duration

Polishing parameters should be carefully adjusted according to different mold areas and material hardness to avoid localized overheating or deformation.

4. Select Appropriate Polishing Tools and Consumables

Different stages of polishing require tools with specific grit sizes—such as oil stones, sandpaper, diamond paste, and polishing wheels—and skipping grit grades is strictly prohibited.

5. Pay Attention to Mold Rust Prevention

After polishing, it is essential to promptly clean off any residues and apply rust preventive oil to protect the mold surface from oxidation caused by moisture and air exposure.

6. Enhance Surface Inspection of Polished Areas

Post-polishing inspection using microscopes, gloss meters, and other surface analysis equipment is necessary to detect any scratches, pores, or etching marks.

7. Regular Maintenance of Mold Polished Surfaces

During mold usage, polished areas should be periodically inspected for wear and promptly repaired to maintain consistent product surface quality.

VI. Conclusion

Selecting the right mold polishing method depends on factors like surface finish requirements, mold complexity, steel type, and budget. Each method has its strengths—only by choosing wisely can you achieve the best balance between mold performance and part quality.

We hope this blog helps you quickly identify the most suitable polishing solution for your project. If you have any injection mold requirements or want to discuss more details about injection mold polishing for your project, please feel free to contact Alpine Mold. We are ready to provide you with professional, efficient, and customized services tailored to your needs.
