How To Achieve Optimal Wall Thickness in Injection Molding?

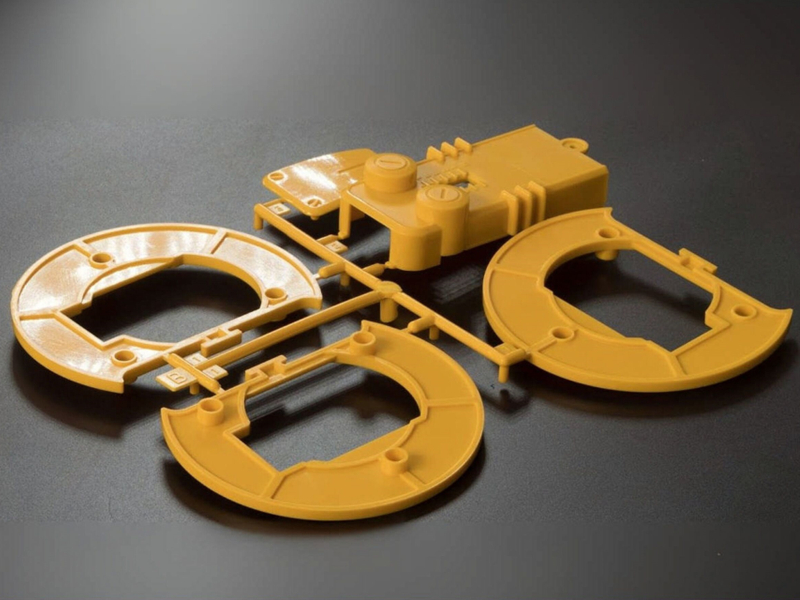

Introduction

Injection molding is a widely used manufacturing process for producing plastic parts with high precision and efficiency. One crucial factor that greatly influences the quality and cost of injection molded parts is wall thickness. The thickness of the walls in a plastic part can have a significant impact on its functionality, aesthetics, and manufacturability. Achieving the right wall thickness is essential for the success of any injection molding project.In this blog post, we will delve into the fascinating world of wall thickness in injection molding.

What is Wall Thickness in Injection Molding?

Wall thickness refers to the measurement of the thickness of the walls in a plastic part that is being injection molded. It is a critical parameter that directly affects the overall performance and quality of the final product. The wall thickness can vary throughout the part, depending on design requirements and functionality. Achieving the appropriate wall thickness is crucial for ensuring optimal functionality, structural integrity, and aesthetics of the molded part.

Challenges in Achieving Uniform Wall Thickness

Achieving uniform wall thickness in injection molded parts can be a complex task, especially when dealing with designs that have intricate geometries or varying thickness requirements. Several challenges arise in the pursuit of uniform wall thickness, and understanding these challenges is crucial for producing high-quality molded parts. Let's explore some of the common hurdles faced in achieving uniform wall thickness:

A. Complex Designs and Their Impact on Uniform Wall Thickness

Complex designs, such as parts with intricate features, curves, or varying cross-sections, can pose challenges in maintaining uniform wall thickness. These designs often require different thicknesses in specific areas to meet functional requirements. However, transitioning between different wall thicknesses smoothly can be difficult, leading to inconsistencies and variations in the final part. Design complexity can also make it challenging to ensure proper material flow during the injection molding process, affecting the uniformity of the wall thickness.

B. Common Defects Caused by Improper Wall Thickness

Improper wall thickness can lead to various defects that affect the quality and functionality of injection molded parts. Some of the common defects caused by improper wall thickness include:

Warpage: Uneven cooling rates caused by varying wall thicknesses can result in warping or distortion of the part. This can lead to functional issues and affect the part's fit and assembly with other components.

Sink Marks: Uneven cooling and solidification of molten plastic in areas with thicker walls can cause sink marks on the surface of the part. Sink marks are depressions or indentations that can be visually unappealing and compromise the smoothness of the part's finish.

Voids: Inadequate material flow and packing pressure in areas with thinner walls can result in voids or air pock

Short Shots: Insufficient material flow due to excessively thick walls can result in short shots, where the mold cavity is not completely filled. This leads to incomplete or defective parts that cannot be used.

Flow Lines: Inconsistent wall thickness can create flow lines on the surface of the part. Flow lines are visible streaks or lines caused by the flow of molten plastic meeting at different points during filling. They can impact the aesthetics of the part and indicate potential weak points.

Warping and Dimensional Inaccuracies: Non-uniform wall thickness can cause warping, where the part deforms or bends due to uneven cooling or internal stresses. This can result in dimensional inaccuracies and affect the part's functionality and fit within an assembly.

Best Practices for Wall Thickness in Injection Molding

Design for Manufacturability: Collaborating closely with your injection molding partner like Alpine Mold from the early stages of product design is essential for optimizing wall thickness. Their expertise and knowledge of the injection molding process can help identify potential challenges and provide valuable insights to achieve the desired specifications. By considering manufacturability factors such as draft angles, material flow, and mold design, you can ensure that the final product is both functional and efficiently manufacturable.

Rule of Thumb: As a general guideline, the recommended wall thickness for injection molding ranges from 1 to 5 mm. However, it's important to note that this range can vary depending on several factors. These factors include the specific plastic material being used, part geometry, intended application, and considerations for mold flow dynamics. Working closely with your injection molding partner will help you determine the optimal wall thickness for your specific project, taking into account these variables.

Consistency is Key: Maintaining consistent wall thickness throughout the design is crucial for achieving high-quality parts. Avoid abrupt transitions or drastic variations in wall thickness, as they can lead to uneven material flow, cooling inconsistencies, and potential defects such as sink marks or warping. Gradual transitions and uniform wall thickness promote smoother material flow, improve part aesthetics, and enhance structural integrity.

Tapered Walls: The walls are tapered. In other words, the thickness of the walls is not the same from the bottom to the top. Typically, the bottom of the wall is slightly thicker and gradually tapers thinner with a draft angle of at least 0.5 degrees. Without the draft angle, the part would not be able to cleanly eject from the mold and would be prone to damage. Therefore, applying draft angles to vertical walls and surfaces is crucial for proper ejection from the mold and maintaining the integrity of the part.

Rib Design: Utilize ribs strategically to enhance the structural integrity of the part. Ensure that the rib thickness is no more than 60% of the adjacent wall thickness to prevent sink marks and flow restrictions.

Material Selection: Different plastic materials have varying flow characteristics and shrinkage rates. Consider these factors when selecting the material for your injection molding project to ensure optimal wall thickness and dimensional accuracy.

General material thickness guidelines

When it comes to injection molding plastics, achieving the optimal wall thickness is crucial for successful manufacturing. While industry guidelines provide a range of measurements in inches (in) and millimeters (mm), it's important to note that these numbers are general recommendations. To truly maximize your results, it's essential to partner with an experienced injection molding manufacturer, such as Alpine Mold, who can offer valuable Design for Manufacturability (DFM) feedback and insights gained from 21 years of experience in the field.

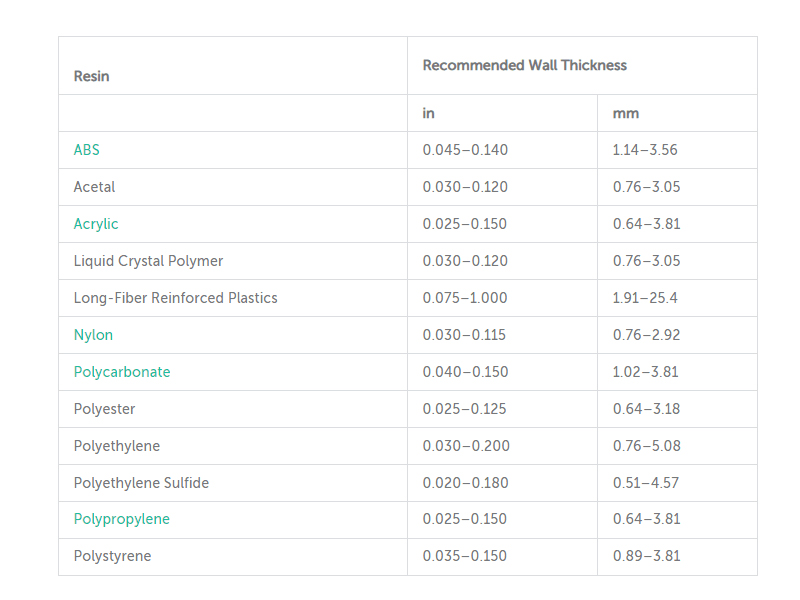

Below table are the suggested wall thicknesses for several commonly used materials in injection molding, providing guidance on achieving optimal results for your project.

Conclusion

Maintaining uniform wall thickness in plastic injection molding is vital for both the appearance and strength of your product. However, achieving this consistency can be a complex task with various factors to consider. To streamline this process, it is crucial to collaborate with an experienced injection molding company that possesses the necessary expertise and skills to successfully execute your project. Alpine Mold is the ideal partner to ensure seamless injection molding projects with flawless wall thickness, eliminating any potential issues.
