What Is Injection Mold Texture?

1. Introduction

Injection mold texture is an essential process in the realm of plastic part manufacturing, offering a means to improve surface finishing and elevate the overall appeal of products. By creating diverse patterns and textures on the mold surface, injection mold texture enhances both the visual aesthetics and functional properties of the final plastic parts. In this blog post, we will delve into the world of injection mold texture, exploring its purpose, techniques, and the impact it has on product design and quality.

2. What is Injection Mold Texture?

Injection mold texture involves the application of various surface patterns to the mold cavity, resulting in corresponding textures on the molded plastic part. These textures can range from simple patterns like stripes and grains to more intricate designs, including wood, leather, and satin finishes. The aim of injection mold texture is to impart a distinct look and feel to the product, making it visually appealing and adding value to its overall presentation.

3. The Purpose of Injection Mold Texture

The injection mold texture has 2 main purpose.

Firstly, it enhances the surface finishing of plastic parts, eliminating the appearance of imperfections such as weld marks, sinking marks, or rough surfaces.

Secondly, it allows for the creation of unique and eye-catching designs, enabling product differentiation and branding in the market.

Mold texture is particularly crucial in industries such as automotive, consumer goods, electronics, and medical devices, where both functionality and aesthetics play a significant role.

4. Varieties of Injection Mold Texture

Injection mold texture offers a wide range of possibilities when it comes to surface patterns and finishes. Here are a few commonly used textures:

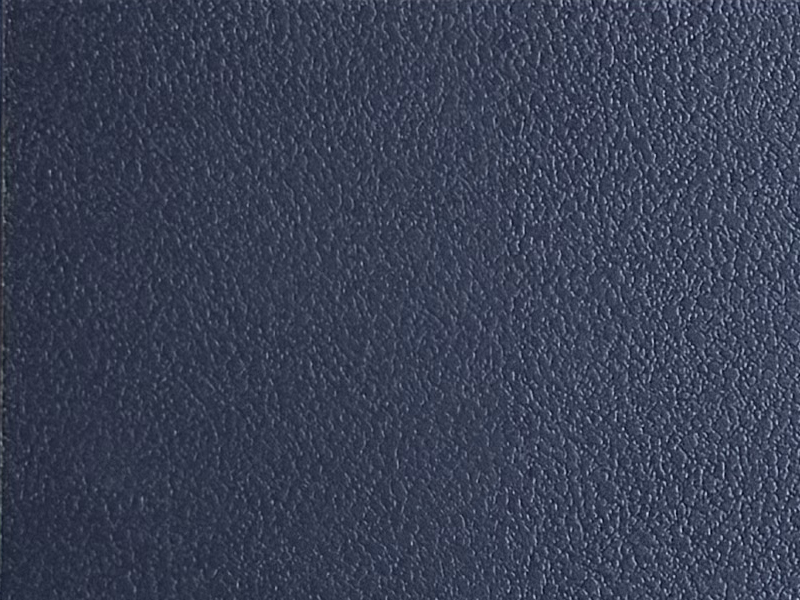

Leather Texture:

The leather texture mimics the look and feel of genuine leather. It adds a touch of sophistication and elegance to products, making them visually appealing and tactilely pleasing. This texture is often utilized in applications where a luxurious or high-end aesthetic is desired, such as automotive interiors, luxury goods, and furniture.

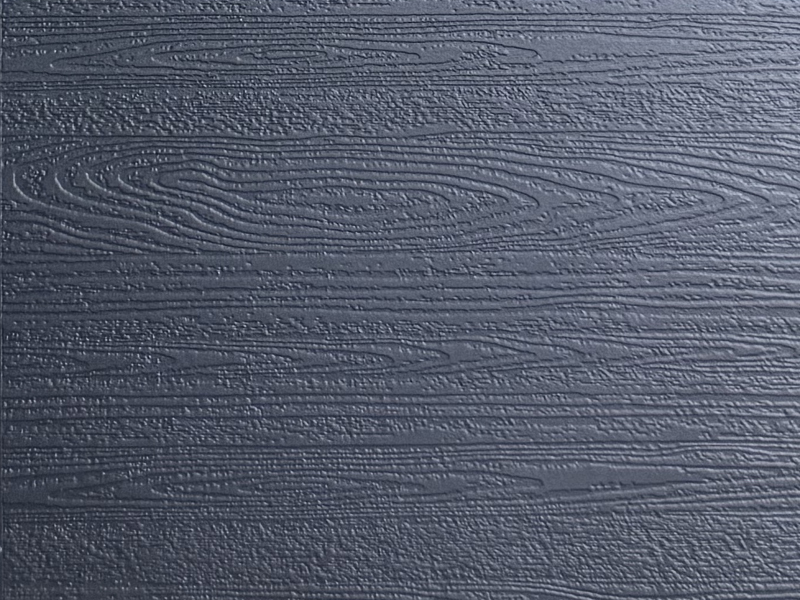

Wood Grain Texture:

The wood grain texture replicates the natural patterns found in different types of wood. It can give plastic parts the appearance of real wood, making them more aesthetically pleasing and blending harmoniously with wooden elements in the environment. This texture is often used in applications such as furniture, flooring, and decorative items.

Satin Texture:

The satin texture creates a smooth and lustrous surface finish. It provides a subtle sheen and a luxurious appearance to plastic parts, adding a touch of elegance. This texture is commonly employed in industries like cosmetics, electronics, and household appliances, where a sleek and refined look is desired.

Geometric Patterns:

Geometric patterns involve the use of precise lines, angles, and shapes to create visually appealing designs. These patterns can range from simple geometric shapes like squares and circles to more intricate designs. The versatility of geometric patterns allows for endless possibilities in product design, making them suitable for a wide range of applications.

Textured Grains:

Textured grains refer to patterns that mimic natural textures like stone, marble, or granite. These textures provide a realistic and tactile experience, giving plastic parts the appearance of natural materials. Textured grains are often used in architectural applications, home decor, and automotive interiors to achieve a sophisticated and premium look.

Custom Patterns:

In addition to the standard textures mentioned above, custom patterns can be created based on specific design requirements or brand identity. These patterns can include company logos, unique shapes, or intricate designs that are tailored to the product or brand. Custom patterns allow for maximum creativity and personalization, making the product truly distinctive.

5. The Steps of Texturing

The injection mold texture process involves several essential steps:

Cleaning: The mold cavity surface is thoroughly cleaned and degreased to ensure optimal adhesion of the texture.

Sealing: Non-textured areas of the mold cavity are sealed using adhesive paper or corrosion-resistant coatings to protect them from the texturing process.

Drying: The anti-corrosion coating applied during sealing is dried to prepare the mold for texture application.

Surface Treatment: The cavity surface to be textured is carefully wiped to remove any dirt or contaminants, ensuring a clean and smooth texture application.

Texture Application: A coating is applied to the textured area, followed by soaking it in a corrosive fluid. Repeated soaking is often necessary to achieve the desired texture.

Sandblasting: This step involves using different sands and pressure levels to remove residue liquids, adjust the gloss of the texture, and achieve different levels of surface finish.

Post-Treatment: After texturing, the mold components are cleaned and sprayed with a rust protection agent before being returned to the mold shop.

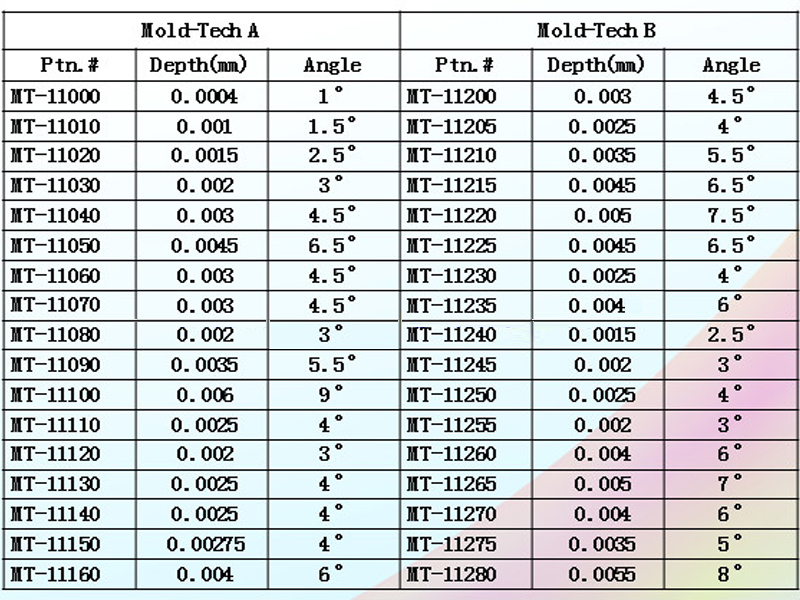

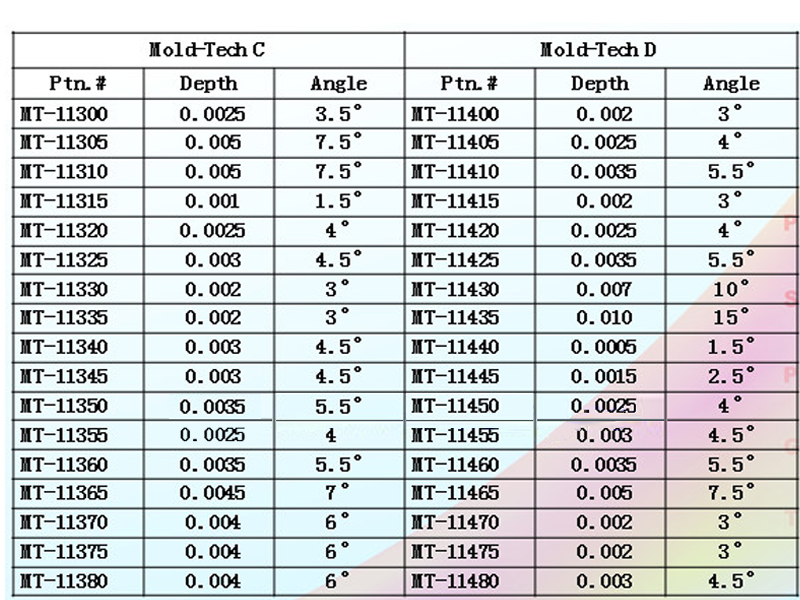

6. Mold Texturing Depth

When designing a mold with texture, the depth of the texture must be considered to ensure proper mold release and prevent scratches on the product surface. Draft angles are adjusted accordingly to accommodate deeper textures and maintain product quality.

7. Conclusion

Injection mold texture is a vital process that adds value to plastic parts by enhancing their visual appeal and surface finishing. With various texture options available, product designers can create unique and distinguishable designs that set their products apart in the market. By understanding the purpose, techniques, and impact of injection mold texture, manufacturers can unlock opportunities for creativity, aesthetics, and improved customer satisfaction.

Working with a skilled injection mold manufacturer like Alpine Mold can greatly assist you in making informed decisions during the design phase. With our expertise and guidance, you can navigate through the complexities of texture selection, ensuring that your parts not only look visually appealing but also meet your functional requirements.Contact us to start your next project!
