Short Shots in Injection Molding: Causes And Solutions

Introduction

Injection molding stands as a fundamental and remarkably versatile process used for the mass production of a diverse range of plastic products. Yet, in the world of manufacturing, no process is free from challenges, and one common issue that arises in injection molding is the phenomenon known as a "short shot." This blog will provide a more in-depth exploration of what a short shot is, the factors that underlie it, and a thorough examination of the strategies required to prevent and address this issue.

What is Shot shots in Injection Molding?

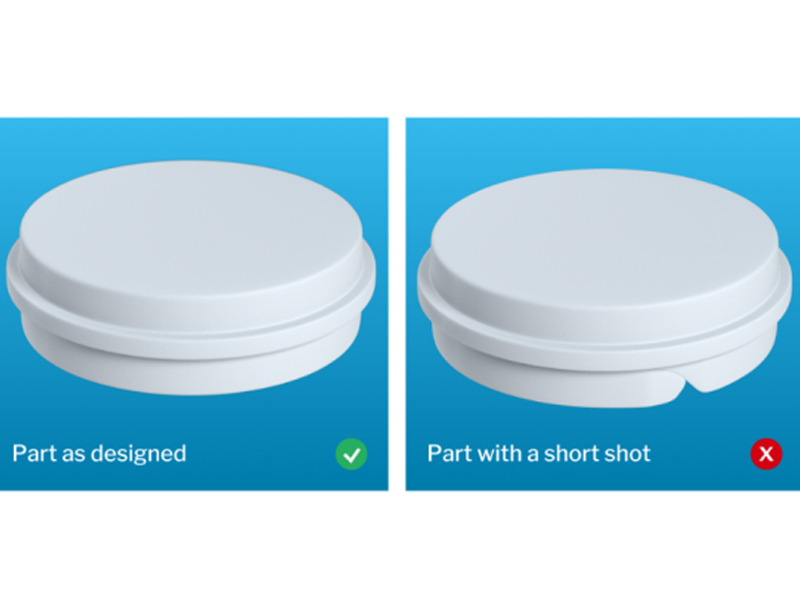

A short shot in injection molding occurs when the mold cavity is not completely filled during the injection process. This results in voids, sections that are missing, or parts that are incomplete. Essentially, the volume of plastic material injected falls short of fully occupying the mold, leading to the creation of a product that may exhibit visible defects, reduced structural integrity, or, in some instances, may render the component entirely unusable.

What Are the Causes of Short Shots in Injection Molding?

Understanding the root causes of short shots is critical to effectively prevent and address this issue. Several factors contribute to the occurrence of short shots:

1. Insufficient Injection Material: Short shots can be caused by inadequate quantities of plastic material injected into the mold. This may occur due to inaccuracies in material measurements or discrepancies in the material feed system. Ensuring precise measurements and material delivery is crucial to prevent this issue.

2. Low Injection Temperature: Material temperature plays a pivotal role in the injection molding process. When the material temperature is too low, it can significantly reduce the plastic's flowability. Consequently, the material may solidify prematurely, failing to reach all corners of the mold cavity and resulting in a short shot.

3. Inadequate Injection Pressure: If the injection pressure is insufficient, it can hamper the material's ability to reach and occupy every part of the mold cavity. This often occurs when resistance or obstacles within the mold obstruct material flow. Adjusting the pressure to overcome these challenges is a potential solution.

4. Mold Design Issues: Mold design imperfections, such as poor venting, improper gate placement, or the presence of complex geometries, can obstruct the even distribution of plastic material. Identifying these design flaws and rectifying them is crucial to preventing short shots.

Comprehensive Prevention and Solutions

1. Enhancing Material Injection Precision

• Implement real-time monitoring of material injection volumes with flow meters.

• Set tolerance limits for material measurements (e.g., ±0.5%) for early detection of deviations.

• Utilize automated material delivery systems with precise control mechanisms for accuracy.

2. Ensuring Optimal Injection Temperature

• Maintain material temperature within the recommended range of 200-240°C consistently.

• Use temperature sensors with ±1°C accuracy to monitor material temperature.

• Install heating systems like barrel heating bands to prevent temperature fluctuations.

3. Optimizing Injection Pressure

• Monitor injection pressure levels using pressure transducers with ±5 psi precision.

• Set optimal pressure thresholds based on mold requirements and material characteristics.

• Adjust injection pressure profiles in real-time based on pressure data for complete cavity filling.




4. Enhancing Mold Design Efficiency

• Conduct mold flow analysis using simulation software (e.g., Moldex3D) to identify design flaws.

• Improve venting systems by strategically adding venting grooves or vents to enhance material flow.

• Optimize gate locations and geometries based on mold flow analysis results for efficient material distribution.




5. Implementing Mold Maintenance

• Establish a regular maintenance schedule for molds to prevent wear and damage.

• Conduct thorough inspections and cleaning of molds to ensure optimal performance and longevity.

Conclusion

Short shots in injection molding are a persistent challenge, but with a comprehensive approach and a focus on details, they can be effectively prevented. By meticulously managing material and temperature control, optimizing injection pressure, scrutinizing mold design, implementing routine maintenance, injection molding manufacturers like Alpine Mold can significantly reduce the risk of short shots. The ultimate result is not only improved product quality but also heightened efficiency and cost-effectiveness in the injection molding process.

Alpine Mold is dedicated to offering a comprehensive "one-stop shop" services for our customers, transforming their concepts into reality. With 22 years of expertise in injection molding, we are equipped to effectively prevent short shots and provide optimal solutions. We take immense pride in delivering top-notch products and exceptional service to our clients. If you have a new project, please feel free to reach out to us promptly.
