In the international mold export sector, ensuring seamless compatibility between molds and customers' injection molding machines is key to successful delivery. Mismatch can lead to low production efficiency, equipment damage, and quality issues. As a company with years of experience in mold manufacturing, Alpine Mold is dedicated to providing high-quality, precisely matched mold solutions for global customers. Through rigorous processes and professional technical support, we ensure that every mold undergoes strict testing and verification before delivery, helping customers achieve efficient and stable production.
This article explores the core issues of mold export and injection molding machine compatibility, drawing on Alpine Mold's extensive experience to discuss comprehensive solutions from information gathering to design, manufacturing, transport, and after-sales support, ensuring customers can use molds worry-free and maximize production value.
In practice, we often encounter incompatibilities between injection molding machines and plastic injection molds from different regions, primarily reflected in the following aspects:
Deviation in Installation Hole Positions and Template Sizes: Different brands and regions of injection molding machines have significant variations in the installation hole distances and size standards of moving and fixed templates. If customer machine parameters are not communicated promptly, molds may arrive on-site without direct installation capability, requiring secondary processing, which affects project timelines.
Inconsistent Ejection Mechanisms: Common differences include the thickness of ejector plates, stroke lengths, and even ejection methods (mechanical vs. hydraulic). Incompatibility can lead to abnormal product ejection and equipment damage.
Differences in Nozzle/Gate System Interfaces: Variations in nozzle diameters, arcs, and cold/hot runner interface standards affect the flow efficiency of the material melt and the quality of product filling.
Incompatible Cooling System Interfaces: Typically manifesting in different sizes and standards of water connectors, leading to on-site connection difficulties or inability to use the cooling system directly.
Diverse Standards: For example, differences in mold steel grades, electrical specifications, and safety designs across markets like Europe, America, and Asia.
These issues not only increase the difficulty of on-site debugging but also reduce engineering efficiency and the lifespan of plastic injection molds.

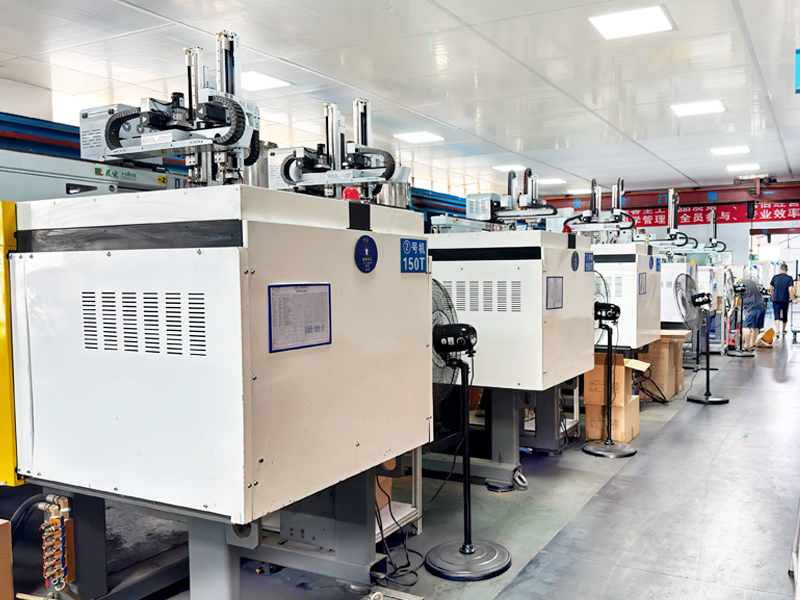

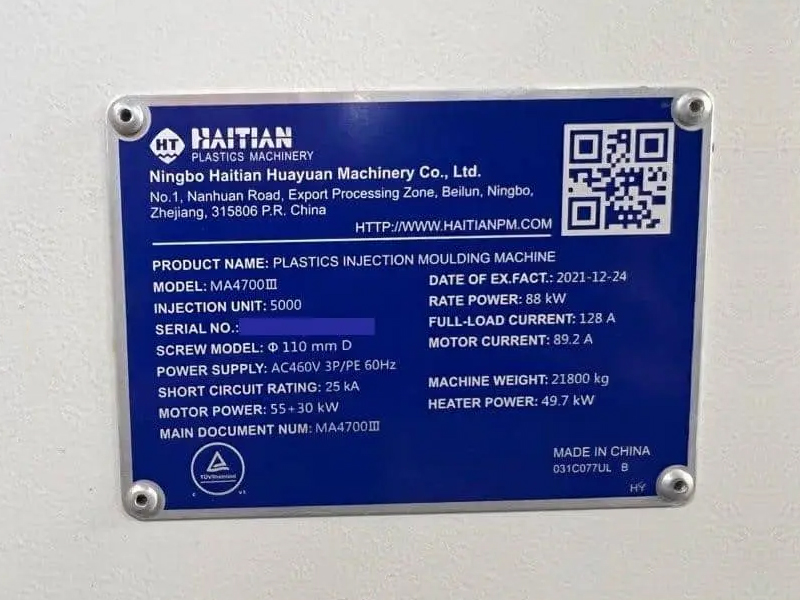

Detailed Collection of Injection Molding Machine Parameters: Through thorough communication with customers, gather detailed information on the injection machine brand, model, template sizes, ejector specifications, nozzle structure, and cooling system interfaces.
Parameter Category | Key Indicators | Checkpoints | Design Specifications |
Clamping Force | Maximum Clamping Force (Tonnage) |
|
|
Mold Dimensions | Maximum/Minimum Mold Thickness and Length/Width (mm) |
|
|
| Installation Hole Positions | Template Hole Distribution and Diameter (mm) |
|
|
Nozzle Matching | Nozzle Diameter/Radius (mm/R) |
|
|
Injection Capacity | Maximum Injection Weight (g/cm³) |
|
|
Ejection System | Ejection Stroke/Ejection Force (mm/kN) |
|
|
Template Thickness | Moving/Fixed Template Thickness (mm) |
|
|
Adaptation to International Standards and Regional Differences
Standard System Adaptation:
European and American markets require injection molding tool to meet EUROMAP (Europe) and SPI (American Plastics Industry Association) standards.
Asian markets prioritize Japanese JIS or Chinese GB standards, but special customer requirements must be confirmed.
Regional Design Differences:
Voltage and Interfaces:
Hot runner voltage: USA (110V), Europe (230V), China (220V).
Pneumatic connectors: European standard (DIN/ISO), American standard (NPT).
Safety Regulations:
European CE certification requires emergency stop buttons and safety door interlock devices.
North American UL certification requires the use of flame-retardant cables.
Injection mold design is a crucial step for ensuring smooth production. During this phase, it is essential to communicate with customers to confirm the following important aspects:
Mold Opening Direction and Parting Surface: Determine the injection molding tool opening direction and the rationality of the parting surface design based on the customer’s product design and production needs.
Cooling System: The design of the mold cooling system directly affects the injection cycle and injection molding product quality. It is essential to plan the cooling water route layout and interface type according to the cooling system interfaces of the customer’s injection machine.
Selection of Standardized Parts: Preferentially select internationally standardized injection mold components (e.g., DME, HASCO) to enhance the mold's universality and maintenance efficiency.
By confirming these details during the injection mold design phase, potential issues in later production can be minimized, enhancing customer experience and production efficiency.
Injection mold manufacturing is an important transitional phase from mold design to finished injection molded product. Real-time communication and feedback with customers ensure accuracy in the manufacturing process. Key steps include:

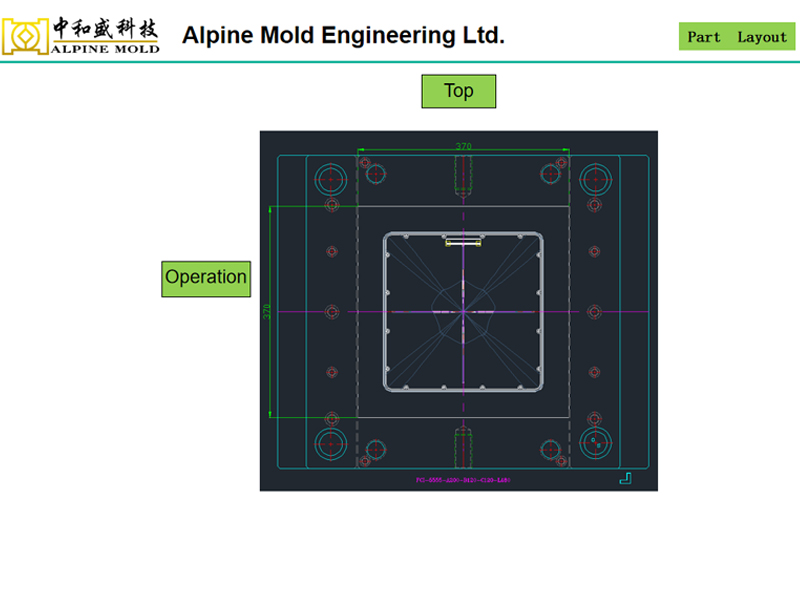

Confirmation of 3D and 2D Drawing Tolerances: Before mold manufacturing begins, confirm the final 3D design drawings and relevant technical details, including mold structure, opening method, parting surface, cooling water route layout, and ejector system design.
Trial Molding Reports: After injection mold manufacturing, multiple trial molds should be arranged to verify performance and injection molding product quality. Alpine Mold records data such as product dimensions, appearance, injection cycle, and ejection effectiveness during trial molding, providing customers with detailed reports and samples.
Before delivering plastic injection molds to customers, ensuring their quality and performance stability is a crucial step. To provide customers with a comprehensive understanding of the mold's condition and operational status, we implement the following inspection and verification measures to ensure the molds are in optimal condition before transport:
6.1 Trial Molding Videos
Before shipment, Alpine Mold records detailed trial molding videos showcasing the operational status of the molds. These videos include the following content:
Mold Opening and Closing Actions: Demonstrating whether the plastic injection mold opening and closing actions are smooth, ensuring stable and uninterrupted operation.
Ejection Actions: Showing the operation of the ejector or other ejection mechanisms to ensure that the ejection system functions accurately and without faults.
Product Forming Quality: Verifying the quality of the injection molded products through trial molding to ensure that the molds can produce plastic products that meet customer requirements.
The trial molding videos serve not only as a visual demonstration of the mold's operational status but also as an important basis for customer acceptance.
6.2 Mold Installation Guidelines
To ensure customers can smoothly install and use the plastic injection molds, we provide detailed installation and usage guidance documents. These documents are tailored to the customer's injection machine specifications and actual usage conditions, mainly including:
Compatibility Instructions: Providing specific guidance on matching parameters such as the customer’s injection machine tonnage, mold installation dimensions, and clamping force, to avoid installation issues.
Detailed Installation Steps: Offering a comprehensive explanation of the entire process from lifting the mold, aligning it, to securing the installation, ensuring customers can install quickly.
Operational Precautions: Listing important considerations for daily use of the injection molding tool, such as lubrication, temperature control, and maintenance cycles, helping customers extend the plastic injection mold's lifespan.
Through these guidance documents, customers can quickly begin using the injection molding tools and reduce risks associated with improper handling.
6.3 Spare Parts List

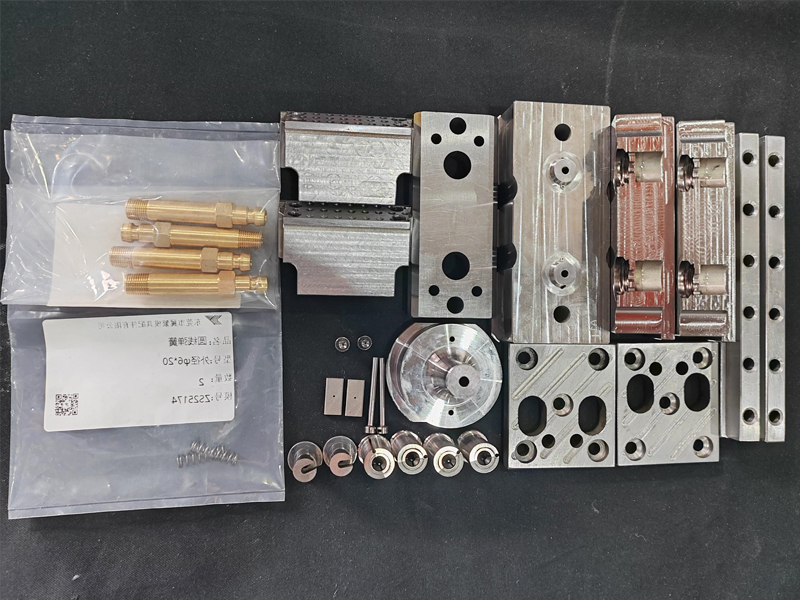

To facilitate future maintenance and upkeep of the injection molding tools, we provide a list of easily worn parts along with the molds. This list includes all components that are prone to wear or need periodic replacement, such as
Springs: Listing the various types and quantities of springs used in the molds.
Ejectors: Providing specifications and quantities of ejectors, ensuring customers can quickly find matching parts for replacement.
Seals and Guide Pillars/Sleeves: Indicating the dimensions and materials of relevant components to facilitate replacements during maintenance.
We also recommend that customers keep a certain quantity of spare parts in stock for unforeseen needs. For all spare parts listed, we can provide subsequent procurement services to ensure customers can timely obtain the required components.
To ensure that injection molding tools are not damaged during transport, we take a series of professional protective measures to deliver the injection molds to customers in perfect condition. These protective measures mainly include the following two aspects:
Before the injection molding tools leave the factory, we conduct thorough rust prevention treatment, with specific steps as follows:
Cleaning the Mold Surface: Before applying rust prevention oil, we thoroughly clean the mold surface to remove oil, dust, and processing residues, ensuring that the rust prevention oil can evenly cover the mold surface.

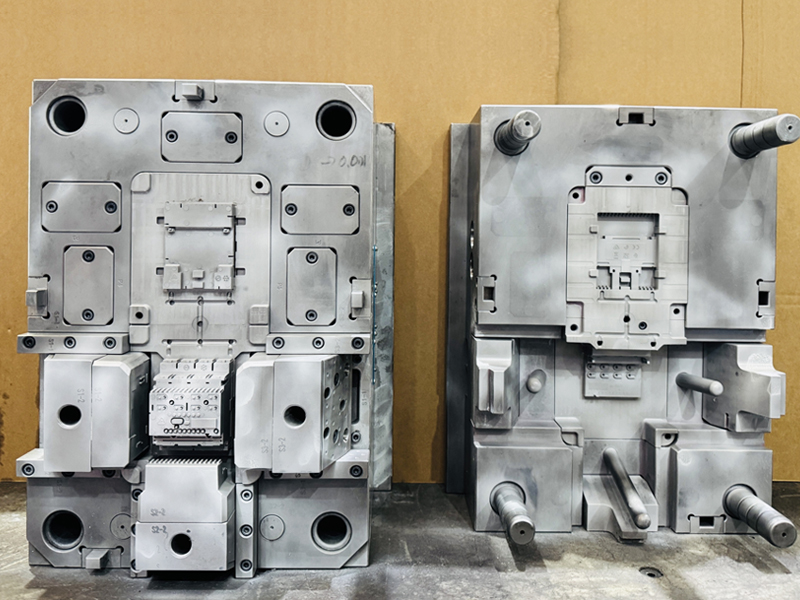

Applying Rust Prevention Oil: We use specialized rust prevention oil to uniformly coat the mold cavity, mold core, guide pillars, guide sleeves, and other metal surfaces, effectively preventing rust caused by moisture or external environments.
Key Parts Protection: Special treatment is applied to critical areas such as ejector holes and exhaust slots to prevent small parts from oxidizing or corroding, which could affect the precision of plastic injection mold.
7.2 Sturdy Packaging and Shock Protection

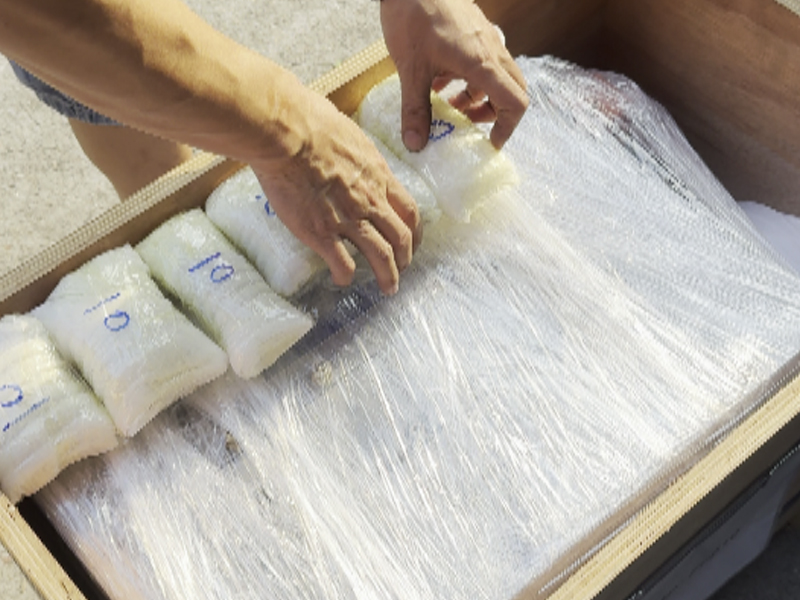

In the packaging stage, we use sturdy wooden boxes and multiple protective measures to ensure that injection molding tools are protected from collision, vibration, or other external damage during transport. Specific measures include:

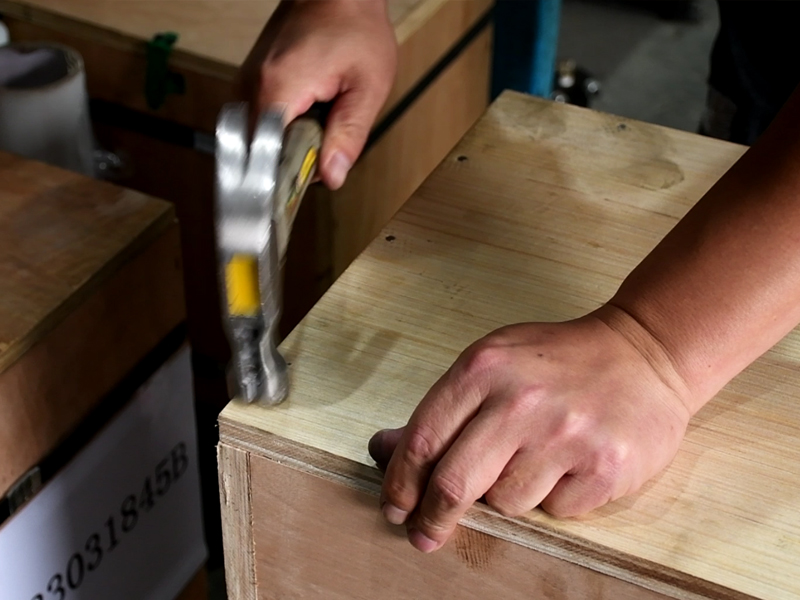

Sturdy Wooden Boxes: We use high-strength wood to create boxes that provide adequate load-bearing capacity and compression resistance. The box size is customized according to the mold dimensions, ensuring that the mold is securely fixed inside and does not shift during transport.
Shock-Absorbing Material Filling: We fill the interior of the wooden boxes with foam, pearl cotton, or bubble wrap to cover all components of the injection mold, absorbing vibrations and impacts during transport.
Waterproof Treatment: We apply waterproof film or coatings to the exterior of the wooden boxes to prevent packaging soaking or mold moisture due to rain or damp conditions during transport.
Fixing Devices: We use straps or clamps inside the boxes to securely fasten the injection molding tools, preventing them from moving or tilting inside the box, further reducing transport risks.
 |  |  |
To ensure that customers can smoothly install and properly use the plastic injection molds, we offer comprehensive technical support services after delivery, promptly addressing any issues that may arise during use. Alpine Mold provides remote guidance:
Video Conference Support: Using video conferencing tools, we guide customers in real-time through the installation steps of the molds, including lifting, securing, and aligning with the injection molding machine. We focus on checking the compatibility between the injection molding tools and the injection machine to ensure a smooth installation process.
Debugging Process Guidance: During the mold debugging phase, we remotely monitor the trial operation of the injection molding tools, helping customers optimize injection parameters such as pressure, speed, time, and temperature, ensuring that the molds can efficiently and stably produce qualified plastic injection products.
Problem Diagnosis and Solutions: If customers encounter issues during installation or debugging, our technical team responds promptly, assisting in troubleshooting via video calls or remote tools and providing solutions.
In the mold export process, ensuring precise compatibility between injection molding tools and injection molding machines reflects the manufacturer’s technical strength and is fundamental to efficient customer production. As a mold manufacturing enterprise with 23 years of experience, Alpine Mold is committed to meeting customer needs through strict design validation, manufacturing inspection, and technical support.
From information gathering and design confirmation to protective measures during transport and after-sales support, Alpine Mold strives for excellence at every stage, ensuring that every mold meets high customer standards. Contact us to choose a trusted mold solution expert.
