How To Design Gating System for Precision Plastic Mold

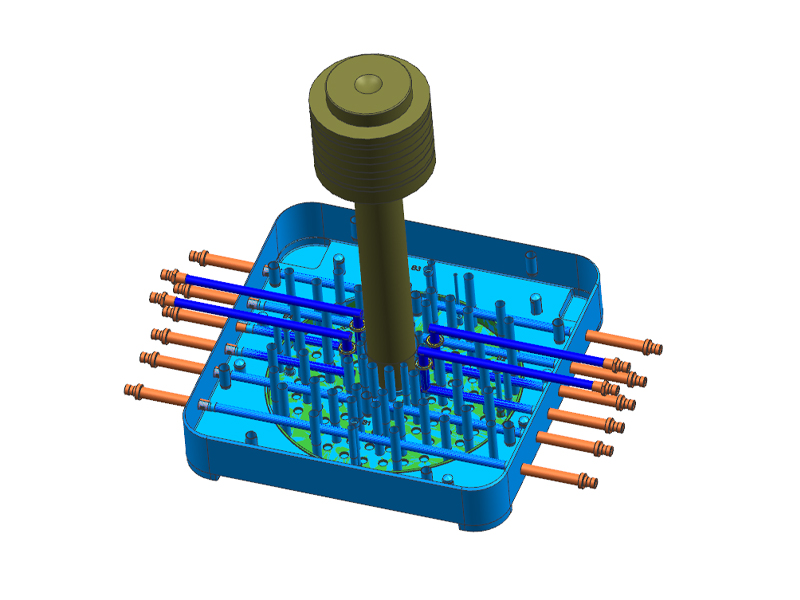

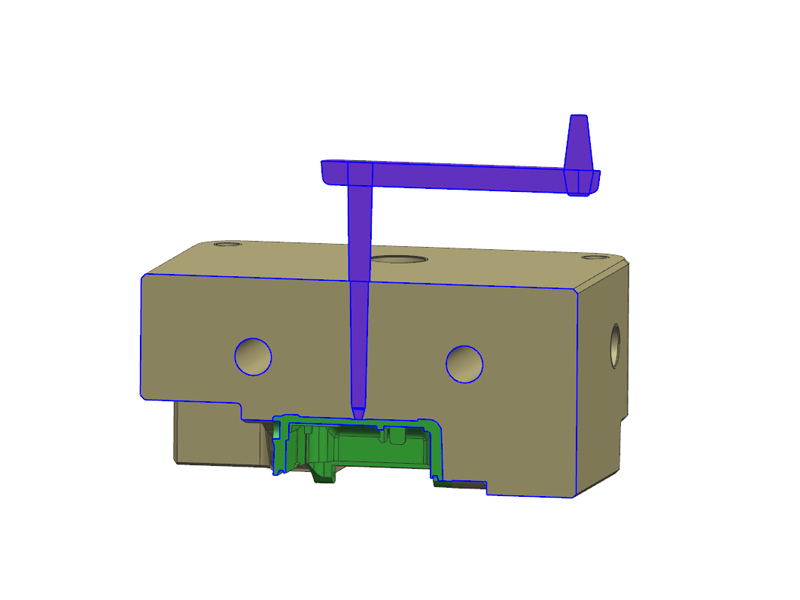

The gating system plays a crucial role in precision plastic injection molding, as it directly influences mold performance, part quality, and overall production efficiency. It consists of the sprue, runner, and gate, each of which must be carefully designed to ensure smooth melt flow and optimal part formation.

Effective gating system design for a precision plastic mold involves selecting the proper sprue size, runner dimensions, gate type, and especially the gate location—an element that greatly impacts how the cavity fills and how the final product performs. Incorrect gate placement can lead to common molding defects such as warpage, short shots, or visible weld lines.

In this blog, we will explore how to design a gating system for precision plastic injection molds, highlighting essential design principles and best practices that help achieve high-quality, consistent injcetion molding product results.

1. Minimize bends in runners to reduce flow resistance, and ensure a smooth runner surface with a roughness of Ra 1.6–0.8 µm to enhance material flow in precision plastic molds.

2. Consider the precision plastic injection mold configuration—whether it is single-cavity or multi-cavity. The gating system should be laid out symmetrically with respect to the mold’s centerline.

3. For parts with large projected areas, avoid placing the gate on just one side, as this may lead to unbalanced injection pressure and result in deformation or warping in the precision plastic mold.

4. Design the gate for easy removal, ensuring that no visible marks are left on the final product after trimming, to maintain the surface appearance of plastic injection molded parts.

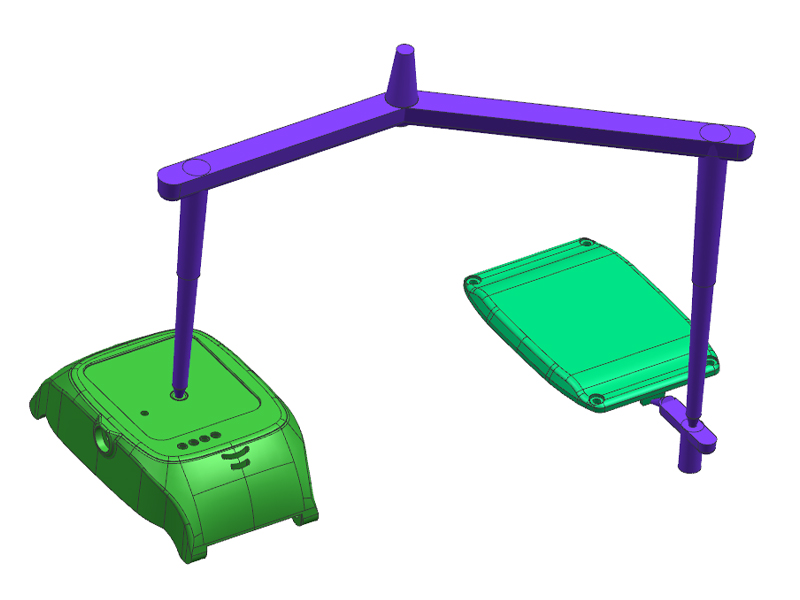

5. Avoid combining significantly different part sizes within a single multi-cavity precision plastic mold to prevent uneven flow distribution.

6. Prevent molten plastic from directly hitting thin core pins or inserts in precision plastic molds, which could cause them to bend or break due to concentrated pressure.

7. Always select the shortest flow path possible while still ensuring proper venting and complete cavity filling in your precision plastic injection mold, in order to reduce fill time.

8. Ensure that molten plastic flows smoothly and uniformly in the precision plastic mold, avoiding turbulence or vortex formation, and allowing air to vent properly from the cavity.

9. For high-volume production, optimize the gating system in the precision plastic injection mold to minimize cooling time and reduce cycle time, while maintaining product quality.

10. Due to shrinkage at the sprue location, leave a machining or finishing allowance if high precision is required near the sprue gate area of the precision plastic mold.

11. Position the gate so that molten plastic flows into thick-walled and open areas first in the precision plastic injection mold to ensure consistent filling and reduce internal stresses.

12. Design the gate system to avoid weld lines in precision plastic molds, or at least ensure they occur in non-critical areas of the part to preserve structural and aesthetic integrity.

Conclusion

A well-designed gating system is essential for achieving high-quality, defect-free plastic injection molded parts. By carefully considering the layout, gate position, runner dimensions, and flow behavior, percision plastic injection mold manufacturers can significantly improve both product quality and production efficiency. If you’re looking for expert guidance or custom solutions for your next precision plastic mold and injection molding project, Alpine Mold’s engineering team is ready to assist.
