High-Density Polyethylene (HDPE) is one of the most widely used thermoplastics in the world — valued for its strength, flexibility, chemical resistance, and low cost. From consumer products to industrial components, HDPE is an ideal material for injection molding when durability and performance are key.
In this guide, we’ll take you through the essentials of HDPE injection molding, including its step-by-step process, material properties, design considerations, and how to work with a trusted HDPE mold manufacturer like Alpine Mold. Whether you're a product designer, engineer, or sourcing manager, this guide will help you better understand how to create custom plastic parts using HDPE — efficiently and effectively.
High-Density Polyethylene (HDPE) is a thermoplastic polymer made from petroleum, known for its high strength-to-density ratio, excellent chemical resistance, and outstanding durability. As a material, HDPE is commonly used in injection molding to produce a wide range of custom plastic parts that require structural integrity, low moisture absorption, and cost-efficient production.
High Strength and Rigidity：HDPE exhibits a high tensile strength compared to many other plastics, making it suitable for structural applications and mechanical components.
Excellent Chemical Resistance：It resists a wide variety of solvents, acids, and bases, which makes it ideal for industrial applications exposed to harsh environments.
Good Flexibility and Impact Resistance：Despite its strength, HDPE remains flexible, especially under low temperatures, and has strong impact resistance — critical for parts that experience stress or deformation.
Low Water Absorption：HDPE does not absorb moisture, making it ideal for outdoor and high-humidity environments.
Lightweight and Recyclable：Its low density means lower material weight without compromising durability. HDPE is also fully recyclable, aligning with modern sustainability requirements.
Property |
HDPE |
PP |
ABS |
LDPE |
Density |
High |
Medium |
High |
Low |
Rigidity |
Strong |
Moderate |
Strong |
Flexible |
Chemical Resistance |
Excellent |
Good |
Moderate |
Excellent |
Impact Resistance |
High |
Moderate |
High |
High |
Flexibility |
Moderate |
Moderate |
Low |
High |
Water Absorption |
Very Low |
Low |
Moderate |
Very Low |
Compared to PP and ABS, HDPE offers a more robust balance between flexibility, impact strength, and chemical resistance — all of which are critical in long-lasting molded parts.
HDPE’s thermal properties make it easy to melt and flow under injection pressure, yet it solidifies quickly, contributing to shorter cycle times in production. It also experiences minimal shrinkage when properly processed — a major benefit for high-precision custom plastic parts. These characteristics make HDPE a preferred choice for many HDPE mold manufacturers serving industrial, consumer, and medical sectors.
Home Appliance Housings: Lightweight yet durable enclosures for refrigerators, washing machines, and small electronic devices.
Pipe Fittings and Fluid System Components: HDPE’s chemical resistance and low moisture absorption make it perfect for water and chemical distribution systems.
Industrial Equipment Parts: Gears, casings, and protective components that require toughness and wear resistance.

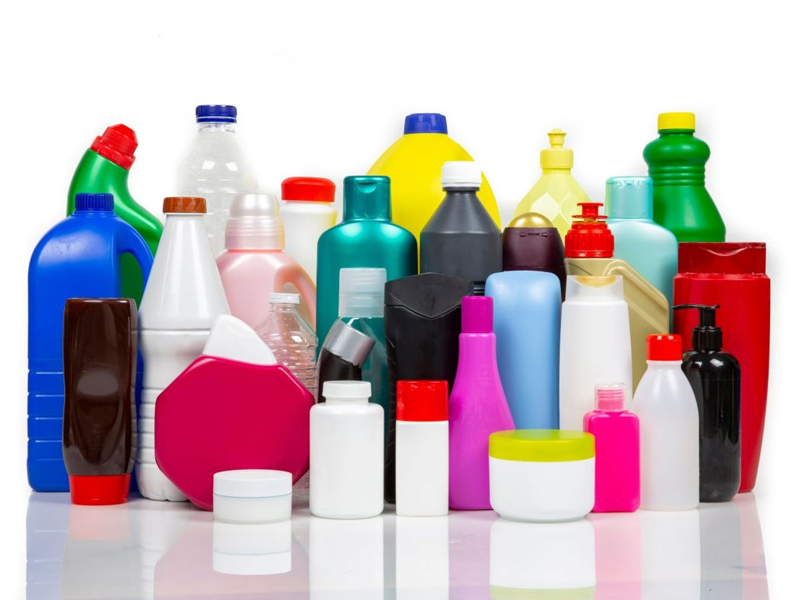

Storage Containers and Bins: Especially in food-grade applications due to its non-toxicity and ease of cleaning.
Automotive Components: Battery cases, fuel tanks, and inner trim parts.
At Alpine Mold, we regularly help clients choose the most suitable HDPE grade based on their product’s mechanical requirements, environmental conditions, and expected lifespan. Whether you’re developing an industrial part or a consumer product, HDPE injection molding offers reliability and versatility backed by a proven material foundation.

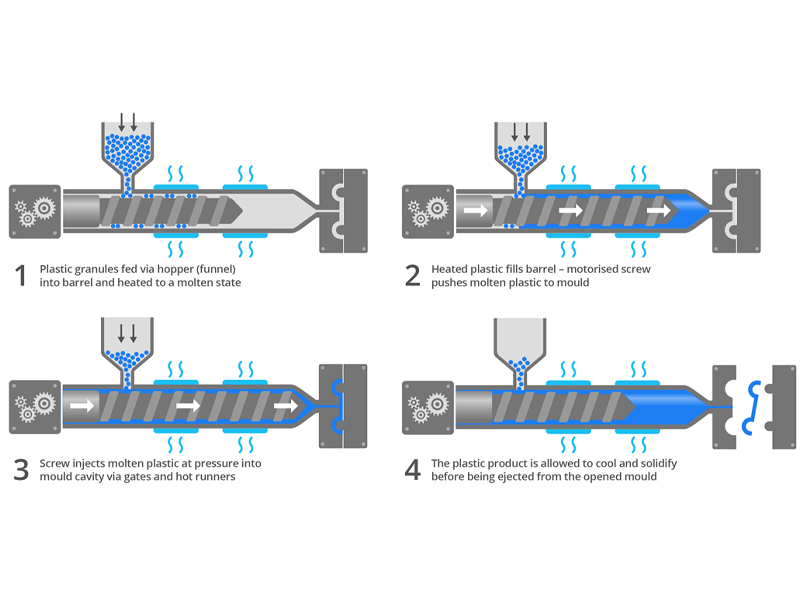

The HDPE injection molding process involves transforming raw HDPE pellets into precise and durable custom plastic parts using high-temperature, high-pressure machinery. Here’s a step-by-step breakdown of how experienced manufacturers—like Alpine Mold—achieve reliable results with every production run:
HDPE resin typically arrives in the form of small, uniform pellets. Before molding, the material is dried if necessary (although HDPE is hygroscopic, drying is not always required). Specific additives or colorants may be blended to meet functional or aesthetic needs.
The HDPE pellets are fed into the injection molding machine’s barrel, where they are heated to a temperature between 180°C and 280°C (356°F – 536°F) depending on the grade and product requirements. A rotating screw pushes the melted HDPE forward into the mold cavity under high pressure—typically ranging from 700 to 1200 bar.
Because HDPE has good flowability and low shrinkage, it fills mold cavities effectively, even for complex or thin-walled designs. These traits are especially valuable when producing detailed custom plastic parts.
Once the molten HDPE fills the mold cavity, it rapidly begins to cool and solidify. The cooling time depends on the part's thickness and geometry, but HDPE generally cools faster than higher-density or crystalline plastics.
Proper mold temperature control is crucial at this stage to avoid warping or shrinkage and to ensure dimensional stability.
After the part has cooled, ejector pins push it out of the mold cavity. The part may require minor post-processing such as gate trimming, flash removal, or surface finishing—depending on the design.
For tight-tolerance components, a precision HDPE mold manufacturer will ensure that the mold is optimized to minimize finishing work while maintaining quality.
Once ejected, the part is subject to dimensional inspection and visual checks. For critical components, advanced tools such as CMM (Coordinate Measuring Machines) are used to verify tolerances.
At Alpine Mold, we implement a multi-step inspection process involving IQC, IPQC, and FQC to guarantee that each batch of HDPE parts meets the strict standards set by our global clients.
This streamlined yet detailed process allows for fast cycle times, low scrap rates, and consistent results—making HDPE injection molding one of the most efficient ways to produce strong, lightweight, and cost-effective custom plastic parts.
Designing custom plastic parts with HDPE (High-Density Polyethylene) requires a solid understanding of the material’s characteristics and how they impact molding behavior. As an experienced HDPE mold manufacturer, Alpine Mold works closely with customers during the design stage to ensure production efficiency and optimal part performance. Here are some critical design guidelines:
HDPE has a relatively high shrinkage rate and is sensitive to uneven cooling. Therefore, maintaining uniform wall thickness throughout the part is essential to prevent:
Warping due to uneven shrinkage
Sink marks in thicker areas
Internal stresses that can lead to deformation
If variable thickness is unavoidable, transitions should be gradual to allow smooth material flow and uniform cooling.
HDPE tends to shrink more than materials like ABS or PC. To counter these effects:
Design with proper draft angles (at least 1–2°) for easy ejection
Avoid thick walls; if needed, use ribs to add strength without increasing wall thickness
Control gate location and cooling channel layout to ensure balanced cooling
Choose optimized processing parameters (e.g., mold temperature and packing pressure) based on mold flow analysis
HDPE’s flexibility and lower stiffness make it prone to dimensional variation. Therefore, when designing features like weld lines, reinforcing ribs, or snap-fit joints, leave appropriate tolerances to account for:
Material flow behavior
Shrinkage and cooling variability
Molding conditions (e.g., holding pressure and cycle time)
Alpine Mold often helps clients fine-tune these tolerances through simulation and prototype testing before mold fabrication.
Unlike more rigid plastics, HDPE is less suitable for parts requiring high-gloss finishes or tight dimensional tolerances without post-processing. Factors affecting surface and precision include:
Mold surface texture and polish level
Cooling uniformity and cycle time
Reinforcement materials (e.g., calcium or glass fillers)
For projects where appearance is critical, surface texturing or matte finishes are often preferred.
At Alpine Mold, we go beyond manufacturing—we offer design-for-manufacturability (DFM) support for every HDPE injection molding project. Our team evaluates your 3D model and provides suggestions such as:
Improving flow paths
Adjusting rib dimensions
Enhancing parting line locations
Balancing strength and aesthetics
By collaborating during the early stages, we help customers avoid costly revisions and ensure the design is suitable for stable, large-scale production.
Choosing the right partner for your HDPE injection molding project is critical to the long-term success of your product. A professional HDPE mold manufacturer like Alpine Mold offers more than just tooling—we deliver end-to-end engineering support, consistent quality, and streamlined production.
HDPE has unique characteristics such as high shrinkage, excellent chemical resistance, and relatively low rigidity. These traits make it ideal for many applications, but they also demand specialized mold design and processing expertise. Alpine Mold’s engineers understand the material’s flow, cooling, and shrinkage behavior in great depth, allowing us to create precise, high-performance molds tailored for HDPE.

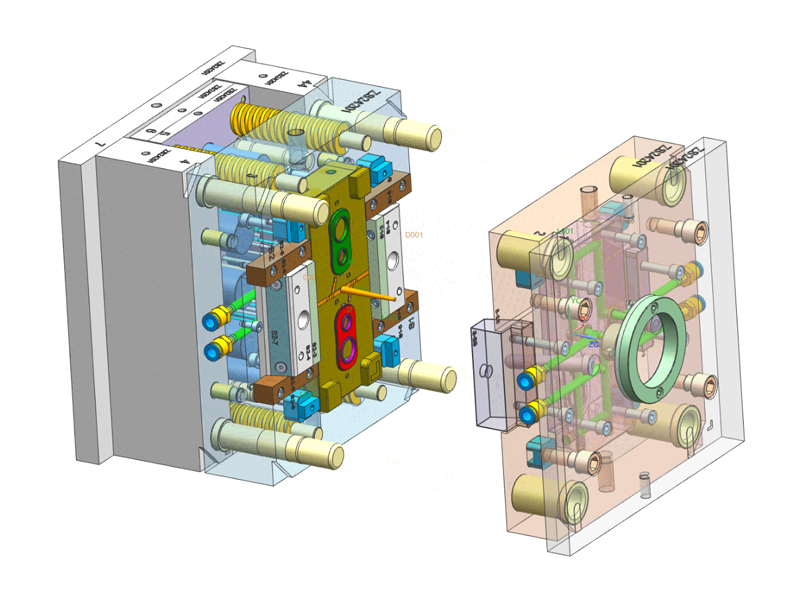

Our in-house design team works closely with clients from the early stages of product development. Using software like UG (NX), SolidWorks, and Moldflow, we analyze:
Parting lines
Draft angles
Gate positions
Cooling system layouts
Ejection mechanisms
This allows us to catch potential issues early, optimize manufacturability, and reduce cycle time in mass production.

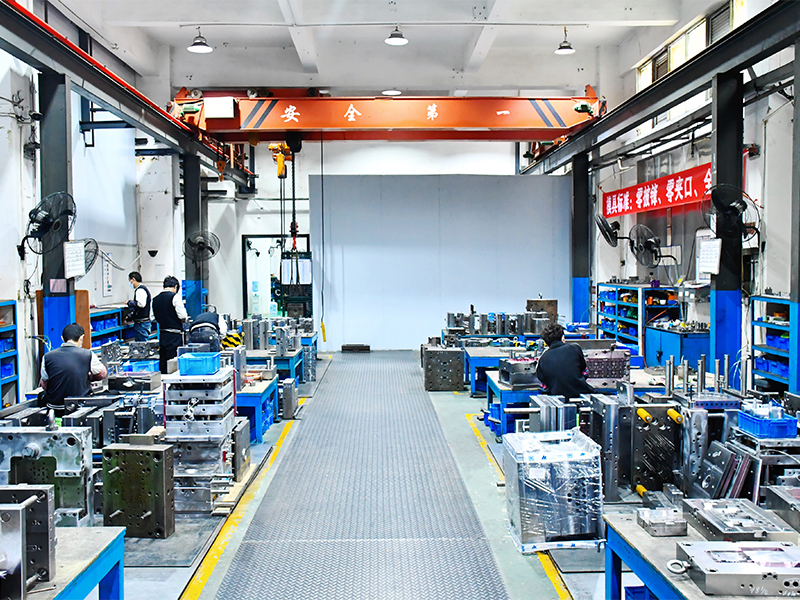

As an experienced HDPE mold manufacturer, Alpine Mold operates a fully-equipped facility in Shenzhen with:
15 CNC machines for rough and precision milling
EDM and wire-cutting machines for complex details
Polishing and assembly teams for final finishing
CMM (Coordinate Measuring Machine) for dimensional inspection
We support mold standards like DME, HASCO, and custom requirements, ensuring compatibility with your production lines.
In addition to mold building, Alpine Mold provides custom plastic part production using 27 injection molding machines (50T–800T), including a two-shot machine. Whether you need small-batch prototyping or full-scale production, we provide:
Strict quality control (IQC, IPQC, FQC)
Full-size inspection reports
Stable production with traceable process parameters
Flexible packaging and delivery options
We’ve worked with clients across Europe, North America, and Asia. Our English-speaking project managers ensure smooth communication across time zones. You’ll receive:
Timely DFM reports and mold flow analysis
Regular project updates with photos/videos
On-time sample shipment and full documentation
Lifetime mold maintenance service for repeat orders
When you work with Alpine Mold, you're not just sourcing a tool—you’re gaining a long-term partner dedicated to the success of your HDPE injection molding project.

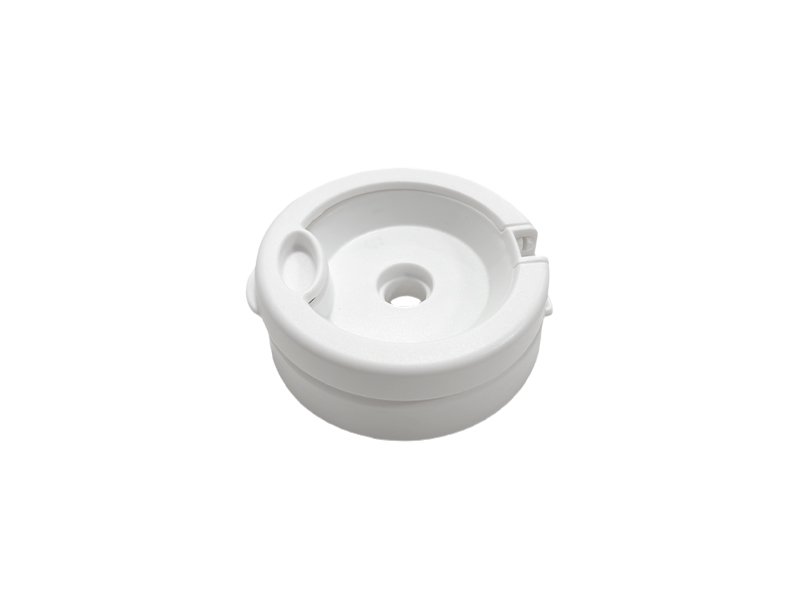

A UK-based client approached Alpine Mold with a request for a custom HDPE sports bottle lid. The lid featured a screw-on mechanism and required excellent sealing, toughness, and durability—making HDPE a perfect material choice. The expected production volume was moderate, with a single-cavity mold preferred to maintain quality control and reduce tooling cost.
The project posed two major technical challenges:
Automatic unscrewing mechanism: The cap required a complex internal thread, which had to be demolded automatically without damaging the thread profile.
Shrinkage control: HDPE’s relatively high shrinkage rate (1.5%–3%) meant that dimensional accuracy—especially in the thread and sealing areas—needed careful compensation during mold design and process control.
To address these issues, our engineering team developed a single-cavity mold with the following features:
Rotary unscrewing core powered by a rack-and-pinion system, enabling automatic thread demolding without manual intervention.
Optimized cooling layout, especially around the threaded zones, to minimize warpage and ensure uniform shrinkage.
Adjustable lifters and sliders to support the undercut geometry while maintaining short cycle time.
Slightly oversized cavity design, based on mold flow analysis and HDPE’s shrinkage properties, to ensure final part dimensions matched customer requirements.
Precision CNC machining of mold components was done in-house using our high-speed milling and slow wire-cut machines.
All key inserts, such as the thread core and cavity blocks, were hardened and mirror-polished to improve demolding and extend mold life.
Full 3D mold design review with the customer ensured that both function and aesthetics were fully aligned.
During mold testing, our team:
Used optimized barrel temperature (190–230°C) and mold temperature (~30–50°C) to balance flow and cooling.
Adjusted injection pressure and screw speed to ensure proper filling without overpacking.
Tweaked the unscrewing timing and demolding stroke to achieve smooth automatic thread release.
Applied moldflow simulation results to fine-tune gate position and cooling time.
After two rounds of trial and fine-tuning, the mold produced HDPE lids that met all dimensional and visual standards. The thread integrity was perfect, sealing performance was excellent, and there were no visible sink marks or warpage. The customer approved the T1 samples and proceeded with mass production.
This project showcases Alpine Mold’s expertise in handling complex HDPE components, especially those requiring precise thread control and automatic demolding.
If you’re looking for a reliable HDPE mold manufacturer to bring your custom plastic part to life, Alpine Mold is your trusted partner. With over 23 years of experience in custom plastic injection molding, we have helped hundreds of global clients turn their concepts into high-quality, functional products — on time and on budget.
Whether you already have 3D drawings or just a product idea, our engineering team will work closely with you to:
Choose the right HDPE grade based on mechanical and environmental requirements
Optimize the part design for molding efficiency and long-term durability
Perform mold flow analysis to predict issues like shrinkage, warping, or weld lines
Design and manufacture high-performance molds with precision CNC and EDM equipment
Provide complete DFM reports, mold trial videos, and full dimensional inspection reports
We also support small-batch production and offer flexible solutions for low-volume or high-mix orders — ideal for startups or custom product lines.
Ready to start your HDPE injection molding project? Contact Alpine Mold today to get a fast quote and professional support from our experienced team. Let us help you build better, faster, and smarter plastic parts.
