Automotive Injection Molding: Everything You Need to Know

1. Introduction to Injection Molding

Injection molding is a highly versatile manufacturing technique used in various industries, including the automotive sector. This process involves injecting molten material into a mould to create parts in large volumes. The technique is popular for its efficiency, precision, and the ability to produce complex shapes.

2. The Role of Injection Molding in the Automotive Industry

In the automotive industry, injection molding plays a crucial role in manufacturing high-quality, durable parts in a cost-effective and time-efficient manner. The method is used to create a diverse range of components, from small pieces like knobs and buttons to larger parts like bumpers and dashboards. Due to the process's adaptability, manufacturers can use various materials, including plastic, metal, and glass-filled fiber, to suit specific part requirements.

3. Advantages of Using Injection Molding in Automotive Parts Production

Automotive Injection molding offers several advantages in vehicle part production:

Efficiency: Once the moulds are created, parts can be produced in a matter of seconds, making injection molding highly efficient for mass production.

Precision: The process allows for the creation of complex geometries with high precision, crucial for parts that must fit together perfectly.

Versatility: Injection molding accommodates a wide range of materials, allowing manufacturers to choose the most suitable one for each component's function and location in the vehicle.

Cost-effectiveness: While the initial cost for creating moulds can be high, the cost per unit is extremely low, making the process cost-effective for large production runs.

Waste reduction: In injection molding, excess material can often be reused, reducing waste and further improving cost-effectiveness.

4. Common Production Applications for Automotive Injection Molding

Injection molding is used to produce a myriad of automotive parts, including:

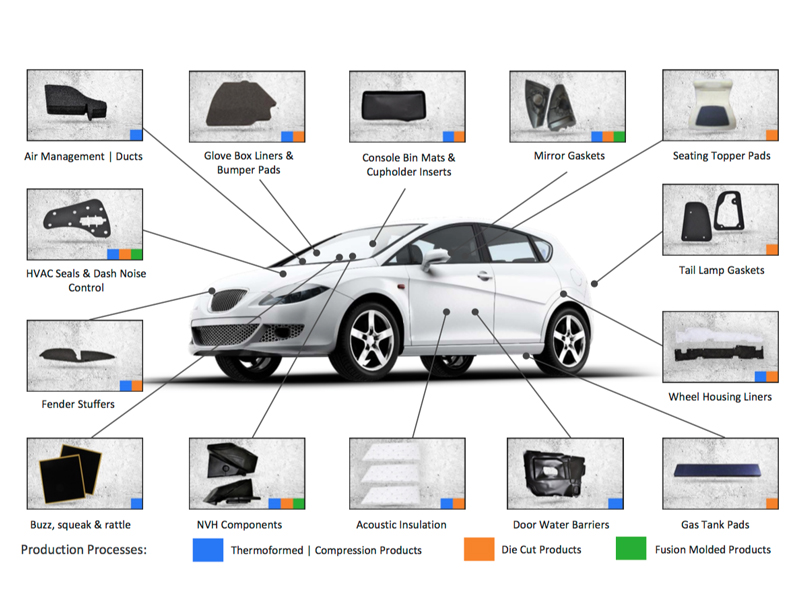

Interior components: Parts such as dashboards, door panels, center consoles, instrument panels, trim,knobs, switches, and interior bezels are often made using injection molding. The method allows for the creation of intricate designs and the integration of textures for added aesthetic appeal.

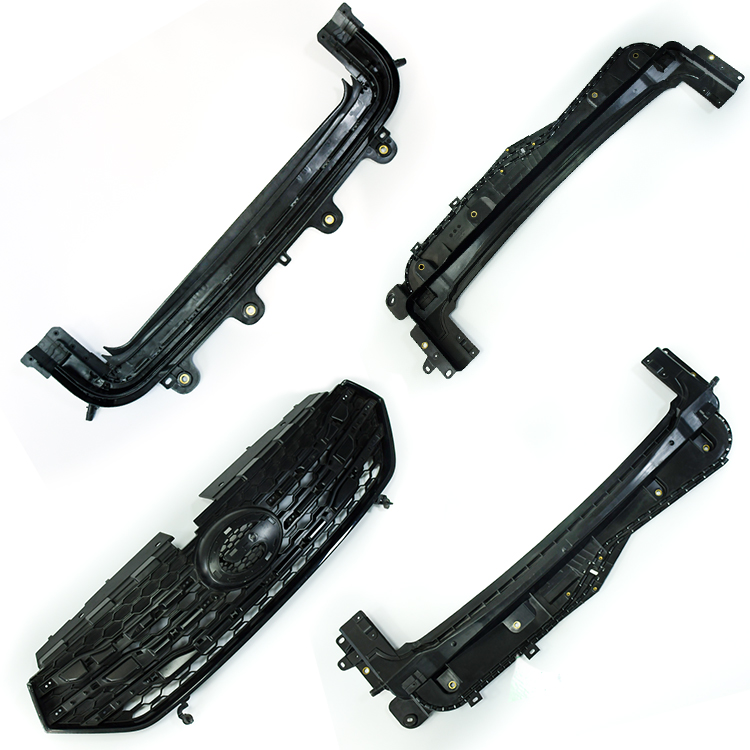

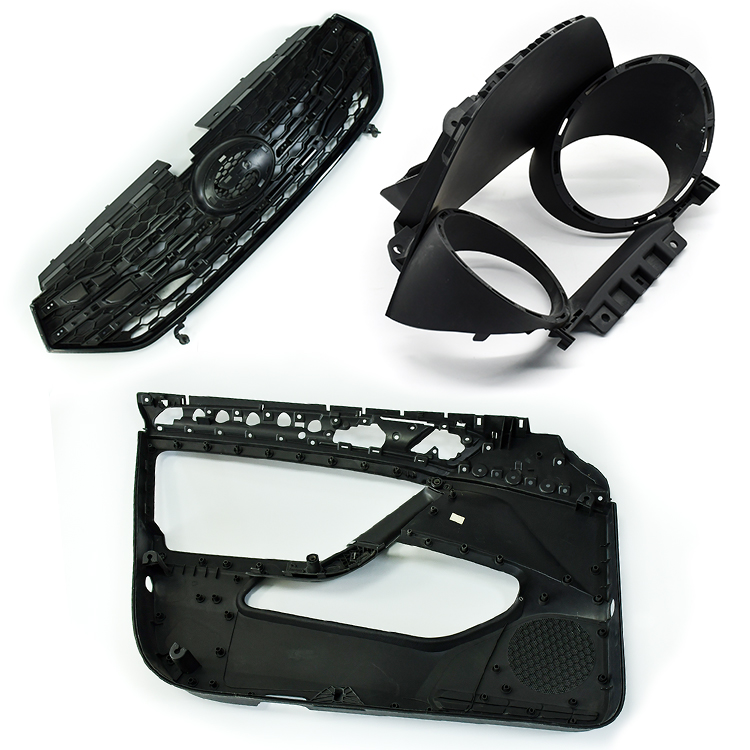

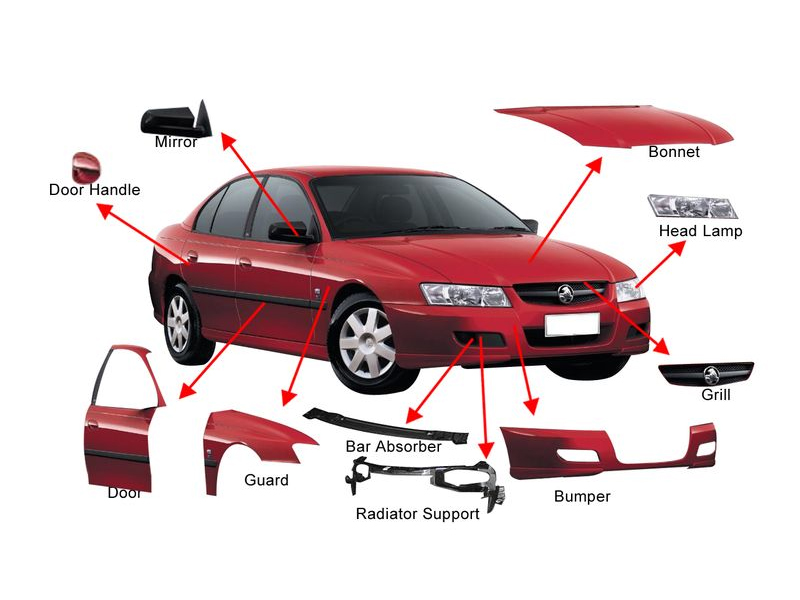

Exterior components: Parts such as bumpers, grilles, handles, fenders, splash guards and light housings are often produced using injection molding to achieve the necessary strength and durability while maintaining a lightweight structure.

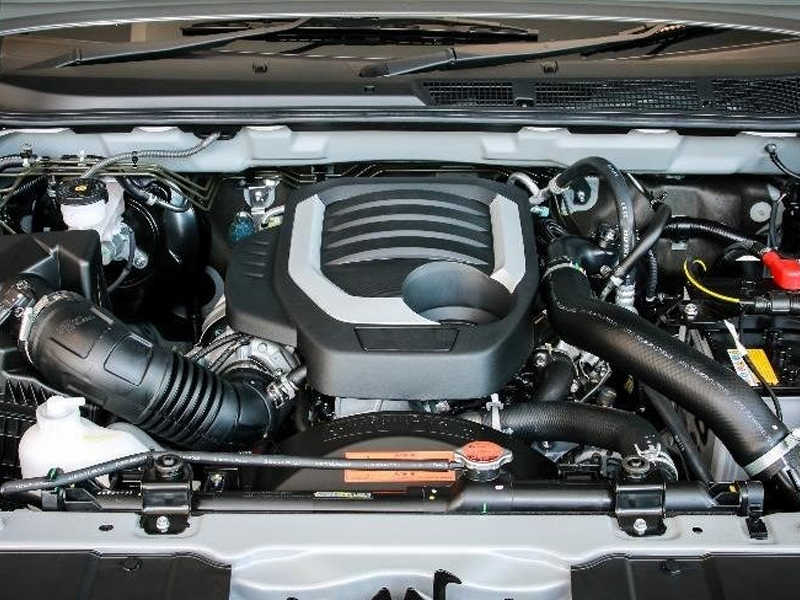

Under-the-hood components: Parts such as valve covers, filters, and various housings are manufactured using this process due to its ability to withstand high temperatures and resist corrosive fluids.

Interior components	Exterior components	Under-the-hood components

5. Injection Molding Materials for Automotive Parts

Several materials are commonly used in automotive injection molding due to their specific properties and suitability for automotive applications. Here are some of the commonly used materials:

Polypropylene (PP): Polypropylene is a versatile thermoplastic with excellent chemical resistance, impact strength, and low cost. It is commonly used for interior parts such as dashboards, door panels, and interior trim components.

Acrylonitrile Butadiene Styrene (ABS): ABS is a durable and impact-resistant thermoplastic that offers good dimensional stability and surface finish. It is often used for exterior parts, such as body panels, grilles, and trim, as well as interior components.

Polyamide (Nylon): Nylon is a strong and lightweight thermoplastic with excellent mechanical properties, including high tensile strength and heat resistance. It is commonly used for engine components, electrical connectors, and under-the-hood parts.

Polycarbonate (PC): Polycarbonate is a transparent thermoplastic known for its high impact resistance, clarity, and heat resistance. It is used for automotive lighting components, such as headlamp lenses and taillight housings.

Polybutylene Terephthalate (PBT): PBT is a semi-crystalline thermoplastic with good mechanical properties, chemical resistance, and electrical insulation properties. It is often used for connectors, switches, and electrical components in automotive applications.

Polyethylene (PE): Polyethylene is a versatile thermoplastic with excellent chemical resistance, low friction, and good impact strength. It is used for fuel tanks, fluid containers, and under-the-hood components.

Thermoplastic Elastomers (TPE): TPEs are a group of materials with both rubber-like elasticity and thermoplastic processability. They are used for seals, gaskets, interior soft-touch components, and weatherstripping.

Polyurethane (PU): Polyurethane is a flexible and durable material that offers excellent abrasion resistance and impact absorption. It is commonly used for automotive seating, armrests, and interior foam components.

6. The Future of Injection Molding in Automotive Parts Production

The future of injection molding in the automotive industry looks promising. As the sector continues to evolve towards electric and autonomous vehicles, the demand for high-quality, durable, and lightweight parts will increase. Injection molding, with its versatility, efficiency, and cost-effectiveness, is poised to meet this demand.

Moreover, advances in technology are expected to further enhance the capabilities of injection molding. For instance, the integration of Industry 4.0 concepts into injection molding processes will provide greater control over production and improve part quality. Additionally, the development of new materials will open up further possibilities for the creation of more efficient and sustainable components.

7. Conclusion

Injection molding has proven to be an integral part of the automotive industry, offering an efficient, precise, and cost-effective way to produce a wide range of components. As the industry continues to evolve and technology advances, the role of injection molding in automotive parts production is set to become even more significant.
