1.Introduction

Two-shot injection molding— also known as double shot or two-color molding — is a powerful technique that combines two materials or colors into a single part in one efficient process. It's ideal for improving part performance, aesthetics, and production efficiency without extra assembly.

At Alpine Mold, we specialize in precision two-shot molding for complex parts used in electronics, medical devices, automotive components, and more. With 23+ years of experience, in-house tooling, and advanced equipment, we help clients turn challenging designs into reality.

In this article, we’ll explain how the process works, which materials to use, and where it's best applied — along with why leading brands trust us for their two-shot molding projects.

2.What Is Two-Shot Injection Molding

Two-shot injection molding is a manufacturing process that involves injecting two different materials or colors into a single mold to create a single, multi-material or multi-colored part. This advanced technique enables the production of more complex components, combining different material properties or aesthetics in one molding cycle.

In the first shot, the mold cavity is filled with the first material, which is allowed to solidify. Then, in the second shot, a different material is injected over the first, bonding it securely while maintaining the integrity of both materials.

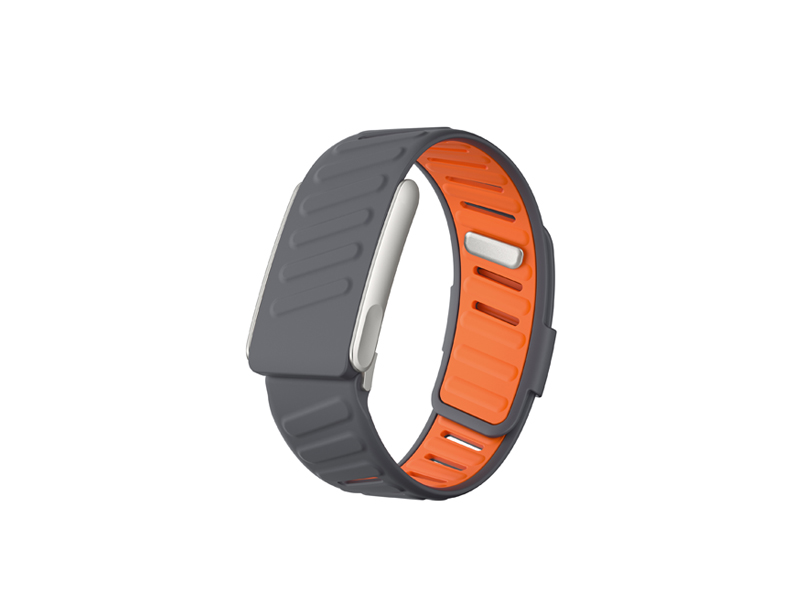

This process allows for a range of material combinations, such as hard plastics with soft elastomers, or different grades of the same material, to meet the functional and aesthetic needs of the part. Two-shot molding is particularly useful for creating parts that require both durability and flexibility, or parts with distinct colors and textures, all in one efficient process.

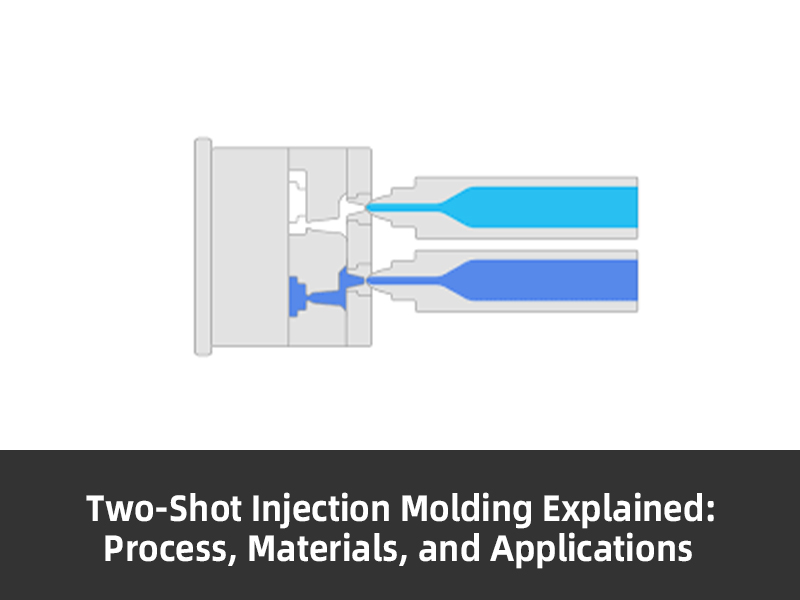

3.How the Two-Shot Injection Molding Process Works

The two-shot injection molding process involves injecting two different materials or colors into a single mold cavity in two distinct steps. This multi-shot injection molding technique is ideal for creating parts that require different material properties or aesthetic features. Here’s a breakdown of how the process works.

First Shot

The process begins with the injection of the first material into the mold cavity. The cavity is filled, and the material is allowed to cool and solidify. This material forms the base structure of the part. The first material is often a rigid plastic, but it can vary depending on the product’s design.

Mold Transfer or Rotation

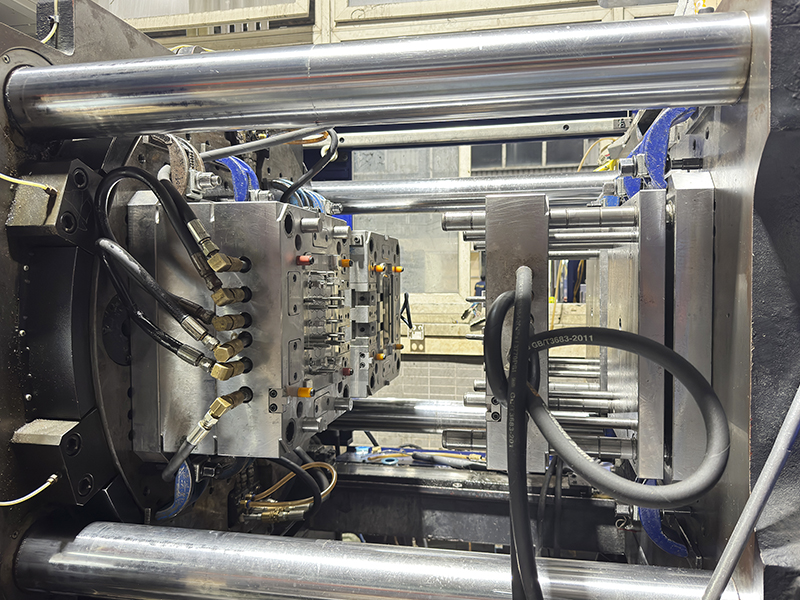

Once the first shot has cooled, the mold either rotates or moves to another injection unit. This transfer ensures that the second material can be injected without disturbing the first shot. This feature is essential in double shot molding, where precise material placement is crucial for the final part.

Second Shot

The second material is then injected into the mold over the first material. The second shot could be a completely different material, such as a soft elastomer over a hard plastic, or a different color or grade of the same material. This step is what makes two-color injection molding so versatile, allowing for functional and aesthetic parts in one piece.

Cooling and Ejection

After the second shot has been injected and bonded to the first, the part is allowed to cool further. Once fully solidified, the part is ejected from the mold, and the process is complete. The two-shot molding materials bond together to create a durable, multi-material component that meets specific design and performance requirements.

By using two-shot injection molding, you can reduce the need for additional assembly steps and minimize waste, all while producing highly functional, aesthetically appealing parts. This process is widely used in industries such as automotive, electronics, and medical device manufacturing.

4.Benefits of Two-Shot Molding

Two-shot injection molding offers significant advantages for product designers and manufacturers seeking efficient, high-quality multi-material solutions. Below is an overview of its key benefits:

Key Advantages Overview

Our Strength at Alpine Mold

At Alpine Mold, we apply these advantages through:

• Precise mold design tailored for two-shot molding

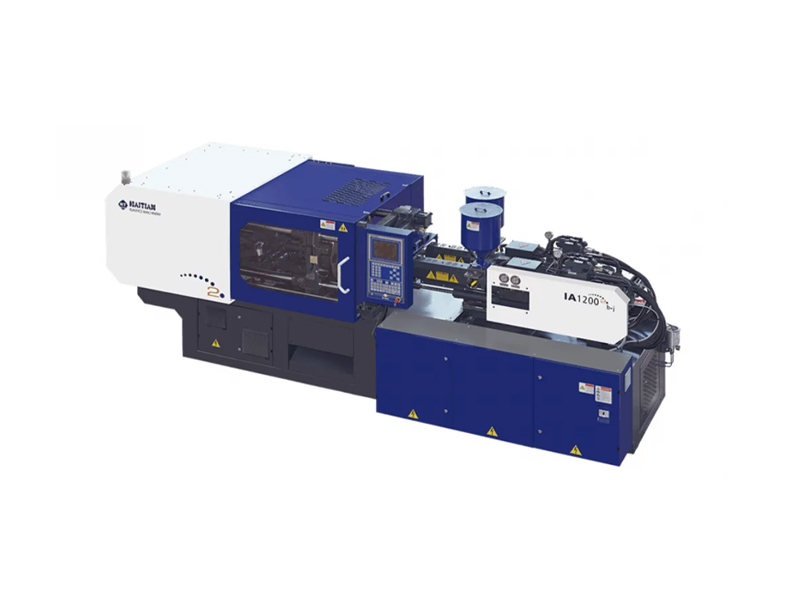

• Advanced machinery with rotary platens and dual      injection units

• Expertise in material bonding across industries like      automotive, electronics, and medical devices

• In-house trial and sampling, helping clients reduce      development risk and shorten lead times

With over 23 years of experience and a fully equipped facility in Shenzhen, we ensure that every two-shot project is managed with accuracy, efficiency, and a commitment to quality.

5.Recommended Material Combinations

In two-shot injection molding, material compatibility is essential to ensure proper bonding and part performance. The following table outlines some of the most commonly used material combinations, along with bonding performance and process considerations:

Table: Frequently Used Two-Shot Molding Material Combinations

Engineering Tips for Material Pairing

• Choose materials with similar      thermal properties to minimize warpage and ensure proper fusion.

• Avoid combinations with      significant chemical or thermal mismatch, which may cause delamination or part      failure.

• For weak bonding pairs, design      mechanical interlocks such as undercuts, ribs, or holes to enhance      bonding strength.

• When needed, use surface      activation methods (plasma, corona, flame) or primers to      improve adhesion between dissimilar materials.

6. Applications of Two-Shot Injection Molding

Two-shot injection molding is widely used across industries where multi-material, multi-color, or multi-function integration is needed. Below is a breakdown of major industries and real-world applications that benefit from this advanced molding technology.

Industries and Typical Applications

Customer Case Study: Consumer Electronics - Smartwatch Housing

Project Overview:

We were tasked with producing a multi-material smartwatch housing that required both aesthetic appeal and superior durability. The housing needed to have a soft-touch surface for user comfort while maintaining a rigid, scratch-resistant outer shell for protection.

Materials Used:

• First Shot: PC (Polycarbonate) for a      rigid, durable outer casing

• Second Shot: TPU (Thermoplastic      Polyurethane) for a soft-touch grip around the sides

Challenges:

• Ensuring a strong bond between the      hard outer shell (PC) and the flexible inner surface (TPU).

• Achieving a clean and      aesthetically pleasing design without compromising the functional      integrity.

Solution:

Using our state-of-the-art two-shot molding technology, we successfully bonded the PC and TPU materials, achieving the right balance of durability and comfort. The rotary platen molding system allowed us to inject both materials with precision, ensuring a flawless bond and a high-quality finish.

Results:

• Reduced post-molding processing      time (no additional assembly needed)

• Enhanced user experience with the      soft-touch material

• Increased customer satisfaction      due to the improved tactile feel and functional performance

7.Conclusion:

Two-shot injection molding offers great benefits for your products — from cost savings to design flexibility and enhanced performance. Whether it's for electronics, automotive, or medical devices, Alpine Mold can help you create high-quality, multi-material parts.

With over 23 years of experience and a commitment to precision and innovation, we ensure your project runs smoothly from start to finish.

Why Work With Us?

• Experienced team with proven results

• Comprehensive services, from design to production

• Expert in material bonding for lasting durability

• Advanced equipment for quality parts

Ready to start your two-shot molding project? Contact us today to discuss how Alpine Mold can help you bring your ideas to life with precision and efficiency.
