How to Lower Injection Molding Tooling Costs

Table of Contents

1.Introduction

2. Early-Stage Planning & Feasibility Assessment

3. Mold Design-Phase Cost Control

4. Optimizing the Mold Manufacturing Process

5. Trial Mold Stage: Reducing Cost Through Efficiency

6. Mass Production Cost Management

7. Post-Delivery Optimization & Continuous Improvement

8. Conclusion

1. Introduction

When sourcing plastic injection molds, many companies—especially SMEs and product development teams—often face similar challenges: high mold costs, long lead times, and costly trial-and-error cycles between testing and mass production. If not managed properly, these issues can quickly lead to uncontrolled budgets and delayed product launches.

Too often, purchasing decisions focus only on the unit price of the mold or the parts, overlooking the broader picture. In reality, the most critical factor is the total cost across the entire lifecycle—from injection mold design, material selection, mold processing, mold testing, and scaling to final delivery. A well-designed, durable mold with stable performance is far more cost-effective over time than a cheaper, failure-prone alternative.

As an experienced plastic injection molds manufacturer with over 23 years in the industry, Alpine Mold understands these challenges. This guide explores each stage of the mold development and injection molding process, providing practical strategies to reduce injection mold cost, increase efficiency, and support long-term success with custom molded plastic parts.

2. Early-Stage Planning & Feasibility Assessment

Before any injection mold production begins, proper planning and technical evaluation are essential to control costs. Analyze product structure, volume expectations, and lifecycle needs to determine whether injection molding is suitable—and whether specialized techniques like overmolding or dual-shot molding are needed. Avoid pushing suboptimal designs into mold development, which leads to costly revisions.

Establish a comprehensive cost plan that includes more than just mold quotations. A complete cost structure should cover injection mold design, mold steel selection, machining, trial runs, and even future maintenance. Matching injection mold tooling life with production needs helps determine whether higher-grade steel or automation is worthwhile, all of which affect total injection mold cost.

Early risk control also matters. Design changes, material mismatch, and lead time delays all carry hidden costs. A technical review process—such as DFM (Design for Manufacturability) workshops and simulation tools like Moldflow—can help minimize these risks.

3. Mold Design-Phase Cost Control

The design stage has a profound impact on injection mold cost and future production stability. Every design decision—structure, materials, and processing feasibility—affects cost and efficiency downstream.

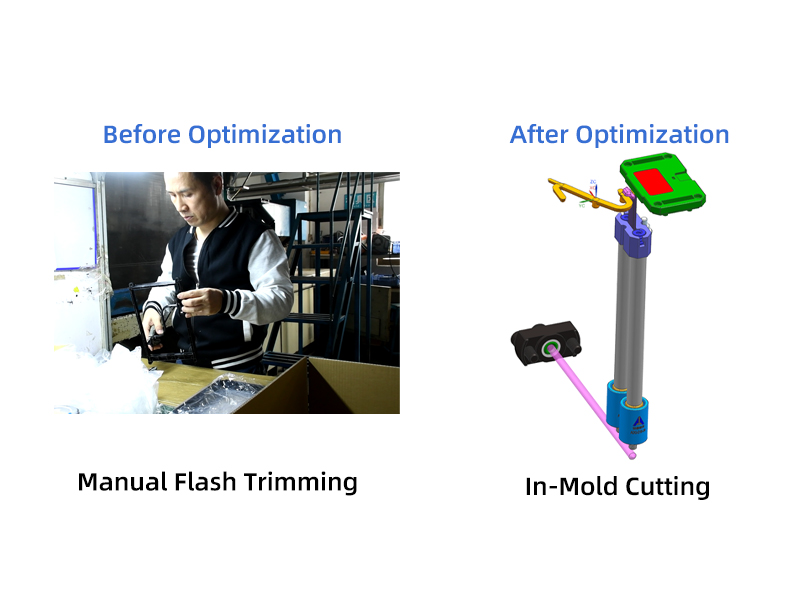

Structural Simplification

Reducing unnecessary features like slides, lifters, or complex inserts helps lower mold manufacturing costs. Ensure proper draft angles, avoid undercuts when possible, and maintain uniform wall thickness to reduce warping, shrinkage, and material waste. All these directly lower testing costs and improve yield in custom molded plastic parts.

Material Selection & Cost Balance

Choose mold steel grades based on usage volume and performance needs. High-grade materials like H13 or S136 suit high-gloss or long-life applications but come at a higher price. For lower-volume injection molding, P20 or 718H may be more cost-effective. Selecting the right material at this stage sets the tone for long-term control over injection mold cost.

Process-Friendly Design

Good design must consider manufacturability. Avoid deep holes, sharp ribs, or non-standard structures that complicate machining. Prioritize modular layouts and standardized components like guide pins or sprue bushings to reduce labor time and enable future maintenance. Smart design upfront avoids costly revisions later.

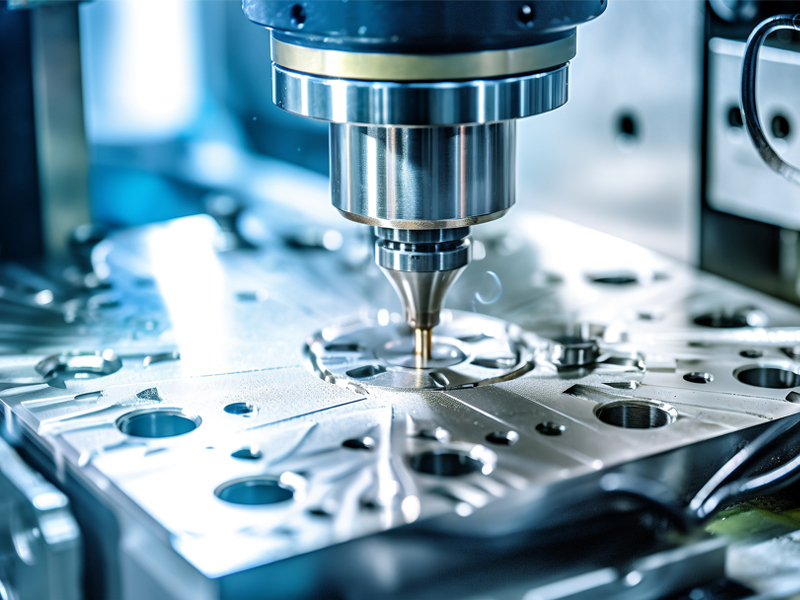

4. Optimizing the Mold Manufacturing Process

As a trusted plastic injection molds manufacturer, we know that the transition from injection mold design to mold manufacturing is a critical cost control point. The goal is to produce molds with high accuracy, minimal rework, and efficient lead times.

Machine Allocation

The requirements for processing equipment for different mold parts vary greatly. The rational allocation of efficient equipment helps to shorten the manufacturing cycle and reduce the unit labor cost. For example, in high-precision cavity areas, high-speed CNC or mirror EDM machines should be given priority to improve surface quality and reduce polishing processes. However, simpler mold blanks or non-precision parts can be completed by conventional machine tools to save high-end resources. Reasonable arrangement of the number of electrodes and improvement of the utilization rate of multi-station fixtures can also accelerate the overall production pace on the premise of ensuring accuracy.

Labor Hour Efficiency

Mold manufacturing involves multiple coordinated processes, where labor hour management plays a critical role in controlling overall costs. At Alpine Mold, we fully understand this reality. By establishing standardized workflows and clear operating procedures, we minimize efficiency losses caused by manual intervention. In addition, we have fully implemented an ERP system for real-time scheduling and production monitoring, ensuring that the labor distribution of each operation is visible, traceable, and controllable.

With project milestone tracking and digital system integration, Alpine Mold can quickly identify production bottlenecks and respond with timely process optimizations—significantly improving delivery efficiency and reducing the injection mold cost.

For procurement managers, evaluating whether a injection mold supplier has this level of refined management capability is essential when assessing delivery reliability and long-term cost stability. Choosing Alpine Mold means choosing a plastic injection molds manufacturer that is professional, efficient, and fully transparent throughout the mold production lifecycle.

Quality Control to Avoid Rework

Quality issues during the manufacturing stage often lead to costly rework and project delays, making prevention far more valuable than correction. At Alpine Mold, we implement a comprehensive quality control system that spans the entire production process—from incoming material inspection and in-process critical dimension checks to post-machining alignment verification. These steps are designed to significantly reduce rework rates and control the overall injection mold cost.

For high-risk areas, we apply pre-machining evaluations combined with simulated machining validation. This includes electrode interference checks, toolpath simulations, and collision analysis to avoid structural errors caused by discrepancies between design and manufacturing data. A single mistake in the mold structure can lead to extensive rework, wasted materials, and—most critically—missed product launch deadlines. For both the injection mold supplier and the client, such losses can be substantial.

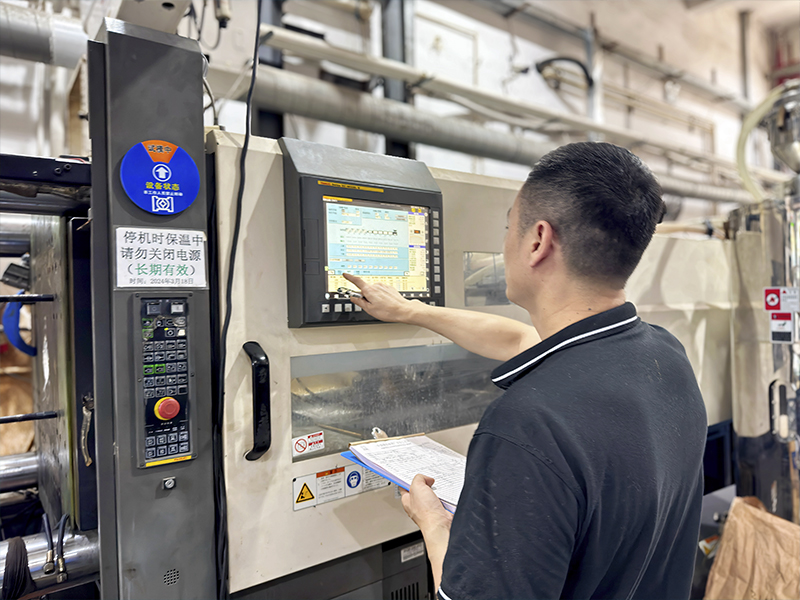

5. Trial Mold Stage: Reducing Cost Through Efficiency

Trial mold testing is often underestimated—but can be a major contributor to rising injection mold cost if not tightly managed. Repeated tests, miscommunication, and delays cost time and money. The solution lies in preparation, clear objectives, and data-driven execution.

Prepare with validated mold design drawings, defined molding windows, and a test plan. Reduce trial rounds by addressing potential risks in advance. Cross-functional teams (engineering, mold tooling, injection molding, QC) should collaborate in real time to address defects like flash, short shots, or sink marks immediately.

Use digital templates, defect logs, and testing KPIs to identify failure causes quickly and avoid costly trial iterations. This ensures that by the time custom molded plastic parts go into mass production, the process is already optimized for performance and cost.

Cost Source	Common Issues	Cost Impact	Optimization Strategy
Repeated Trial Runs	Multiple test failures, repeated mold adjustments	Labor & lead time increase	Perform DFM review early, improve initial accuracy to ensure first-shot success
Design-Related Rework	Poor gate placement, insufficient venting	High mold modification costs	Conduct design review & Moldflow analysis prior to trial
Improper Process Settings	Flashing, shrinkage, short shot, burn marks	Material waste, long debug cycles	Assign skilled process engineers; use standardized process templates
Poor Communication	Unclear quality expectations from buyer	Misaligned revisions, wasted effort	Align tolerances and appearance standards in writing before trial
Lack of Test Data Records	Cannot reuse trial data for mass production	Retesting required, lower repeatability	Use trial report forms covering all parameters and result
Low Cross-Dept Efficienc	Disconnected design, processing, and QC teams	Delayed responses, slow corrections	Build trial teams with tooling, molding & QA in joint decision-making
Inadequate Mold Maintenance	Loosened parts, contamination, misaligned inserts	Misjudged results, unnecessary rework	Full mold inspection & cleaning before trial for accurate test outcomes

6. Mass Production Cost Management

Once the plastic injection mold enters mass production, cost management shifts from design efficiency to long-term operational performance. At this stage, stable output, low defect rate, and labor/resource efficiency are crucial to reducing injection mold cost on a per-part basis.

Production Efficiency Optimization

Improving injection molding productivity not only reduces unit costs but also increases overall capacity and enhances response speed. Optimization strategies should focus on equipment utilization, mold change efficiency, and cross-functional coordination. For example, implementing Quick Mold Change (QMC) systems, planning production schedules more efficiently, and minimizing setup and changeover time can significantly improve machine uptime and production continuity.

In addition, adopting intelligent monitoring systems—such as MES (Manufacturing Execution Systems)—enables real-time data collection on production status. This helps detect anomalies early, prevent unexpected downtime, and avoid redundant operations. As a result, plastic injection mold manufacturers can achieve greater operational efficiency and long-term control over injection mold cost while maximizing the output of custom molded plastic parts.

Quality Control Systems

An efficient quality management system is essential to preventing rework, scrap, and customer complaints. It is highly recommended to establish a full-process quality control chain—starting from incoming raw material inspection, in-process monitoring, and continuing through to final product shipment. During the injection molding process, automated inspection technologies such as CCD vision systems and real-time anomaly detection tools (e.g., temperature and pressure monitoring) can be deployed to ensure each molded part meets defined specifications.

Equally important are employee quality awareness training and on-site 5S management practices, both of which play a critical role in minimizing human error and reducing indirect costs. By implementing these measures, manufacturers can consistently deliver high-quality custom molded plastic parts, reduce defect-related waste, and maintain stable injection mold cost across the production lifecycle.

Scrap Rate Reduction

A high scrap rate is one of the most overlooked yet costly issues in mass production—especially for recurring or high-volume injection molding. The key to controlling scrap lies in maintaining a stable process window and continuously optimizing mold performance. Regular maintenance and inspection of molds are essential to ensure consistent operation during long production runs.

In addition, standardizing injection molding parameters and implementing a first-article inspection system can significantly reduce the risk of large-scale defects. For inevitable non-conforming parts, a rapid sorting and classification mechanism should be established to prevent defective products from mixing with acceptable ones. These practices help plastic injection mold manufacturers ensure consistent part quality, lower rework and material waste, and keep overall injection mold cost under control—especially when producing custom molded plastic parts at scale.

7. Post-Delivery Optimization & Continuous Improvement

Data Collection & Analysis

Systematic data collection is the foundation of continuous improvement. By leveraging MES systems, built-in sensors on injection molding machines, and quality management platforms, manufacturers can capture key performance indicators such as cycle times, defect rates, energy consumption, and equipment utilization.

Regular data analysis enables teams to quickly identify production bottlenecks, abnormal fluctuations, and hidden sources of waste. For example, by comparing trial parameters and yield rates across different mold batches, it's possible to reverse-engineer the optimal molding window—providing valuable insights for future high-volume production. This data-driven approach significantly enhances decision-making efficiency and improves the accuracy of injection mold cost management over time.

Process Parameter Optimization

Building on data insights, optimizing process parameters is a key strategy to enhance product consistency, reduce energy consumption, and minimize scrap rates. By scientifically adjusting injection speed, holding pressure time, mold temperature, and cooling time, manufacturers can significantly shorten cycle times while improving the stability and quality of finished parts.

For repeat production orders, establishing a “best-practice process parameter archive” ensures that every batch runs under standardized conditions. This minimizes variability caused by operator differences and helps maintain the consistent quality of custom molded plastic parts. Additionally, Design of Experiments (DOE) methods can be applied to test parameter combinations and identify the most efficient settings, further improving productivity and lowering overall injection mold cost.

Automation Suggestions

Implementing automation at the right stage is a strategic move for achieving long-term cost control. For example, introducing robotic part pickers can reduce labor costs and minimize human error, while deploying vision inspection systems can significantly improve quality assurance efficiency. Utilizing quick mold change systems and standardized pallet setups can enhance mold change speed and production line flexibility.

Although automation requires higher upfront investment, it can substantially lower per-unit production costs over time, improve delivery consistency, and strengthen overall competitiveness. We recommend developing a phased automation plan—ranging from semi-automated to fully automated solutions—based on order types, production volumes, and product complexity. This ensures a scalable and cost-effective approach to managing injection mold cost and delivering high-quality custom molded plastic parts.

8. Conclusion

Optimizing injection mold cost is not a single decision—it's a strategy that spans planning, design, production, and continuous improvement. Each stage offers opportunities to reduce waste, improve efficiency, and increase long-term ROI.

As a leading plastic injection molds manufacturer with 23 years of experience, Alpine Mold helps clients around the world reduce time-to-market and production costs with end-to-end solutions. From concept to delivery, our team is committed to delivering reliable, high-precision custom molded plastic parts backed by deep technical know-how and responsive support.

Let’s work together to transform your idea into production—on time, on budget, and at scale. Contact Alpine Mold today for a customized quotation and technical evaluation.
