10 Common Injection Molding Defects And How To Prevent Them

The ten most common defects encountered in injection molding primarily include sink marks, warpage, flash, flow lines, short shots, burn marks, jetting, vacuum voids, weld lines, and surface delamination.

These ten most prevalent injection molding defects are primarily caused by three major factors: mold design, the injection molding process, and the plastic material itself.

Within the injection molding process, these defects can compromise the quality of your products—ranging from surface aesthetic flaws to issues that impact product functionality and even safety.

However, in practice, by applying best practices in design, mold engineering, and process control, most of these defects are both predictable and avoidable. In this blog post, we will categorize these common injection molding defects based on their root causes, guide you through identifying them, and provide practical solutions for each—helping you consistently produce high-quality injection molded parts.

Table of Contents

1. Injection Molding Defects Commonly Caused by Mold Design

#1. Flash/Burr

#2.weld Line

#3.Scuff Mark

#4.Warpage

2. Injection Molding Defects Commonly Caused by Process

#5.Sink Mark

#6.Short Shot

#7.Splay Mark

#8.Flow mark

3.Injection Molding Defects Commonly Caused by Material

#9.Bubble/Void

#10.Discoloration

Conclusion

1. Injection Molding Defects Commonly Caused by Mold Design

#1.Flash/Burr

In injection molding, "flash" refers to a common defect characterized by the formation of thin, excess edges on the surface of a molded part. This occurs when molten plastic overflows from the mold's parting line, slider gaps, ejector pin holes, or similar locations during the molding process (as illustrated below). While typically merely an aesthetic issue, if left unchecked and untreated, these blade-like burrs can leave indentations on the mold itself. This leads to localized deformation—specifically, surface depressions—causing irreversible damage to the mold and compromising its long-term durability. Furthermore, flash occurring within insert gaps or ejector pin holes can cause parts to become jammed within the mold, thereby hindering the demolding process.

Root Causes :

In injection molding, the root cause of a common defect—flashing—is excessive plastic pressure combined with the presence of minute gaps within the mold, through which the plastic is forced out.

In practical terms, molds may not always fit together with absolute precision. For instance, slight gaps can arise if the two halves of the mold do not mate tightly enough, if the mold has worn down after prolonged use, if minute clearances exist between sliders and inserts, or due to the cumulative effect of assembly tolerances across multiple components. These gaps may be as small as 0.01 mm—virtually invisible to the naked eye. However, under the high pressures of the injection process, the molten plastic is forced into these minute crevices. Once the plastic cools and solidifies, it forms a thin, excess layer—known as flashing.

How to prevent
When encountering "flashing"—a common injection molding defect—you can follow a systematic troubleshooting logic to inspect the process step-by-step, as the root causes of flashing typically stem from three key areas: processing parameters, equipment, and the mold itself。

Step 1: Inspect the Injection Molding Process Parameters

First, observe the injection pressure curve. If the peak pressure is consistently too high, or if the holding pressure is set excessively high, the characteristic symptom is flashing appearing uniformly around the entire parting line or near the gate area. In such cases, you can employ a multi-stage injection profile to gradually reduce the injection speed and pressure—particularly as the mold approaches full fill—or significantly reduce both the holding pressure and holding time. Typically, the holding pressure is set between 30% and 80% of the injection pressure, with the duration limited to the point at which the gate freezes off.

Second, you need to monitor the temperature control system. Verify whether the temperature settings for each zone of the barrel (paying particular attention to the nozzle and the front section) fall within the acceptable range. Additionally, confirm that the mold cooling system is functioning effectively and ensure that the actual mold temperature is not excessively high or subject to significant fluctuations.

You can gradually lower the melt temperature—reducing each barrel zone by 5–10°C at a time—while observing the state of the melt and any changes in the flashing defect. Alternatively, you can enhance the mold cooling efficiency by increasing the flow rate of the cooling water, cleaning scale deposits from the cooling channels, or lowering the set temperature on the mold temperature controller.

Step 2: Check the Injection Machine's Clamping Force

First, verify whether the clamping force is sufficient for the product's projected area (specifically: Clamping Force > Product Projected Area × Number of Cavities × Material Pressure Factor). Next, check the clamping mechanism (toggle-type) to ensure it is fully extended and properly self-locked; measure the elongation of the four tie bars to confirm they are stretching uniformly.

If the clamping force is insufficient, recalculate the requirements and appropriately increase the clamping force, or consider using an injection machine with a higher tonnage capacity. If the clamping mechanism itself appears to be malfunctioning, contact the equipment manufacturer for calibration and maintenance services.

Step 3: Inspect the Mold and Equipment Hardware

If the first two steps reveal no issues, the focus shifts to the mold itself.

First, you must shut down the machine and remove the mold for inspection. Carefully examine the parting line for any signs of wear, dents, or residual debris. Additionally, check the fit and clearance of all moving components within the mold—such as ejector pins, sliders, and venting channels—to ensure they are functioning correctly. If the issue lies with the parting line, use Prussian blue or red lead to inspect the contact fit; then, smooth the surface using sandpaper with a grit of 800 or higher. In severe cases, professional repair is required. If the clearance is excessive, worn components—such as ejector pins or sliders—should be replaced or repaired. Regarding issues with the vent grooves (which typically have a depth ranging from 0.01 to 0.03), inspect them to clear any blockages and verify that the depth falls within the appropriate range.

#2.Weld Line

In plastic injection molding, a weld line (or knit line) refers to a fine, linear surface mark formed when two or more streams of molten plastic flow within a mold, meet, but fail to fully fuse. This common injection molding defect is particularly prevalent in parts with complex geometries, multiple gates, or features that obstruct plastic flow—such as holes, bosses, or ribs. For structural or functional components, a weld line constitutes more than just a cosmetic defect; it can also compromise the product's localized strength, sealing integrity, and long-term reliability. Consequently, special attention must be paid to weld lines when designing and manufacturing such components.

Root Causes :

When two or more streams of molten plastic meet within the mold cavity but fail to fuse sufficiently under adequate temperature and pressure, a visible and structurally weak weld line forms at the interface.

How to prevent

1. Design Optimization:When the product structure features holes, inserts, abrupt changes in wall thickness, or sharp corners—situations that force the melt to split or slow down—optimization is required. By incorporating rounded transitions (fillets), reducing structural obstructions, and ensuring uniform wall thickness, the melt flow can be directed unidirectionally. This approach fundamentally resolves the common injection molding defect known as "weld lines."

2. Tooling Optimization: On one hand, a single-point gate or sequential valve gate system can be employed. A single-point gate prevents the formation of multiple melt fronts that would subsequently converge. With a sequential valve gate hot runner system, the gates can be controlled to open in a specific sequence, allowing the melt to advance progressively; this shifts the resulting weld line to a non-visible area or eliminates it entirely. On the other hand, venting channels should be added. These allow trapped air to escape as two melt fronts meet, facilitating a smooth fusion; without proper venting, a layer of trapped air can form between the melt fronts, resulting in a distinct weld line or even scorching. Furthermore, the cooling system must be optimized to ensure the melt maintains a sufficiently high temperature. If a specific area of the mold becomes too cold, the temperature at the melt front drops; when the two melt fronts finally meet, they have already cooled down, reducing the ability of their polymer chains to diffuse into one another, thereby making the weld line more pronounced.

3. Raw Material Control:When selecting materials, prioritize resins that exhibit good melt flow characteristics. Additionally, ensure the raw materials are thoroughly dried and utilize mold release agents appropriately.

4. Process Parameter Adjustment: Increasing the melt temperature reduces viscosity, making it easier for polymer chains to diffuse into and entangle with one another, thereby making the weld line less visible. Increasing injection pressure and speed promotes more thorough fusion of the melt fronts.

5. Mold Structure Modification: Modify the mold structure by enlarging the gates and runners, and by incorporating cold slug wells and overflow wells.

6. Post-Processing:  If a weld line is already present, post-molding annealing can be performed to allow the polymer to relieve internal stresses, thereby improving the mechanical strength of the weld line.

In summary, the core principles underlying these preventive and corrective measures are: increasing temperature, increasing pressure, and optimizing the melt flow path—strategies that can significantly reduce the occurrence of weld lines.

#3.Scuff Mark

"Drag marks" (or "scuffing") refer to surface defects—such as sliding marks, scratches, or drag traces—that occur on plastic products during the demolding process due to excessive friction against the mold surface. These defects typically manifest as whitish or glossy streaks (as shown in the figure below) or fine, elongated scratches, which are particularly conspicuous on high-gloss or transparent parts. They commonly appear in deep-cavity structures—specifically on thick-walled side surfaces, vertical faces, and areas where the draft angle is insufficient—as well as in locations where the mold surface is rough. While minor drag marks have little impact on non-cosmetic parts, severe drag marks can compromise the product's aesthetic appearance, reduce production yields, and potentially increase manufacturing costs or delay delivery.

Root causes:

During the demolding process, if the friction force between the molded part and the mold surface exceeds the shear strength of the part's surface material, the plastic's outer layer may be torn or scratched.

How to Prevent This:

1. Optimize Product Design

Increase the draft angle to avoid deep, straight-walled structures; this facilitates easier ejection of the product from the mold, thereby fundamentally reducing friction.

2. Optimize Mold Structure

Improve the surface finish (polishing quality) of the mold and optimize the ejection system (specifically the layout of ejector pins) to ensure a more uniform ejection force, thereby minimizing the mechanical stress exerted on the product against the mold surface during demolding.

3. Adjust Injection Molding Parameters

Appropriately increase the mold temperature, reduce the holding pressure, or optimize the cooling time to mitigate "mold sticking" (the tendency of the part to adhere to the mold), thereby improving the demolding performance of the product.

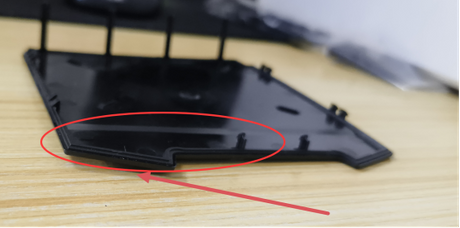

#4.Warpage

Warpage is a common product defect in injection molding, referring to the bending, twisting, or deformation of plastic parts after cooling, such that they fail to maintain their intended balance or dimensional accuracy. Common visual manifestations typically include upturned edges, curved or arched surfaces (as shown in the figure below), twisting in elongated parts, and a loss of flatness in planar components.

Root causes:

As plastic cools within the mold, it undergoes shrinkage throughout. If the degree of shrinkage varies across different regions or directions of the product, internal stresses will develop; these stresses can pull or twist the part, thereby leading to warping issues.

How to prevent

Warping is typically attributed to anisotropic shrinkage, uneven cooling, variations in wall thickness, and inconsistencies in filling and packing. Therefore, when assisting you in resolving this common injection molding defect, we prioritize addressing the product design first, followed by the mold design, and finally, process adjustments.

1. Product Design Optimization: Strive to avoid excessive variations in wall thickness. Wall thickness variations should be limited to ≤ 30%; in thicker sections, utilize reinforcing ribs (Note: Rib thickness should be 0.5–0.6 times the main wall thickness, and the rib base must feature a rounded fillet transition) instead of solid structures to minimize differential shrinkage. Furthermore, employ arched or frame-based structures to enhance structural rigidity and improve the product's resistance to deformation.

2. Mold Design Optimization: Optimize gate placement to ensure uniform melt flow, avoiding long-distance, unidirectional flow to reduce shrinkage differentials caused by flow orientation. Improve the cooling system to minimize temperature gradients. Ensure proper venting, facilitate uniform mold filling, and enhance the holding pressure phase.

3. Material Selection Optimization: Different materials exhibit varying tendencies toward warping; for instance, glass fiber-reinforced materials possess strong directional shrinkage characteristics, resulting in a higher risk of warping. It is therefore essential to appropriately adapt gate designs and flow paths to suit the specific plastic material being used.

4. Injection Molding Process Adjustment: Increase the mold temperature, boost the holding pressure, adjust the filling speed, and appropriately extend the cooling time to ensure the product fully sets within the mold before ejection.

2. Injection Molding Defects Commonly Caused by Process

#5.Sink Mark

Shallow depressions or pits appearing on the surface of injection-molded plastic parts—which are particularly noticeable on products with a glossy finish—typically occur opposite thicker sections, reinforcing ribs, or bosses. This constitutes a common cosmetic defect resulting from localized, non-uniform thermal shrinkage during the cooling process, wherein the thicker internal material pulls the already solidified outer layer inward. In products such as appliance housings, automotive interior components, and consumer electronics, this defect compromises aesthetic appeal, diminishes dimensional stability, and reduces structural integrity.

Root Causes:

This common form of shrinkage is fundamentally caused by uneven cooling and contraction of the plastic material. The primary contributing factors—which exert a combined influence—include excessive wall thickness, overly thick ribs or bosses, insufficient holding pressure, and uneven mold cooling.

How to prevent:

1. Mold Design Optimization:

It is essential to maintain uniform wall thickness to avoid significant variations in skin thickness; areas with thicker walls experience greater shrinkage, while thinner areas shrink less, making the part prone to warping or internal stresses.

Furthermore, the placement of the gate influences the direction and velocity of the melt flow; therefore, a proper design ensures uniform filling of the mold cavity and minimizes localized shrinkage.

The parting line should be designed to align with the melt flow direction to reduce weld lines and voids, thereby improving both surface appearance and dimensional stability. Establishing appropriate holding/packing pressure channels and ejection mechanisms ensures continuous melt replenishment during the cooling phase, effectively reducing shrinkage and internal stresses.

2. Injection Molding Process Control:

First, Injection Speed Adjustment: Control the speed at which the melt fills the mold cavity; avoid speeds that are too high, which can induce internal stresses, or speeds that are too low, which may lead to premature cooling or incomplete filling.

Holding Pressure and Time: Apply appropriate pressure during the cooling phase to ensure the mold cavity remains fully packed, thereby minimizing volumetric shrinkage.

Mold Temperature Control: Maintaining a uniform mold temperature ensures consistent cooling of the plastic material, preventing localized shrinkage variations that can lead to warping.

Cycle Time Optimization: Insufficient cooling time can result in dimensional inaccuracies and internal defects, whereas excessive cooling time reduces production efficiency; the goal is to identify the optimal balance between these extremes。

3. Material Selection and Preparation:

Low-Shrinkage Materials: Select engineering plastics with inherently low shrinkage rates—such as PA (Nylon) or PC (Polycarbonate)—as these offer greater stability compared to materials like PP or PE.

Addition of Fillers: Incorporating fillers—such as glass fibers, carbon fibers, or mineral additives—can effectively reduce shrinkage and enhance both dimensional stability and rigidity.

Composite Materials: Utilizing specific surface-enhancing materials can improve melt flow characteristics and mitigate the risk of warping, making them particularly suitable for the production of complex or precision-engineered parts.

#6. Short Shot

As one of the most common defects in injection molding, a "short shot" occurs when the molten plastic fails to completely fill the mold cavity. This results in the molded part being partially unformed or lacking material. Typically, this manifests as localized incomplete sections, voids, notches, or surface depressions and irregularities (as shown in the image below). This defect not only compromises the product's aesthetic appearance but also impairs its load-bearing capacity and durability; furthermore, it may prevent the part from being assembled correctly. For products such as seals, electronic enclosures, and tubing components, a short shot can lead to leaks (water or air) or poor electrical contact.

Root Causes:

The molten plastic or molding material fails to completely fill the mold cavity before solidification occurs. This is often caused by excessive flow resistance, insufficient material volume, or inadequate injection pressure and speed to overcome the flow resistance.

How to Prevent:

To resolve this common injection molding defect, the general strategy involves a three-pronged approach: ensuring proper flow, ensuring complete filling, and maintaining adequate holding pressure. Specific measures are as follows:

Check Injection Volume and Holding Pressure:

Increase the injection volume on the molding machine to ensure the molten material completely fills the cavity.

Extend the holding pressure time by 1–2 seconds and slightly increase the pressure to fill any areas that have not yet fully consolidated.

Increase Melt and Mold Temperatures:

Raise the melt temperature by 5–10°C to reduce viscosity and improve flowability.

Uniformly increase the mold temperature by 3–5°C to prevent premature cooling, which can lead to incomplete filling.

Optimize Gates and Runners:

If feasible, slightly increase the dimensions of the gates or runners.

Ensure that the molten material flows effectively into all areas of the cavity—including thin-walled or remote sections—rather than bypassing them.

#7.Splay Mark

Splay marks—also referred to as "silver streaks"—are common surface defects encountered in injection molding. They manifest as silver, white, or discolored streaks on the surface of the molded part (as illustrated below), typically radiating outward from the gate area. These defects are particularly conspicuous on transparent parts, painted components, or high-gloss surfaces. When splay marks occur at weld lines, they can render the product susceptible to breakage or cracking; furthermore, air streaks present in thin-walled sections or material accumulation zones can compromise the mechanical properties of the part.

Root Causes:

The fundamental cause of flow marks is non-uniformity in the melt's flow path and velocity, leading to localized cooling anomalies or irregular melt front convergence. Simply put, flow marks are essentially the result of the melt "flowing unevenly"—or impinging directly against a cold mold wall—or failing to converge smoothly, thereby creating visible surface patterns.

How to Prevent:

The overarching strategy for resolving flow marks is to ensure the melt flows smoothly and uniformly. Achieving smooth convergence typically requires a comprehensive approach involving adjustments across process parameters, mold design, and material selection.

Regarding Injection Molding Process Parameters:

Control injection speed to ensure uniform melt flow.

Increase melt temperature to reduce viscosity.

Raise the mold temperature to delay cooling, thereby facilitating smooth mold filling and melt convergence.

Regarding Mold Design Optimization:

Adjust gate placement: Minimize instances where the melt front directly impinges upon a cold mold wall or is forced to take a circuitous path.

Add or optimize runners: Reduce flow resistance and ensure uniform melt distribution across all sections of the mold cavity.

Ensure uniform wall thickness: Avoid variations in thickness that can lead to uneven localized cooling.

Improve parting line layout: Facilitate smoother melt convergence and minimize the formation of weld lines.

Regarding Material Selection:

Select materials with superior flow properties to reduce the likelihood of flow mark formation.

For filler-containing materials, consider optimizing the formulation or modifying the material to enhance its flow characteristics.

#8. Flow mark

Injection Molding Defects: Flow Marks. Flow marks are surface defects on injection-molded plastic parts, manifesting as wavy lines, streaks, or discolored ring-like patterns, typically appearing around the gate area (as shown in the figure below). These defects can compromise the product's appearance, aesthetics, localized structural strength, and functional reliability.

Root Causes：

The flow path or velocity of the melt is uneven, resulting in localized cooling or abnormal convergence.

How to prevent:

1. Adjust Injection Molding Process Parameters

Control injection speed, avoiding rates that are either too fast or too slow.

Increase melt temperature to reduce viscosity.

Increase mold temperature to slow down the cooling rate of the melt, facilitating smoother flow front convergence.

Appropriately extend the holding pressure time to ensure complete mold filling.

2. Optimize Mold Design

Adjust gate placement to minimize the impact of the melt against cold mold walls.

Improve runner design to reduce flow resistance.

Ensure uniform wall thickness throughout the part.

Strategically position the parting line to facilitate smooth melt convergence.

3. Material Selection

Utilize materials with superior flow properties.

Consider modifying filled materials to enhance the uniformity of their flow behavior.

3.Injection Molding Defects Commonly Caused by Material

#9.Bubble/Void

In injection molding, a "gas pocket" refers to a void or gas-filled cavity formed within the interior or on the surface of a plastic part. Typically, this manifests on the part's surface as a raised bump or a small pinhole; internally, a void may be present, and upon cross-sectioning the part, internal bubbles become visible—a phenomenon that is particularly pronounced in transparent or thin-walled components.

The root causes are:

Residual gas trapped within the mold cavity

Presence of moisture or volatile components in the material

Melt overheating or uneven cooling

Excessive injection speed or insufficient pressure

How to prevent

1. Venting and Mold Design

Enlarge vent channels or air vents: Ensure that air within the mold cavity can be expelled smoothly.

Ensure a smooth mold surface: Sharp corners or depressions tend to trap air; therefore, corners should be rounded or surfaces polished.

Ensure smooth gates and runners: Prevent the molten material from rapidly impacting and trapping air.

2. Injection Molding Process Optimization

Reduce excessive injection speed or pressure: Prevent the high-velocity flow of the molten material from trapping air within the cavity.

Increase holding pressure and duration: Compact the molten material to facilitate the expulsion of trapped gases.

Maintain uniform mold temperature: Prevent localized gas expansion that could lead to the formation of bubbles.

3. Material Handling

Dry plastic pellets: This is particularly critical for hygroscopic materials such as PA, PC, and ABS, to prevent moisture evaporation from causing bubbles.

Control melt temperature: Temperatures that are too high can generate volatile gases, while temperatures that are too low can result in uneven flow.

#10.Discoloration

In injection molding, discoloration refers to the appearance of colors on the surface of a molded part that deviate from the specified color—such as yellowing, dark streaks, or black spots. This constitutes a surface defect. For products positioned as high-end or brand-name items, color inconsistency can make the product appear cheap or defective. In the case of mass-produced goods, significant color variations between individual units can compromise the visual uniformity of assembled sets or product series.

Root Causes:
The fundamental cause of discoloration is an abnormality in the material, temperature, or mold, resulting in an uneven color distribution within the melt or the occurrence of thermal or chemical changes.

How to prevent：

Our overall approach is as follows: maintain material cleanliness, ensure stable melt flow, and keep the mold clean with uniform temperature distribution. Specifically:

Material Preparation

Thoroughly dry raw materials: Especially hygroscopic materials such as PA, PC, and ABS.

Standardize raw material batches: Prevent color variations arising from different production batches.

Thoroughly mix masterbatch/colorants: Ensure uniform dispersion of coloring agents.

Process Optimization

Control barrel temperature: Avoid excessive heat that could lead to thermal degradation or scorching.

Control injection speed and holding pressure: Prevent localized uneven cooling of the melt or thermal shock against the cold mold wall, which can cause color variations.

Maintain uniform mold temperature: Ensure consistent cooling to minimize localized color differences.

Mold Management

Clean the mold cavity: Prevent contamination from scrap material or residues.

Polish or coat mold surfaces: Maintain the mold surface to prevent oxidation or fatigue from negatively impacting cooling efficiency.

3. Conclusion

Injection molding typically entails significant upfront investment in tooling; therefore, designing and manufacturing the mold correctly the first time is critical to avoid the high costs associated with rework or remanufacturing. Defects related to the molding process or materials can often be resolved—at relatively low cost—by optimizing parameters, selecting appropriate materials, or implementing strict quality control measures. However, regardless of the underlying cause, defects in injection-molded products directly impact production efficiency, customer satisfaction, and profitability.

Implementing comprehensive quality control measures—including raw material inspection, in-process checks, mold debugging, and color control—can minimize defects. We utilize professional colorimeters to ensure color consistency across every batch of injection-molded parts, thereby preventing color variations that could compromise product aesthetics and brand image.

Now that you are familiar with common injection molding defects and their solutions, you can leverage robust quality control measures to ensure your products consistently meet both design specifications and your customers' quality standards.
