Types And Applications of Thermoplastics in Plastic Injection Molding

Table of Contents

1.Introduction

2.What Are Thermoplastics?

3.Main Types of Thermoplastics

4.Typical Applications of Thermoplastics

5.Advantages of Thermoplastics in Plastic Injection Molding

6.How to Select the Right Thermoplastic Material

7.Conclusion

1.Introduction

In today’s manufacturing landscape, thermoplastics have become indispensable due to their excellent processability, recyclability, and wide range of industrial uses. From automotive components and medical devices to consumer electronics and household products, engineering thermoplastics are everywhere, shaping the world we live in.

Understanding the different types of thermoplastics and their specific performance characteristics is essential for businesses aiming to optimize functionality, control production costs, and accelerate time-to-market. This guide will walk you through the major applications of thermoplastics, explore common material categories, and explain how to select the right resin for plastic injection molding projects—particularly those requiring custom plastic parts or specialized performance features.

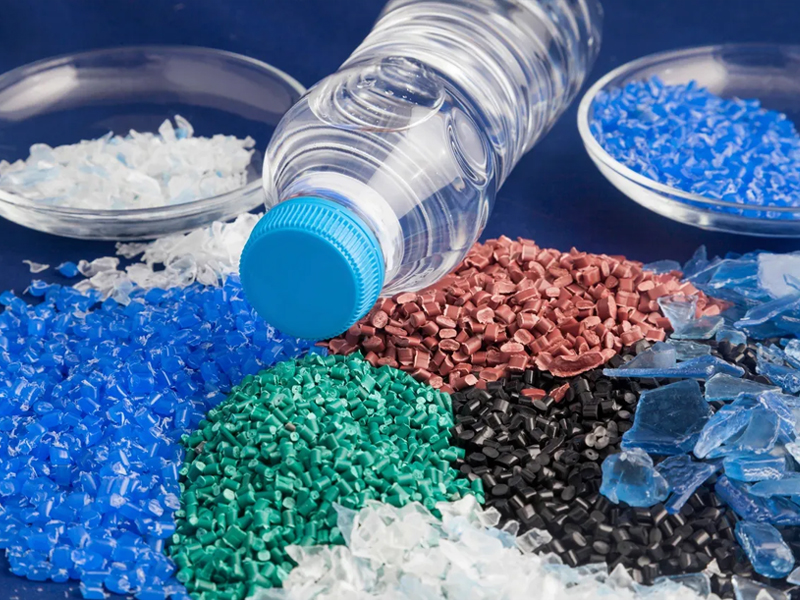

2.What Are Thermoplastics?

Thermoplastics are a class of polymers that soften when heated and solidify when cooled, a reversible process that allows them to be reshaped multiple times without significant chemical degradation. This unique property makes them one of the most widely used material types in plastic injection molding.

Unlike thermosetting plastics, thermoplastics do not undergo cross-linking during molding, which shortens cycle times and enables more flexible part designs. Thanks to their outstanding flow characteristics, chemical resistance, dimensional stability, and mechanical strength, thermoplastics are used across a wide range of industries—including automotive, electronics, healthcare, and consumer goods. Common engineering thermoplastics include PP, PE, PC, PA, and POM.

Another key advantage is recyclability. Waste from production or post-use custom plastic parts can be remelted and reused, reducing material loss and aligning with global trends in sustainable manufacturing. For both low-volume prototyping and large-scale manufacturing, thermoplastics offer a highly adaptable and cost-effective material choice.

3.Main Types of Thermoplastics

Thermoplastics come in a wide variety of formulations, each with distinct physical properties and performance advantages. Based on performance levels and application requirements, types of thermoplastics can be broadly categorized into general-purpose plastics, engineering thermoplastics, and high-performance thermoplastics.

Material	Key Properties	Typical Applications
PP (Polypropylene)	Lightweight, chemical resistant, affordable, recyclable	Medical devices, home appliances, packaging, automotive interiors
PE (Polyethylene)	High toughness, impact resistance, moisture/corrosion resistant	Films, pipes, cable sheathing, consumer goods
PVC (Polyvinyl Chloride)	Rigid, flame retardant, weather resistant	Construction materials (pipes, doors/windows), medical tubing
PS (Polystyrene)	Transparent, easy to mold, low-cost	Disposable cutlery, packaging, toys
ABS	High strength, impact resistant, glossy finish	Automotive parts, electronic housings, home electronics
PC (Polycarbonate)	Excellent strength, optical clarity, flame resistance	Medical devices, safety shields, lenses
PA (Nylon)	Wear resistant, strong, self-lubricating	Gears, bearings, automotive and electrical connectors
POM (Acetal/Delrin)	High rigidity, fatigue resistance, low friction	Precision mechanical components, locks, pulleys
PBT	Great electrical insulation, dimensional stability	Connectors, LED sockets, electrical components
PEEK	Exceptional heat resistance, chemical stability, mechanical strength	Aerospace, medical implants, automotive engine parts

Each of these materials plays a critical role in the applications of thermoplastics, enabling reliable performance across diverse industries. Selecting the appropriate resin type is crucial for ensuring product durability, functionality, and cost-efficiency.

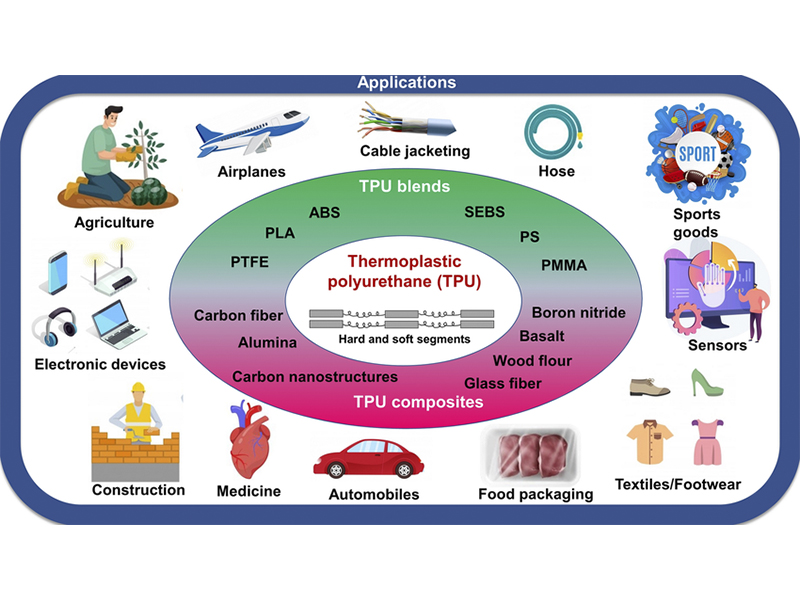

4.Typical Applications of Thermoplastics

Due to their structural strength, flexibility, and competitive cost, thermoplastics are widely used in industries that demand both performance and manufacturability. The most common applications of thermoplastics span from automotive and medical sectors to consumer electronics and home products.

4.1 Automotive Industry

With growing demands for lightweight, durable, and cost-effective materials, the automotive industry relies heavily on engineering thermoplastics such as PA, PBT, PP, and ABS. These materials are used in:

  ·Interior parts (e.g., dashboards, door panels)

  ·Structural components (e.g., bumper reinforcements, pedal assemblies)

  ·Fluid system components (e.g., fuel lines, air conditioning ducts)

Their high heat resistance, dimensional stability, and strength make thermoplastics ideal for replacing metal in many custom plastic parts.

4.2 Medical Devices

In the healthcare industry, materials must be biocompatible, non-toxic, and suitable for high-precision processing. PC, PP, PEEK, and TPU are common engineering thermoplastics used in:

  ·Disposable syringes and infusion sets

  ·Medical tubing and catheters

  ·Surgical instrument housings and components

PEEK, in particular, is often selected for sterilizable or implantable parts due to its high-temperature and chemical resistance.

4.3 Consumer Electronics

Modern devices such as smartphones, tablets, and wearables require materials with excellent surface finish, impact resistance, and lightweight properties. Thermoplastics like ABS, PC+ABS blends, and TPE are widely used in:

  ·Mobile phone cases and accessories

  ·Laptop shells and keyboard components

  ·Power adapters and connector housings

These materials support the production of highly functional and aesthetically refined custom plastic parts for electronics.

4.4 Household Products

Thermoplastics are deeply integrated into everyday items due to their affordability and ease of processing. Common uses include:

·Food-contact items like cups and lunch boxes (PP, PE)

·Furniture and storage bins (PP, PVC)

·Kitchen tools such as cutting boards and mixers (PE, ABS)

These general-purpose types of thermoplastics balance safety, processability, and cost, making them ideal for daily-use plastic products.

5.Advantages of Thermoplastics in Plastic Injection Molding

Thermoplastics are the material of choice for most plastic injection molding applications due to their unique combination of physical properties, ease of processing, and environmental benefits. Whether for high-volume production or low-volume prototyping, thermoplastics offer an efficient and scalable solution across a wide range of industries.

·Shorter Cycle Times and Higher Productivity

Thermoplastics soften rapidly under heat and can be quickly injected into molds, then solidify upon cooling. This fast molding cycle enables higher throughput and makes them ideal for high-speed injection systems. Compared to other molding materials, thermoplastics significantly reduce production time—directly improving cost efficiency.

·Shorter Cycle Times and Higher Productivity

Thanks to their excellent flowability and dimensional stability, thermoplastics are well-suited for molding intricate geometries, thin-wall structures, and multi-cavity tools. Whether it’s gears, snap-fit features, or high-tolerance enclosures, custom plastic parts can be manufactured with exceptional accuracy using thermoplastics.

·Recyclability and Sustainability

One of the major advantages in the applications of thermoplastics is their ability to be reheated and reshaped multiple times without degrading their base structure. This makes them highly recyclable and environmentally friendly. Manufacturers can reduce material waste and align with global sustainability standards by reusing thermoplastic scrap from production.

·Adaptability for Different Volumes

Thermoplastics are ideal for both mass production and low-volume custom runs. Their versatility in plastic injection molding allows manufacturers to quickly adjust to design changes or produce small batches of custom plastic parts without incurring high tooling costs. This flexibility is especially valuable for product prototyping, specialty parts, and on-demand manufacturing.

6.How to Select the Right Thermoplastic Material

Choosing the right thermoplastic is a critical step in product development, directly affecting performance, cost, and manufacturability. With so many types of thermoplastics available, selection should be based on the specific functional requirements and end-use environment of the product.

6.1 Key Factors to Consider

When selecting a material for plastic injection molding, consider the following:

  Mechanical properties: For load-bearing components like gears and clips, materials like PA and POM offer high strength and wear resistance.

  Heat resistance: For parts exposed to high temperatures (e.g., under-hood automotive or kitchen appliances), use materials such as PBT or PEEK.

  Transparency: For optical or medical components requiring clarity, PC or PMMA is ideal.

  Flame retardancy: For electrical or electronic parts, consider UL 94-rated ABS, PC, or modified PA.

  Cost-effectiveness: While high-performance engineering thermoplastics offer superior properties, general-purpose plastics like PP or PE may be more economical for less demanding applications.

6.2 Application-Based Material Recommendations

Application	Recommended Thermoplastics	Reason
Automotive air vents	PP, ABS	Cost-effective, dimensionally stable, paintable
Syringe housings	PP, PC	Biocompatible, chemically resistant
Phone cases	TPU, PC+ABS	Impact resistance and aesthetics
Precision gears	POM, PA66	Self-lubricating, wear resistant
High-temp parts	PEEK, PPS	Withstands extreme conditions, high strength

6.3 Why Work with a Professional Mold Manufacturer?

Material selection is not a standalone decision—it must be aligned with mold design, processing conditions, and production goals. Even the best thermoplastic will fail without the right mold configuration or process control. That’s why partnering with an experienced mold maker is essential for successful custom plastic parts development.

  Accurate material selection:Experts can recommend the most cost-effective and performance-driven material for your product.

  Material-process matching: Proper gating, cooling, and venting design depend on understanding the thermoplastic’s flow, shrinkage, and heat profile.

  Cost optimization: An experienced supplier can help reduce overall cost through smart tooling layouts and process controls.

  Product consistency: High-precision molds, matched with the right thermoplastic, ensure repeatable part quality—especially important for industries like medical, automotive, and electronics.

7.Conclusion

With a wide range of material properties and performance capabilities, thermoplastics continue to play a pivotal role in modern product development. Whether you’re designing lightweight automotive components, durable medical housings, or stylish consumer electronics, selecting the right thermoplastic is essential for achieving the best balance of functionality, cost, and manufacturability.

As a trusted partner in plastic injection molding, Alpine Mold brings over 23 years of experience in handling all types of thermoplastics—from general-purpose resins to advanced engineering thermoplastics like PEEK and PPS. Our expertise extends beyond mold building—we help customers choose the right materials from the very beginning to avoid costly redesigns and improve product success rates.

We support low-volume prototyping, high-volume production, and everything in between. Whether you're launching a new product or optimizing an existing one, we offer full-service mold design, manufacturing, and custom injection molding to bring your custom plastic parts to life.

Interested in exploring the best applications of thermoplastics for your next project? Contact Alpine Mold today—we’re ready to support your innovation with precision, performance, and reliability.
