How to Avoid Plastic Part Shrinkage?

When it comes to plastic manufacturing, one common challenge that engineers and manufacturers face is plastic part shrinkage. Shrinkage can lead to a variety of issues, including dimensional inaccuracies, warping, and compromised structural integrity. In this guide, we will delve into the details of plastic part shrinkage and provide you with practical techniques to avoid it effectively.

1. What is Plastic Part Shrinkage?

Plastic part shrinkage is the reduction in size of a plastic component compared to its original dimensions during the cooling phase of the molding process. It is a natural occurrence and a result of the material's response to changes in temperature. Understanding the causes of shrinkage is the first step in mitigating this issue.

2. Causes of Plastic Part Shrinkage

Material Selection: Different plastics exhibit varying degrees of shrinkage. Some materials, like polyethylene, have low shrinkage rates, while others, like polystyrene, tend to shrink more. The choice of material plays a critical role in determining the extent of shrinkage.

Temperature Variation: Temperature changes during the cooling phase of molding can cause contraction of the plastic. As the molten plastic cools and solidifies, it naturally contracts.

Cooling Rate: Rapid cooling can lead to increased shrinkage. This is because the plastic doesn't have sufficient time to settle into its final shape before hardening.

Part Design: The geometry and design of the part can influence shrinkage. Irregular shapes and non-uniform wall thickness are more susceptible to shrinkage issues.

3.Key Factors in Avoiding Shrinkage

To effectively avoid plastic part shrinkage, consider the following key factors:

3.1. Proper Material Selection

Choosing the right material is crucial. Some materials inherently have lower shrinkage rates than others. For example, polypropylene and ABS are known for their relatively low shrinkage characteristics. Conduct thorough material testing to find the best fit for your project.

3.2. Design Considerations

a. Uniform Wall Thickness

Maintain uniform wall thickness throughout the part. Uneven thickness can result in differential cooling and, consequently, uneven shrinkage. Use software tools to analyze and optimize wall thickness.

b. Draft Angles

Incorporate draft angles into your design. Draft angles allow for easier ejection of the part from the mold and reduce the likelihood of warping and distortion during cooling.

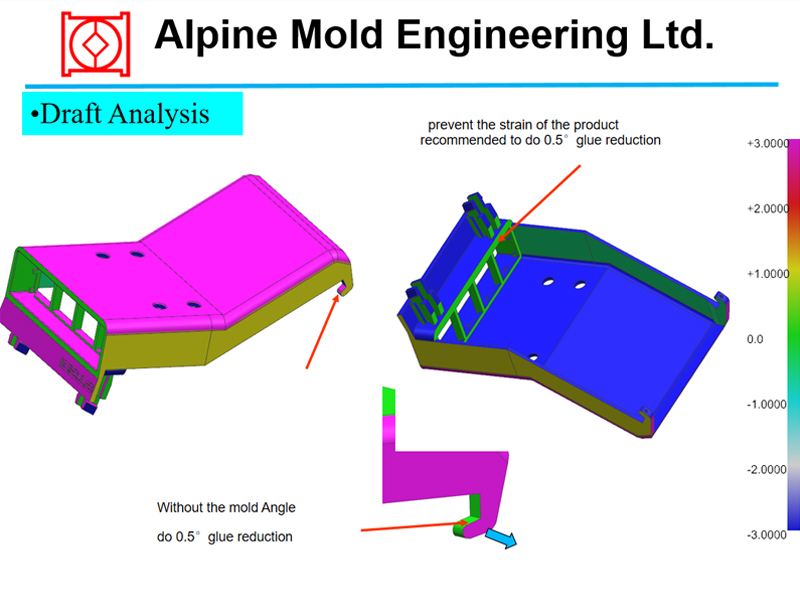

Draft Angles

Uniform Wall Thickness

3.3. Molding Process Optimization

a. Temperature Control

Precise temperature control during the molding process is critical. Monitor and adjust the mold and melt temperatures to minimize temperature differentials that can lead to shrinkage.

b. Cooling Time

Allow adequate cooling time. Rushing the cooling phase can exacerbate shrinkage issues. Follow manufacturer guidelines for cooling time recommendations.

c. Pressure Control

Maintain consistent pressure throughout the molding process. Variations in pressure can result in inconsistent shrinkage.

3.4. Injection Molding Parameters

a. Injection Speed and Pressure

Optimize injection speed and pressure settings. High injection speeds can introduce additional stress and lead to shrinkage, so find the right balance.

b. Injection Temperature

Monitor and control the injection temperature. Avoid excessive heating, which can cause premature cooling and increased shrinkage.

c. Gas-Assisted Injection Molding

Consider gas-assisted injection molding (GAIM) for reducing shrinkage. GAIM involves injecting a gas (usually nitrogen) into the molten plastic to create hollow sections, reducing material usage and shrinkage.

3.5. Post-Processing Techniques

After molding, consider post-processing techniques to further reduce shrinkage:

a. Annealing

Annealing involves heating the plastic part to a specific temperature and then slowly cooling it. This process relieves internal stresses, reducing shrinkage and improving dimensional stability.

b. Stress Relief

Stress relief processes can reduce internal stresses in the plastic, minimizing the risk of shrinkage. Techniques like vibration stress relief and infrared stress relief are commonly used.

4. Practical Tips for Minimizing Shrinkage

Prototype and Test: Always create prototypes and test different parameters before mass production. This allows you to fine-tune your process to minimize shrinkage.

Stay Informed: Keep up with the latest advancements in materials and manufacturing techniques. New materials with lower shrinkage rates may become available, and new technologies can help mitigate shrinkage.

Consult Experts: If you're facing persistent shrinkage issues, don't hesitate to consult with experts in plastic manufacturing. They can provide valuable insights and solutions based on their experience.

5.Conclusion

Plastic part shrinkage is a common challenge in manufacturing, but it can be effectively mitigated through a combination of material selection, thoughtful design, and precise process control. By understanding the causes of shrinkage and implementing the key factors discussed in this guide, manufacturers can produce high-quality plastic parts with minimal shrinkage issues. Stay proactive, continuously test and optimize your processes, and stay informed about the latest developments in the field to achieve the best results in avoiding plastic part shrinkage.
