How To Ensure The Quality of Injection Molding Products?

Table of Contents

1. Preliminary Preparations

2. Process Parameter Control

3. Production Process Management

4. Quality Inspection and Control

5. Common Issues and Solutions

6. Continuous Improvement

In the plastic manufacturing industry, injection molding is one of the most commonly used yet complex processing methods. As a plastic mold manufacturer with 23 years of rich experience, Alpine Mold understands that ensuring the quality of injection molding products requires strict control at multiple stages. This article will detail how to ensure high-quality injection molding products through systematic management and control.

1. Preliminary Preparations

According to Alpine Mold's years of practical experience, preliminary preparations are the first line of defense in ensuring product quality. Scientific and reasonable preparation can prevent up to 85% of quality issues.

Selection and Inspection of Raw Materials

Choosing suitable raw materials is crucial for product quality. When selecting raw materials, it is essential to determine the appropriate types and properties of plastics based on the functional requirements and usage environment of the product, such as heat resistance, toughness, or aging resistance. Additionally, raw materials must undergo strict quality inspections, including testing for particle size, flowability, moisture content, and impurity levels to ensure stable physical and chemical properties during processing. Below are the strict raw material inspection standards established by Alpine Mold:

Inspection Item	Standard Requirement	Inspection Frequency	Influencing Factors
Moisture Content	≤0.05%	Each batch	Strength, Appearance
Melt Index	±10%	Each batch	Flowability, Molding Ability
Impurity Content	≤0.01%	Each batch	Appearance, Performance
Color Difference	ΔE≤0.5	Each batch	Product Appearance

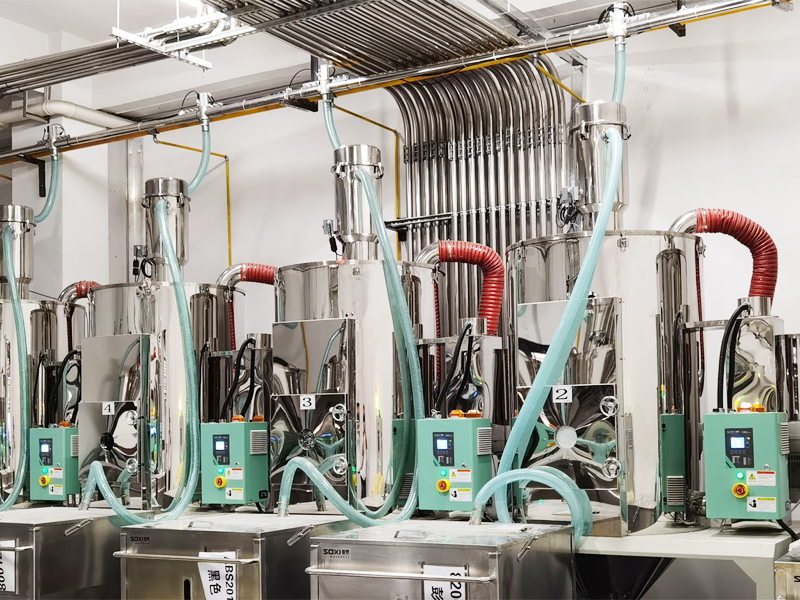

Material Pre-treatment Processes

Alpine Mold places particular emphasis on the material pre-treatment stage:

• Drying Process: Uses a dehumidifying drying system with temperature precisely controlled within ±1°C.

• Dehumidification Time: Precisely controlled between 4-8 hours based on material characteristics.

• Storage Conditions: Constant temperature and humidity environment at 23±2°C, relative humidity 45-55%.

Mold Design and Manufacturing Quality Management

Alpine Mold has a professional engineering team with over 10 years of experience, employing advanced mold design concepts to ensure mold quality:

• Mold Design Precision: Tolerance controlled within ±0.02mm.

• Mold Life: Standard molds last for over 1 million injection cycles.

• Cooling System Efficiency: Cooling time reduced by 30% compared to traditional designs.

• Hot Runner System: Uses imported high-precision temperature control with an accuracy of ±0.1°C.

2. Process Parameter Control

At Alpine Mold, our injection molding adjustment supervisors have over 20 years of experience in handling various materials and product structures. Through an experienced technical team and strict process management system, we ensure precise control of injection process parameters:

Parameter Type	Control Range	Accuracy Requirement	Monitoring Frequency
Barrel Temperature	180-380°C	±2°C	Hourly checks
Mold Temperature	20-120°C	±1°C	Hourly checks
Injection Pressure	50-200MPa	±1MPa	Each batch chec
Holding Time	1-30s	±0.1s	Each batch check

Process Parameter Management Measures

• Establish a complete record archive of process parameters.

• Regular checks and records by professional technical personnel.

• Periodic evaluation and optimization of process parameters.

• Establish standardized parameter adjustment processes.

3. Production Process Management

Alpine Mold implements a full-process quality management system, with data showing:

• Operator training pass rate of 99.5%.

• Production environment temperature controlled at 23±2°C.

• Humidity maintained at 45-55% RH.

• Workshop cleanliness reaching a class 100,000 standard.

Production Process Monitoring

Utilizes an advanced MES system for production management:

• Real-time collection and analysis of production data.

• Product quality traceability system.

• Equipment preventive maintenance reminders.

• Intelligent scheduling of production plans.

4. Quality Inspection and Control

Alpine Mold has passed ISO 9001 quality management system certification and IATF 16949 qualification, establishing a complete quality management system, equipped with imported German Zeiss coordinate measuring equipment with a detection accuracy of up to 0.001mm. We invite professional equipment calibration technicians for routine annual inspections of our measuring equipment to ensure precision.

Inspection Item	Inspection Content	Pass Standard	Inspection Frequency	Inspection Method
Appearance Check	Check if there are defects on the product surface, such as gas marks, shrinkage, warping, flash, or impurities.	No visible defects	100% inspection	Visual + Instrumental
Dimension Check	Check if key dimensions of the product meet design tolerance range	±0.05mm	Each batch sampling	3D scanning
Weight Check	Applicable to mass-produced products. Significant weight deviation may indicate insufficient injection, abnormal melt flow, or uneven mold filling.	±2%	Hourly sampling	Precision balance
Performance Testin	Mainly includes testing indicators such as tensile strength, impact strength, and flexural strength.	Meets drawing requirements	Each batch	Specialized equipment

5. Common Issues and Solutions

In injection molding production, common quality issues may arise from equipment, process parameters, mold design, or raw material selection. Through systematic defect analysis, process adjustments, and preventive maintenance, problems can be effectively solved, and product quality improved.

Product Defect Analysis

Common injection molding product defects include, but are not limited to:

· Flash: Excess plastic at the product edge may be caused by inadequate mold closure, excessive injection pressure, or insufficient clamping force.

· Sink Marks: Indentations on the product surface are usually related to uneven cooling of material, excessive mold temperature, or insufficient holding time.

· Bubbles: Bubbles appearing on or inside the product may be due to moisture in the melt, too fast injection speed, or insufficient mold venting.

· Warping: Deformation of product shape is often caused by uneven cooling, unreasonable mold design, or improper stress release.

· Surface Defects: Such as gas marks, weld lines, and burns, may be due to improper injection speed, temperature, or mold runner design.

Process Adjustment Measures

To address product defects, adjusting process parameters can significantly alleviate issues:

· Flash: Appropriately reduce injection pressure or clamping force and check the mold closure to ensure precise mold matching.

· Sink Marks: Increase holding pressure and time while optimizing mold cooling design, such as increasing the density of cooling water channels.

· Bubbles: Thoroughly dry raw materials, reduce injection speed, and improve mold venting systems.

· Warping: Optimize mold cooling speed, enhance the uniformity design of the mold cavity, and appropriately adjust process parameters for stress release.

· Surface Defects: Reduce injection speed, optimize mold runner design, or adjust the temperature distribution of the barrel and mold.

Preventive Maintenance

Preventive maintenance is key to avoiding recurring quality issues. Regular maintenance of equipment, molds, and production environments can eliminate potential risks from the source:

• Equipment Maintenance: Regularly check the injection machine's screw, barrel, hydraulic systems, and electrical components to ensure stable equipment operation.

• Mold Maintenance: Regularly clean and inspect molds, especially the vent holes, flow channels, and cavity wear, and promptly repair any issues found.

• Environmental Maintenance: Maintain cleanliness in the production environment to avoid contamination of raw materials and molds by dust, particles, or impurities, ensuring stable production conditions.

By comprehensively applying product defect analysis, process adjustments, and preventive maintenance measures, the production quality of injection molding products can be effectively improved. Systematic management and continuous improvement can not only reduce the scrap rate but also enhance production efficiency and customer satisfaction.

6. Continuous Improvement

In injection molding production, continuous improvement is the core strategy for enhancing production efficiency, reducing costs, and ensuring product quality. Through data-driven optimization, process standardization, and the enhancement of quality management systems, stable high-quality production can be achieved, continually meeting customer demands.

Data Analysis and Optimization

By collecting and analyzing data from the production process, weak links can be accurately identified, and production processes can be continuously optimized.

• Production Data Collection: Record key process parameters (such as temperature, pressure, time) and equipment operating states, material batches, etc., for each production batch, forming a complete production database.

• Data Analysis: Use statistical tools or specialized software (such as SPC or MES systems) to analyze the relationship between process parameters and product quality, identify abnormal trends or potential issues. For example, analyze the distribution patterns of non-conforming products to determine if they are related to mold wear, raw material fluctuations, etc.

• Optimization Measures: Based on analysis results, adjust production processes, such as optimizing injection speed, cooling time, or mold design, fundamentally reducing defect occurrence rates.

Process Standardization

Process standardization is the foundation for ensuring consistent product quality across different batches and operators.

• Standard Process Flow: Establish detailed standard process parameters for each product, including injection temperature, mold temperature, injection speed, holding time, etc., ensuring strict adherence to established standards for each production run.

• Documented Operating Specifications: Document standard operating procedures (SOPs) and provide clear operational guidance to operators, keeping every step under control.

• Automation and Intelligence: Introduce automated equipment or intelligent control systems (such as closed-loop control) to reduce the impact of human intervention on product quality, further enhancing process stability.

Quality Management System Enhancement

Enhancing the quality management system is an effective mechanism for continuous improvement, covering all aspects of production.

• Problem Feedback Mechanism: Establish a rapid response mechanism for quality issues; once defects are identified, swiftly locate the source of the problem and take corrective and preventive measures.

• Internal Audits and Evaluations: Regularly conduct internal audits of production processes, process parameters, and quality management systems to assess their effectiveness and identify areas for improvement.

• Customer Demand Orientation: Continuously adjust and enhance the quality management system based on customer feedback, ensuring products meet the latest customer requirements and industry standards.

Conclusion

Through the 23 years of accumulated experience and data at Alpine Mold, it is evident that quality control in injection molding products is a system engineering task requiring precise control. We continuously provide customers with high-quality mold solutions through advanced equipment, a strict quality management system, and a professional technical team. In the context of Industry 4.0, Alpine Mold will continue to innovate and optimize, providing customers with even better products and services.
