In the process of mold manufacturing and plastic product production, the injection molding machine is one of the most critical pieces of equipment. Choosing the right injection molding machine not only improves production efficiency but also ensures product quality and reduces operating costs. However, with the wide variety of injection molding machines available on the market, how do you select the most suitable one for your project? This article provides comprehensive guidance on this topic, covering the basics of injection molding machines, their main types, selection factors, industry-specific recommendations, and more.
1. Basic Introduction to Injection Molding Machines

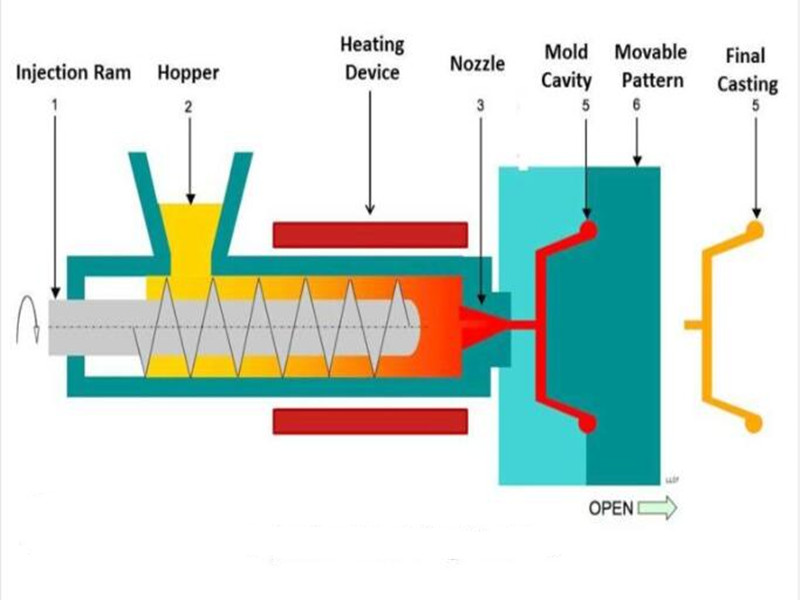

1.1 Definition and Working Principle
An injection molding machine is equipment that manufactures various plastic products by heating, melting, injecting, cooling, and molding thermoplastic or thermosetting plastics. Its working process typically includes the following steps:
Plasticizing: Heating plastic pellets until they melt.
Injection: Injecting the molten plastic into a mold under high pressure.
Cooling: Cooling and solidifying the plastic inside the mold.
Ejection: Opening the mold and removing the molded plastic product.
1.2 Importance of Injection Molding Machines in Mold Manufacturing
Injection molding machines are central to mold manufacturing, directly affecting product quality, production efficiency, and costs. Selecting the right injection molding machine ensures the realization of mold design, meets product precision requirements, improves production efficiency, and reduces waste.
Comparison Criteria | All-Electric Injection Molding Machine | Hydraulic Injection Molding Machine | Hybrid Injection Molding Machine |
Working Principle | Driven by servo motors, offering high-precision control without a hydraulic system. | Powered by a hydraulic system where hydraulic oil drives injection and clamping. | Combines electric and hydraulic systems, where the electric part provides precision control, and the hydraulic part meets high-pressure demands. |
Advantages | - High precision with servo motor control and excellent repeatability. - Energy-efficient and quiet operation. - Environmentally friendly with no hydraulic oil, reducing pollution. - Low maintenance costs due to the absence of a hydraulic system. | - High injection pressure, suitable for large or thick-walled products. - Lower initial cost. - Versatile: capable of handling various materials. | - Balances energy efficiency and performance: electric parts save energy, hydraulic parts provide high pressure. - Suitable for medium precision and output needs. |
Disadvantages | - High initial cost: more expensive equipment. - Limited injection pressure, unsuitable for large or thick-walled products. | - High energy consumption: hydraulic systems consume a lot of power. - High maintenance cost: requires regular replacement of hydraulic oil and seals. - Noisy operation due to hydraulic systems. | - Higher cost compared to others: falls between all-electric and hydraulic systems. - More complex maintenance: both electrical and hydraulic systems require upkeep. |
Applications | - High-precision products like medical devices, optical components, and electronics. - Low-volume production of high-value products. | - Large products like automotive parts and appliance housings. - Thick-walled products requiring high injection pressures. - High-volume production with lower precision demands. | - Medium precision products like household appliances and packaging materials. - Medium output needs where cost and precision are balanced. |
Applicable Materials | - Suitable for high-precision, low-viscosity materials like PC, PMMA, and ABS. | - Suitable for various materials, including high-viscosity materials like PP, PE, and PA. | - Suitable for medium-viscosity materials like ABS, PC, and PP. |
Energy Consumption | Lowest energy consumption, highly energy efficient. | Highest energy consumption due to the hydraulic system. | Moderate energy consumption: electric parts save energy, hydraulic parts consume power. |
Maintenance | Simple maintenance with no hydraulic system, low failure rate. | Complex maintenance requiring regular hydraulic oil and seal replacement. | Moderate maintenance: both electric and hydraulic systems require regular checks. |
Typical Applications | - Medical devices: syringes, surgical tools. - Electronics: phone cases, connectors. | - Automotive parts: bumpers, dashboards. - Daily items: plastic buckets, chairs. | - Household appliances: washing machine panels, refrigerator components. - Packaging materials: bottle caps, containers. |
3.1 Product Characteristics
Product Size and Weight: Large or heavy products require greater injection pressure and clamping force, typically favoring hydraulic injection molding machines.
Material Type: Different plastic materials (e.g., melting point, flowability, shrinkage rate) affect machine selection. For instance, high-performance engineering plastics require higher heating temperatures and injection pressures, demanding strong plasticizing capabilities and stable temperature control systems.
Precision Requirements: High-precision products (e.g., medical devices, optical products, or electronic components) are best produced with all-electric machines due to their precise injection control and repeatability. For less precise large products, hydraulic machines are more economical and practical.
3.2 Production Capacity
Output Requirements: High-volume production of high-quality products may benefit from hybrid or all-electric machines due to their speed and stability. For lower-capacity projects, hydraulic machines may offer better cost efficiency.
Production Cycle: Projects with short production cycles benefit from fast-response all-electric machines, while hydraulic or hybrid machines balance efficiency and cost for longer cycles.
Automation Level: Projects requiring high automation, such as robotic handling or multi-station operations, are better suited to all-electric or hybrid machines, which integrate seamlessly with automation equipment.
3.3 Economic Factors
Equipment Investment Cost
Companies should evaluate equipment costs based on their budget. All-electric machines are usually more expensive but offset their high initial investment with energy efficiency and low maintenance costs. Hydraulic machines, with lower purchase costs, are popular among small and medium-sized enterprises.
Operating Costs
Energy consumption is a key part of operating costs. All-electric machines consume less energy, while hydraulic machines consume more, increasing long-term costs. Hybrid machines offer a middle ground.
Maintenance Costs
Maintenance costs include repairs and part replacements. Hydraulic machines require regular oil changes and system maintenance, leading to higher costs. All-electric machines have lower maintenance requirements but may incur higher costs if key components fail. Hybrid machines' maintenance costs vary depending on the proportion of hydraulic and electric systems.
4.1 Automotive Parts Industry

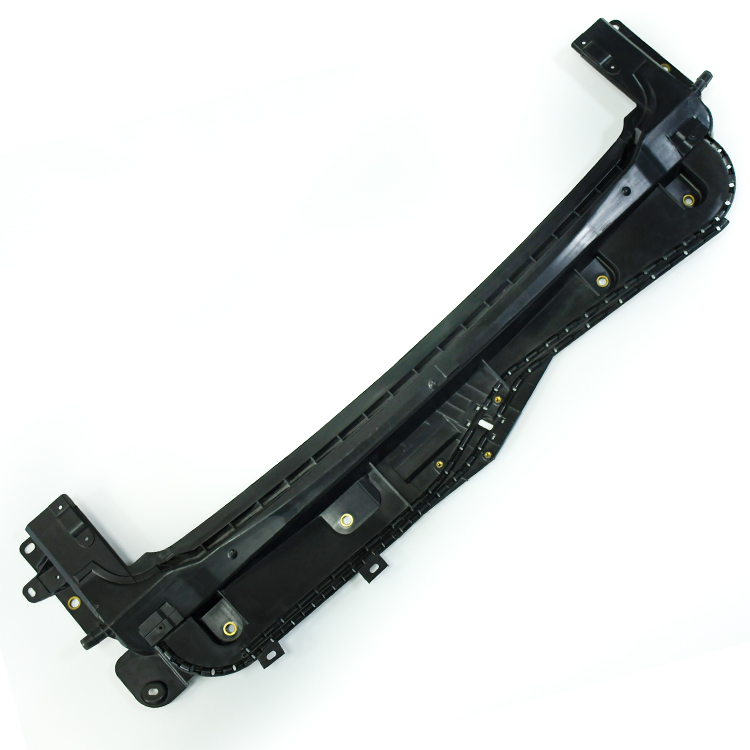

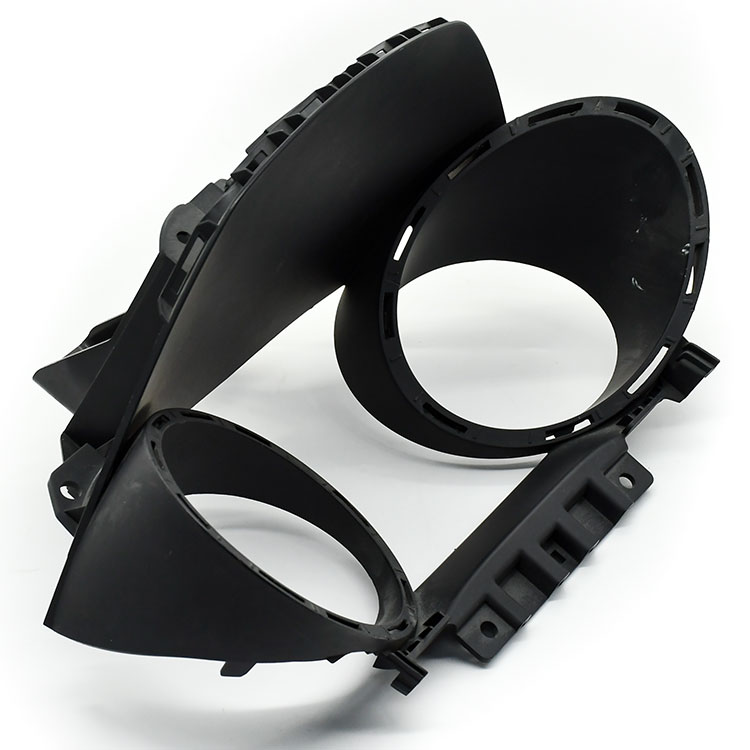

Characteristics and Needs: Automotive parts are often large, complex, and require high mechanical performance and dimensional accuracy. Products like bumpers, dashboards, and light brackets need high clamping force and injection volume. Production efficiency and batch consistency are also critical in the automotive sector.
Recommended Machine: Hydraulic or hybrid machines are ideal for automotive parts. Hydraulic machines provide strong clamping force for large parts, while hybrids reduce energy consumption and improve efficiency. For small, high-precision automotive electronics, all-electric machines can meet accuracy requirements.
 |  |  |
4.2 Electronics Industry

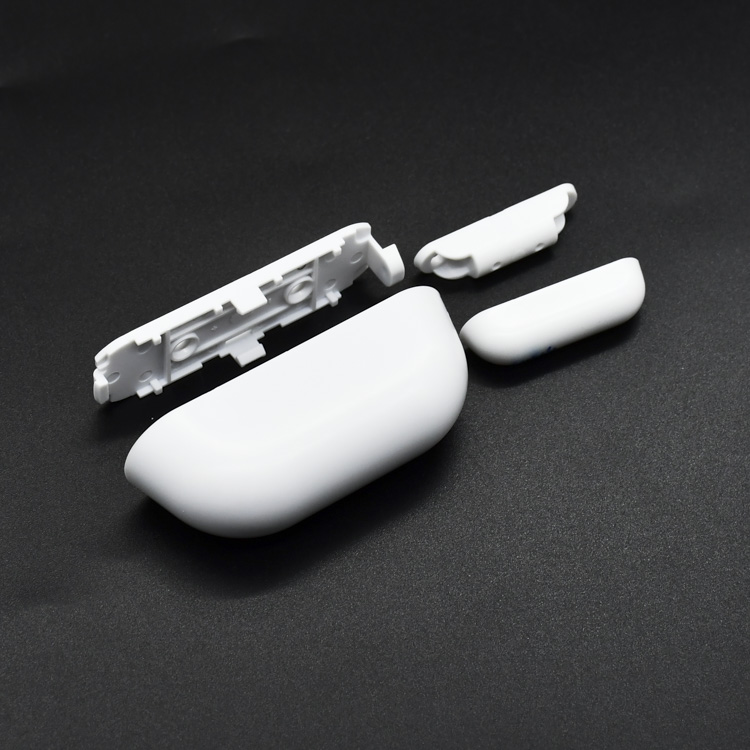

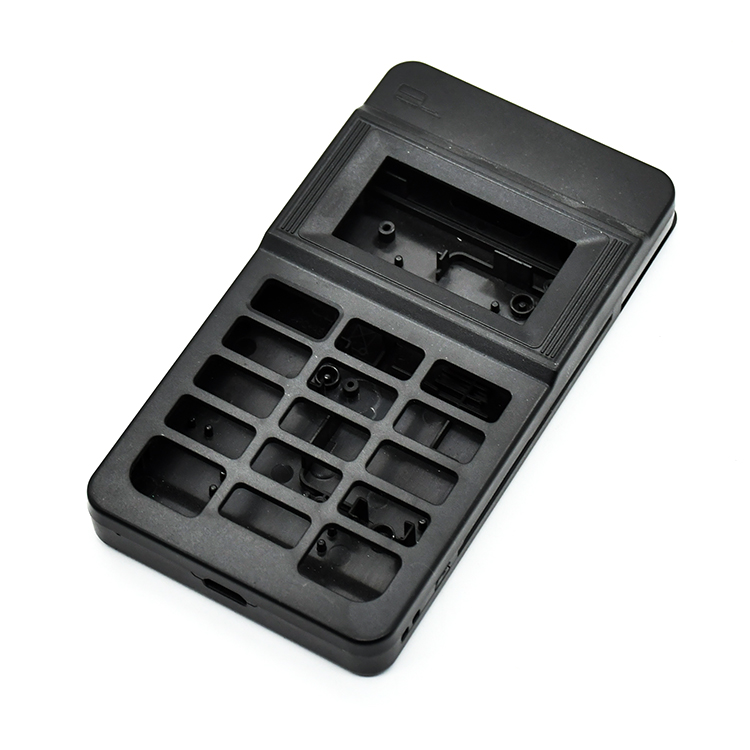

Characteristics and Needs: Small, precise plastic parts dominate the electronics industry. Products like phone cases, connectors, and keyboards require high precision and stability. Short production cycles are also critical to adapt to rapid market changes.
Recommended Machine: All-electric machines are ideal for electronics due to their precise injection control and stability. They also reduce production cycles, improving efficiency. Hybrid machines offer high efficiency and precision for high-capacity projects.
 |  |  |
4.3 Medical Device Industry

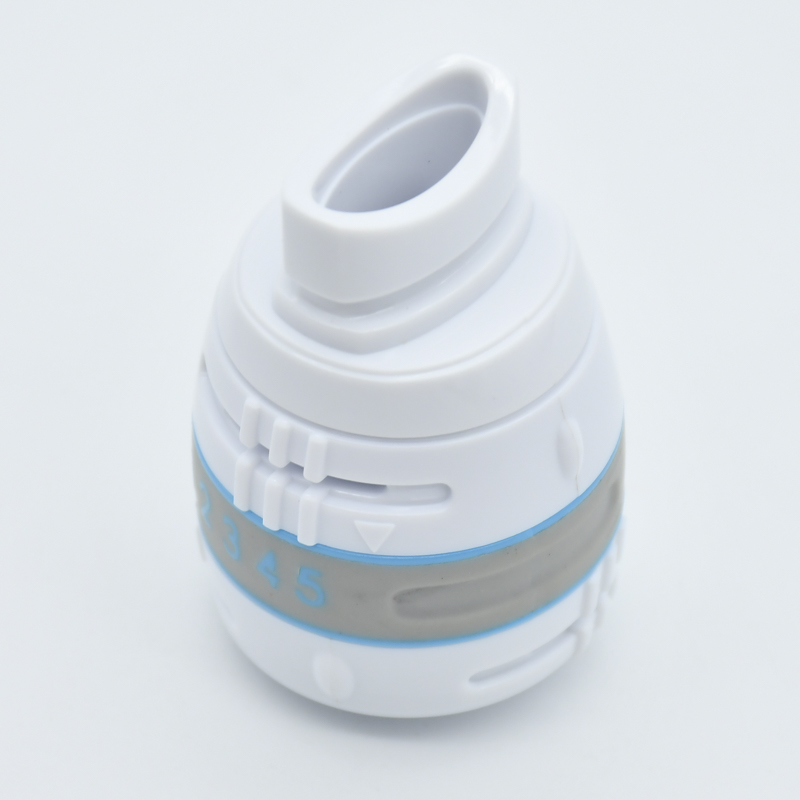

Characteristics and Needs: Medical products must meet strict hygiene and quality standards. These small, complex items (e.g., syringes, catheters, test tubes) require high precision and smooth surfaces, with production environments needing to be clean and contamination-free.
Recommended Machine: All-electric machines are the best choice for medical devices since they operate without hydraulic oil contamination, ensuring clean production while offering high precision and stability.
 |  |  |
4.4 Consumer Goods Industry
Characteristics and Needs: Consumer goods include items like containers, kitchenware, toys, and household tools. These products prioritize production efficiency and cost control over precision.
Recommended Machine: Hydraulic machines are the top choice due to their adaptability and lower costs. For higher efficiency or energy-saving needs, hybrid machines are a good alternative. For high-quality, small-sized consumer goods, all-electric machines may also be used.
5.1 Technical Evaluation
Clamping Force: Ensure sufficient clamping force for mold closure to avoid flash while avoiding excessive force that increases equipment costs.
Injection Volume and Speed: Match the product size and complexity to the machine's injection volume and speed.
Plasticizing Capability: Evaluate the machine's ability to handle different plastic materials with precise temperature control.
Energy Efficiency: Choose machines with lower energy consumption for better cost control.
5.2 Manufacturer Selection
Reputation: Choose reputable brands with proven performance and customer satisfaction.
Technical Support: Ensure the manufacturer offers comprehensive technical support, including installation, training, and maintenance.
Parts Availability: Confirm the manufacturer can supply parts promptly to prevent downtime.
5.3 Cost-Effectiveness Analysis
Equipment Investment vs. Returns: Compare purchase costs with expected production benefits.
Lifecycle Cost: Assess total costs, including maintenance and operating costs, over the machine's lifespan.
6.1 Common Mistakes
Focusing Only on Price: Ignoring performance for lower upfront costs can result in long-term inefficiencies.
Underestimating Clamping Force and Injection Volume: Can lead to product defects or equipment failure.
Over-Configuring: Choosing high-end machines unnecessarily increases costs.
6.2 How to Avoid Mistakes
Understand production requirements clearly.
Evaluate lifecycle costs, not just purchase price.
Choosing the right injection molding machine is key to ensuring production efficiency and product quality. By understanding the basic types of injection molding machines, selection factors, and industry needs, you can make more informed decisions. Here are the critical steps for selecting an injection molding machine:
Clarify product requirements: including dimensions, materials, precision, etc.
Evaluate production needs: including capacity, production cycle, and automation level.
Consider economic factors: including equipment investment, operating costs, and maintenance costs.
